WEDGE SLIM DARK

WEDGE SLIM DARK

Become a Partner to view prices
Skip to product information
WEDGE SLIM DARK
  • WEDGE SLIM DARK
  • WEDGE SLIM DARK
  • WEDGE SLIM DARK
  • WEDGE SLIM DARK
  • WEDGE SLIM DARK
  • WEDGE SLIM DARK
  • WEDGE SLIM DARK
WEDGE SLIM DARK

WEDGE SLIM DARK

Become a Partner to view prices
Shipping calculated at checkout.
The WEDGE SLIM DARK is a slim wall fixture with a wide light beam that is perfect for use as directional lighting on, for example, low walls or along driveways or paths.The EASY-LOCK is supplied as standard with this luminaire. The cable length on this luminaire is 60 cm.Tip: Think of an extension cable
  • Produces a wide and attractive downward light
  • Designed for illuminating a low fence or wall
  • Available in three sizes
Installation advice:

A WEDGE SLIM every 2 to 2½ meters at a height of 1 to 1.6 meters
PRODUCT DETAILS

The WEDGE SLIM DARK is a slim wall fixture with a wide light beam that is perfect for use as directional lighting on, for example, low walls or along driveways or paths.
PRODUCT SPECS

Art. nr.: 10301770

Application: Canopy, Facade, Fence/wall

CRI: 96

Color: Dark Grey

EAN code: 8717051004001

Energy label: G

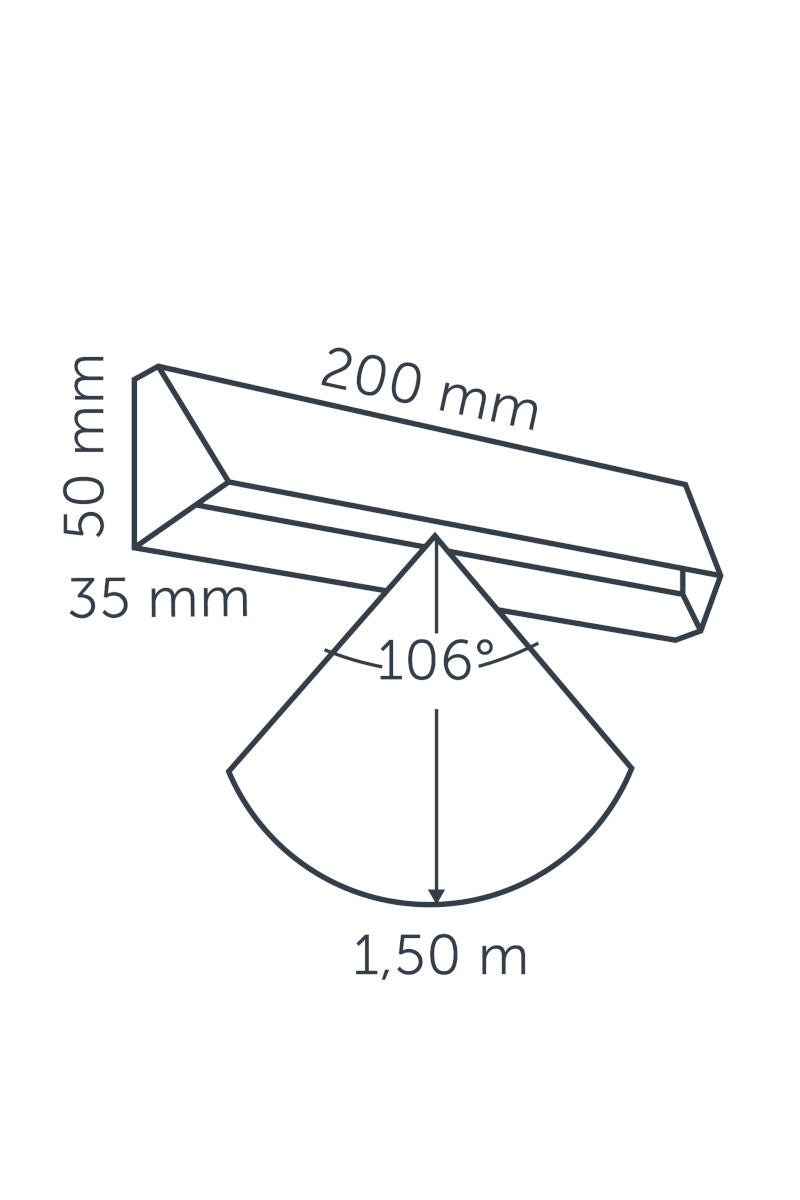

Height (inch): 1.9685

Height (mm): 50

IP class: 55

Length (inch): 1.378

Length (mm): 35

Light direction: Downward

Types of Light: Direct

Efficiency (Lumen/Watt): 36

Net luminous flux (Lumen): 36

Power [W]: 1

Article group: Wall lights

Voltage: 12 volt

VA value: 1

Width (inch): 7.874

Width (mm): 200

Color temperature: 2800

Luminous intensity [Cd]: 16.7

Power factor: 1
INSTALLATION INSTRUCTIONS

Simple mounting with supplied screws and plugs. Preferably mount the wall fixture below eye level (maximum height about 1.50m), otherwise there is too much insight into the light source.

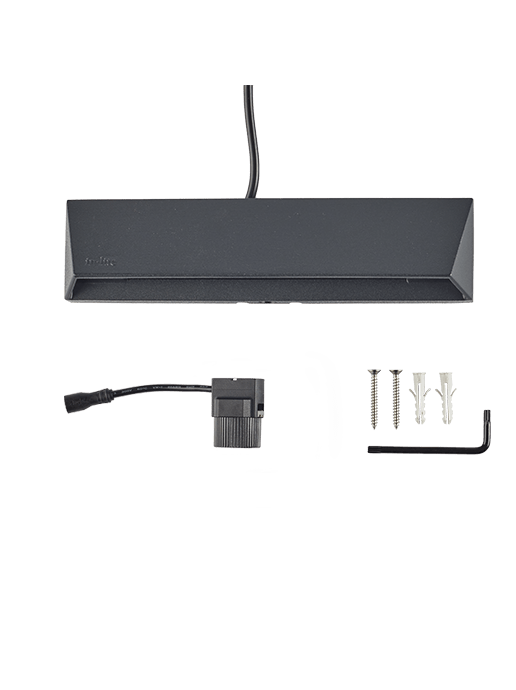

Included in Package

  • 1x EASY LOCK
  • 60 cm Fixture cable
  • 2x Screw
  • 2x Nylon plug
  • 1x Torx wrench
