HOW IT WORKS
The system consists of four essential components: the transformer, cable, luminaires and accessories such as the EASY-LOCK, which connects the luminaires to the cable.
Installation is simple and can be done in four steps: place transformer, unroll cable, position luminaires and connect via the EASY-LOCK. The system does not have to form a closed circuit; the cable can end at any location using cover caps (CABLE CAPS)
BENEFITS OF LOW VOLTAGE
Low-voltage (12-volt) outdoor lighting offers the main advantage of safety: you can touch the wires without risk of shock. Because of this safe voltage, no special cables need to be buried deep, making installation easier. You can therefore easily install the In-lite system yourself or have it installed by a landscaper.
Low voltage is energy-efficient and sustainable, ensuring lower electricity costs.
SMART LIGHTING SYSTEM

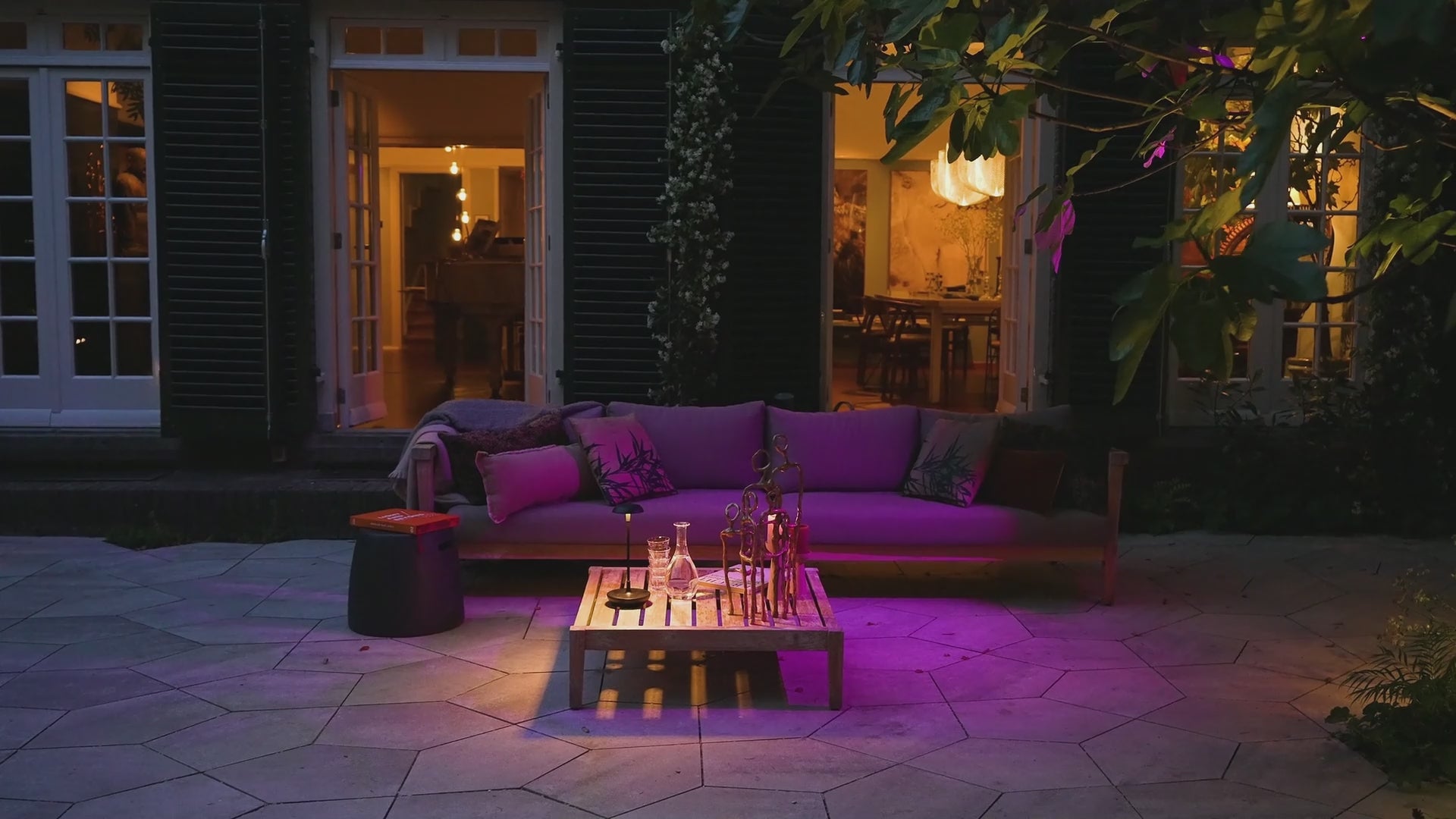

With In-lite TONE fixtures, such as SMART SCOPE TONE, you add extra atmosphere to your outdoor area. Choose not just warm white, but colour instead - perfectly tailored to every moment. Take a look at SMART EVO FLEX TONE, for example: a flexible LED strip with colour light, individually controlled via the In-lite app. Smart, stylish, simple and ultimate ease of use.
THE ADVANTAGE OF THE IN-LITE SMART SYSTEM
1. OPERATES ON LOW VOLTAGE
Easy to install, safe for humans and animals, never causes short circuits in your fuse box
2. WORKS WITH BLUETOOTH AND WIFI
Control your system with Bluetooth, or via the internet and your Home Automation system when purchasing a SMART BRIDGE
3. SIMPLICITY
Simplicity is in our DNA. From installation to operation, anyone can do it!
4. FUTURE-ORIENTED
With the In-lite Smart system, you're ready for all future developments, from Smart lamps to Home Automation.
MORE INFORMATION?
TRANSFORMERS
The innovative In-lite lighting system is characterized by the use of safe 12 volt low voltage. The special transformer converts regular 230 volt mains power from the wall outlet to this low voltage. This offers significant safety advantages during installation and use, as there is no risk of serious electric shocks when touching wires.
CABLES
The special In-lite cables are available in two variants: the 14/2 cable for distances up to 40 meters and the 10/2 cable for larger gardens up to 80 meters. Thanks to the smart cable connectors and the user-friendly EASY-LOCK system, you can install your own garden lighting without technical knowledge.
ACCESSORIES

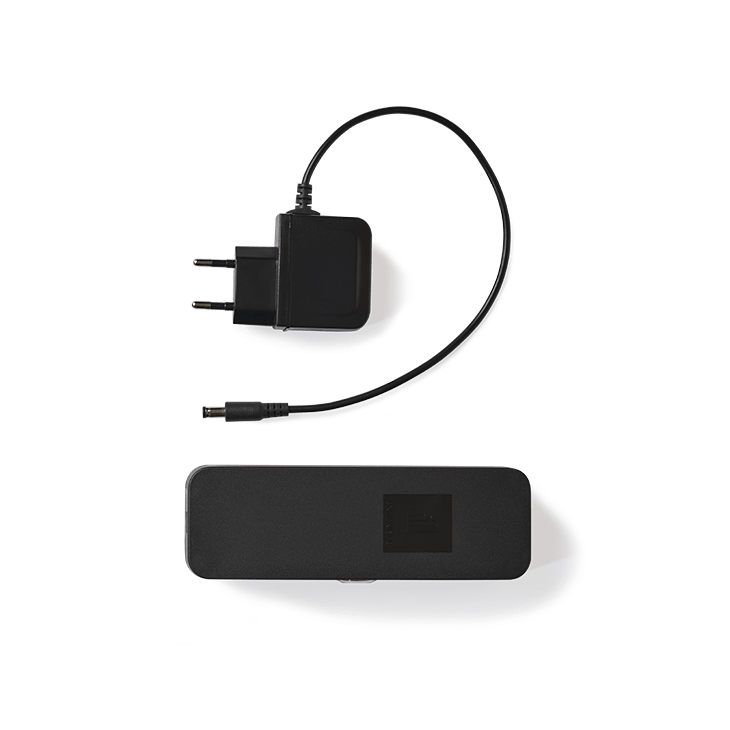

With In-lite accessories, you can complete your system. With HUB PROTECTOR, you protect your transformer against weather conditions. Or use our smart motion sensor to add extra value to your lighting system. Additionally, we offer accessories to make your system even smarter, such as SMART BRIDGE, an accessory for connecting with Smart Home systems.
INSTALL IN 5 EASY STEPS
CHOOSE YOUR TRANSFORMER

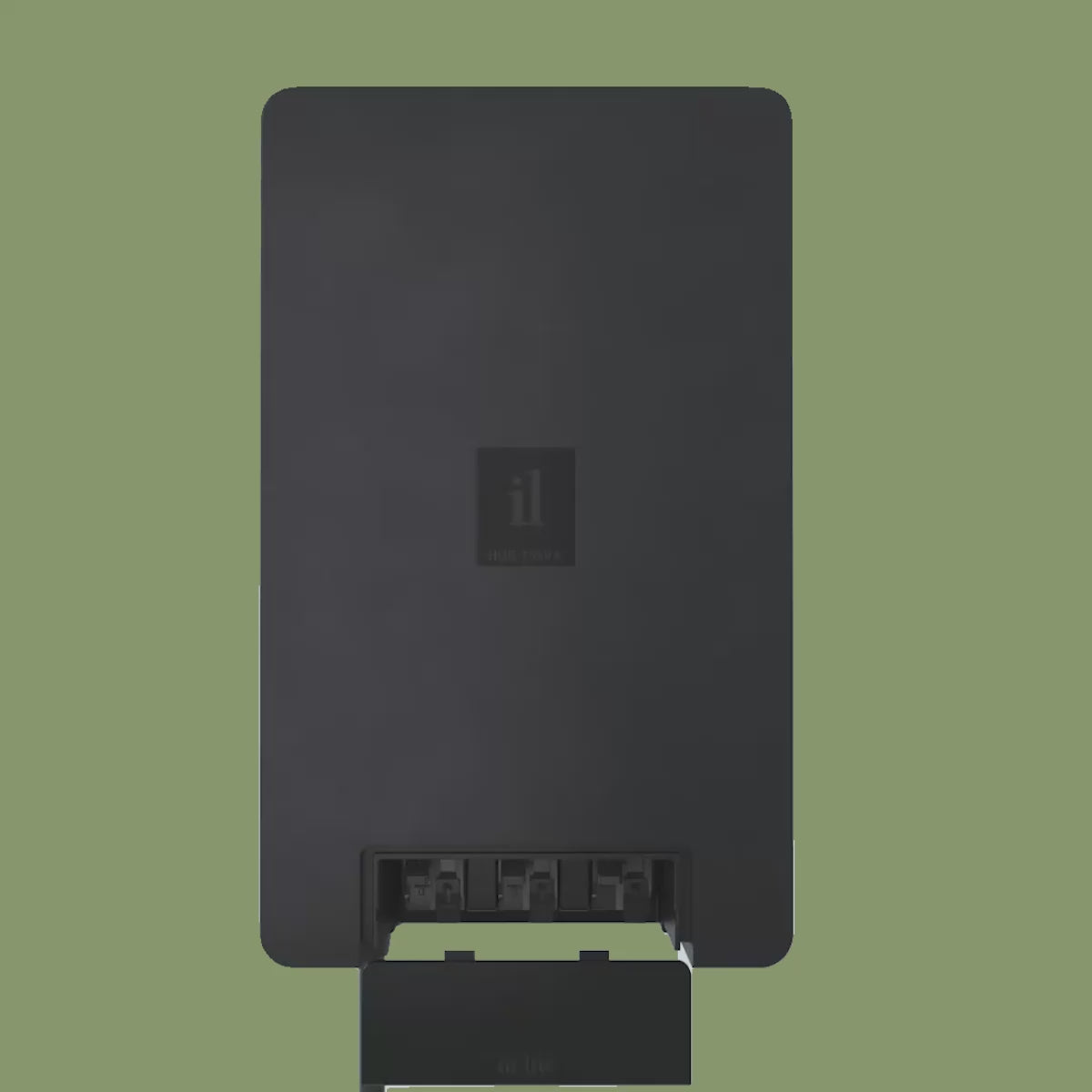

SMART HUB
With In-lite SMART HUBs, you control the lighting through the In-lite app. SMART HUBs have multiple lines for individual control, work on the astronomical clock, and can have up to 300VA of fixtures connected. All lamps, including In-lite Smart fixtures, can be installed on SMART HUBs.
- OR -
CHOOSE YOUR TRANSFORMER

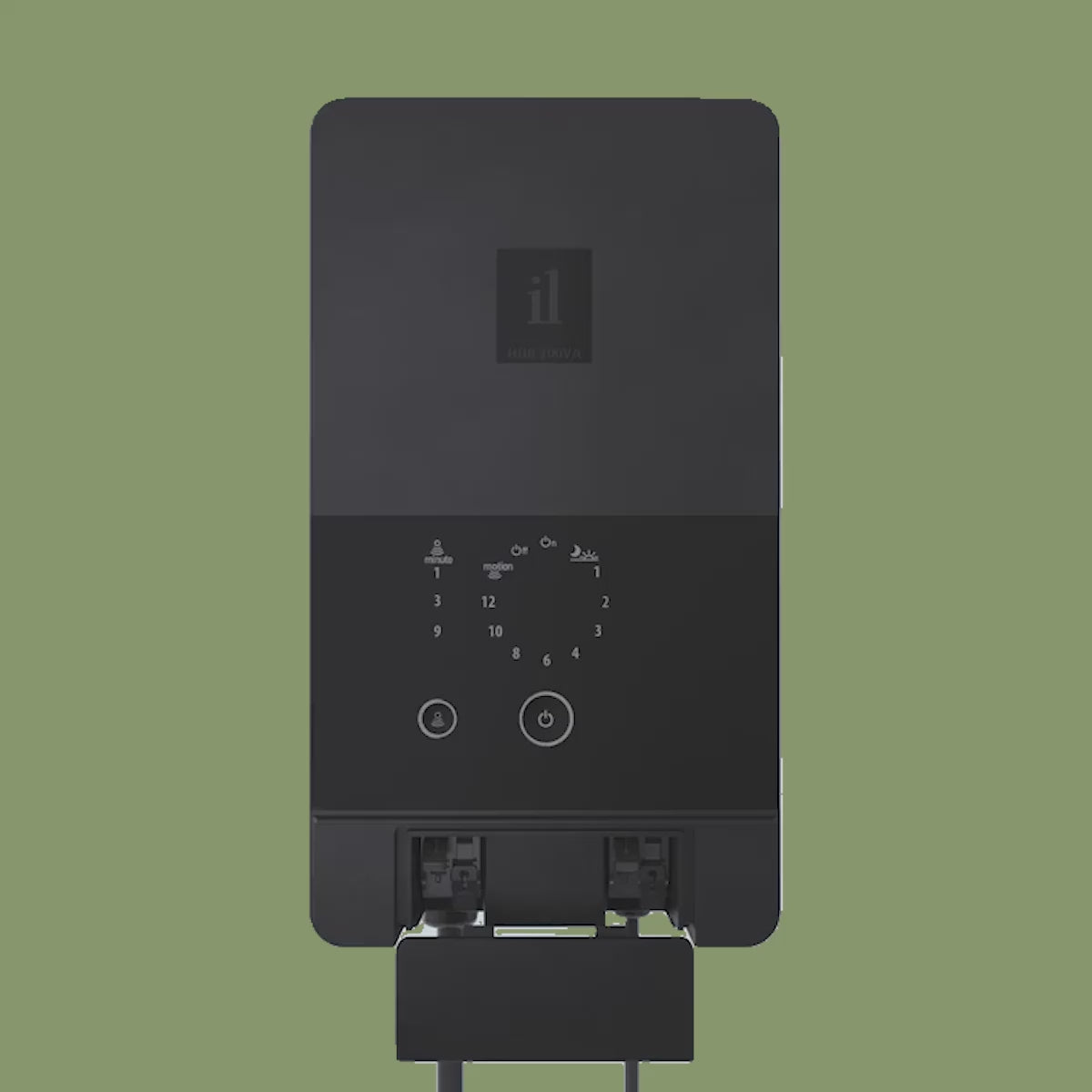

CONVENTIONAL

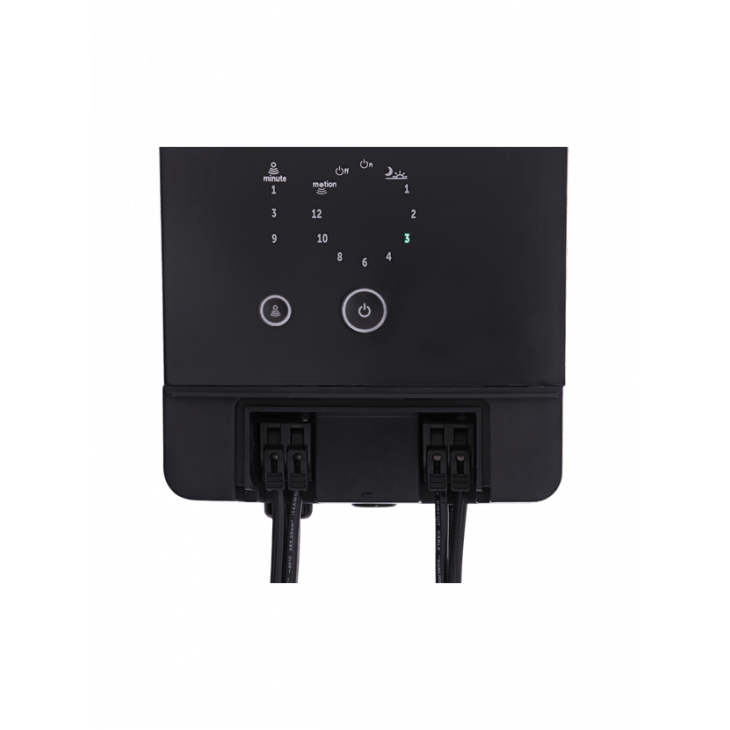

The HUB-100 works on a time switch and can be used together with a MOVE motion sensor. The HUB-100 has two cable outputs, which are easily controlled via the buttons. You can connect up to 100 VA of luminaires to a single HUB-100, except for Smart fixtures .These only work with SMART HUBs.
Decide your garden size and
CHOOSE YOUR CABLE

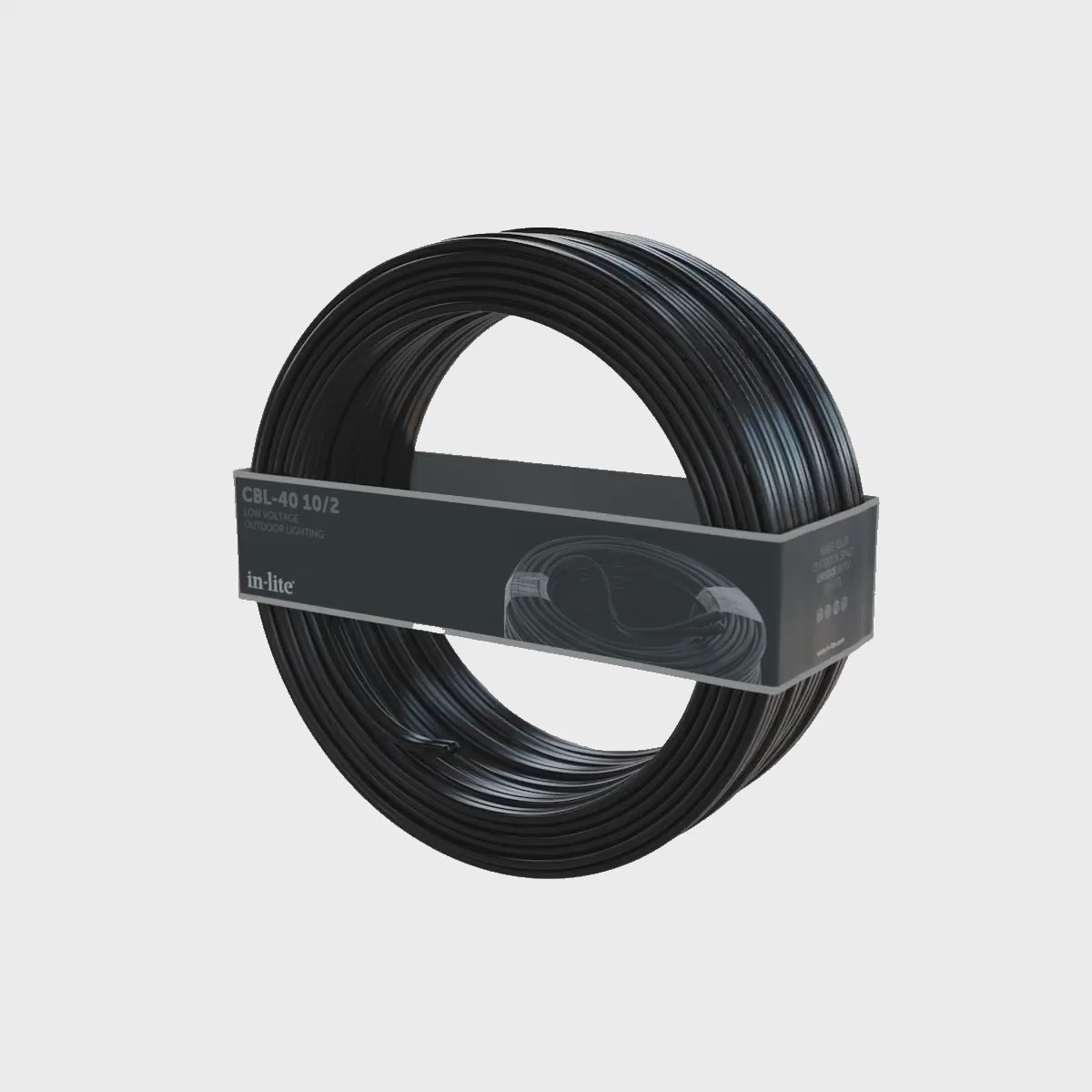

In your garden, you can work with two types of cables. The thin 14/2 cable, suitable for shorter distances up to 40m, and the thick 10/2 cable, suitable for longer distances up to 80m. All In-lite cables are suitable for the HUBs and SMART HUB-150. And if you want to create a split in your garden cable line, you can easily do this with the CC-2 cable connector splitting accessorie.
Decide where to put your lights and
CONNECT WITH EASY LOCK

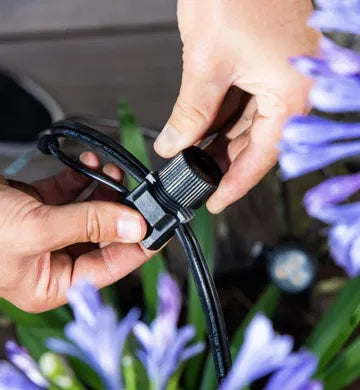

Everyone can connect lighting. An EASY-LOCK is included with each lamp, which connects the lamp to the cable. For 25 years, the EASY-LOCK has been the reliable and waterproof connection between lamp and cable.
NOW FOR THE BEST PART
CHOOSE YOUR FIXTURES
Our fixtures are carefully designed. Do you want fixtures with the same design and matching light pattern? Then choose fixtures from the same concept and you'll always have the perfect match.
ADD A LITTLE BIT OR FLAIR AND
GO SMART
Are you choosing the SMART HUB-150? Then you can easily control your garden lighting through the In-lite app. Set routines, dim lighting, or adjust colors. With In-lite Smart lighting, it's all possible.
WARRANTY
All lighting and system components come with a 5-year warranty. This applies if only In-lite products are used. Only then can we guarantee that the system and the lamps function optimally. Register your purchase for the warranty.
NEED HELP INSTALLING?
Our Installers have been trained accross New Zealand and are ready to help price a system just for the needs of your garden.
