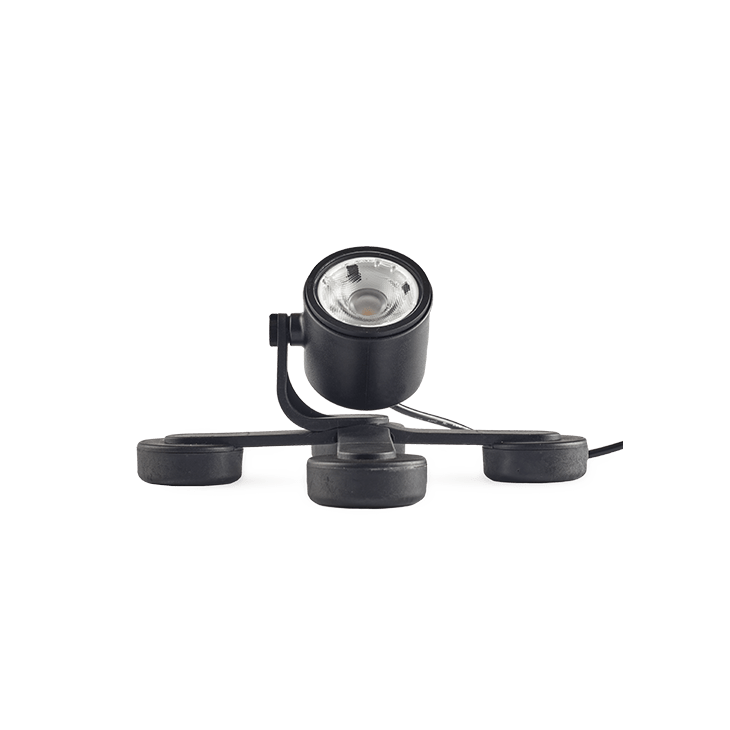

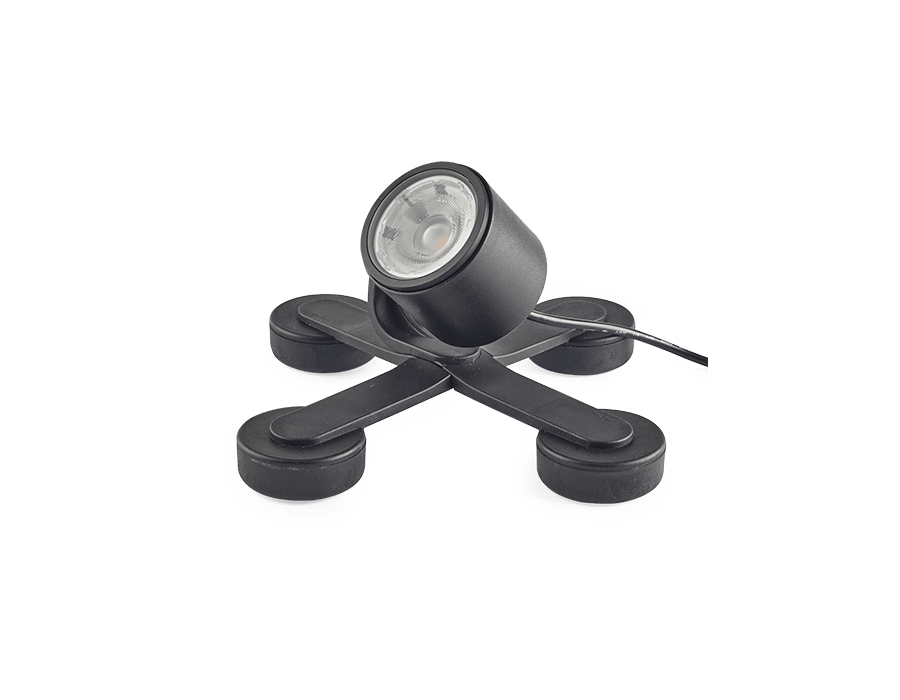

The new SUB 12V Black underwater spotlight has been fully updated. Like the other in-lite SCOPE outdoor spotlights, the SUB now also features the modern in-lite design style.The EASY-LOCK is supplied as standard with this luminaire. The cable length on this luminaire is 10 meter.
  • The new SUB is stylish, strong and fully corrosion-resistant
  • Made of glass fiber-reinforced nylon and anodized aluminum
  • Exceptionally strong thanks to new light source with wide beam of light
PRODUCT DETAILS

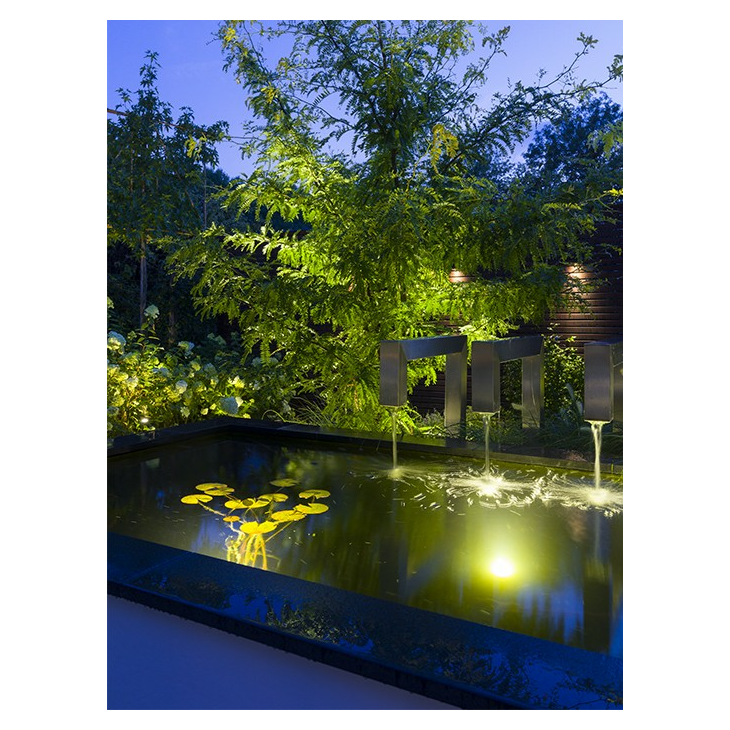

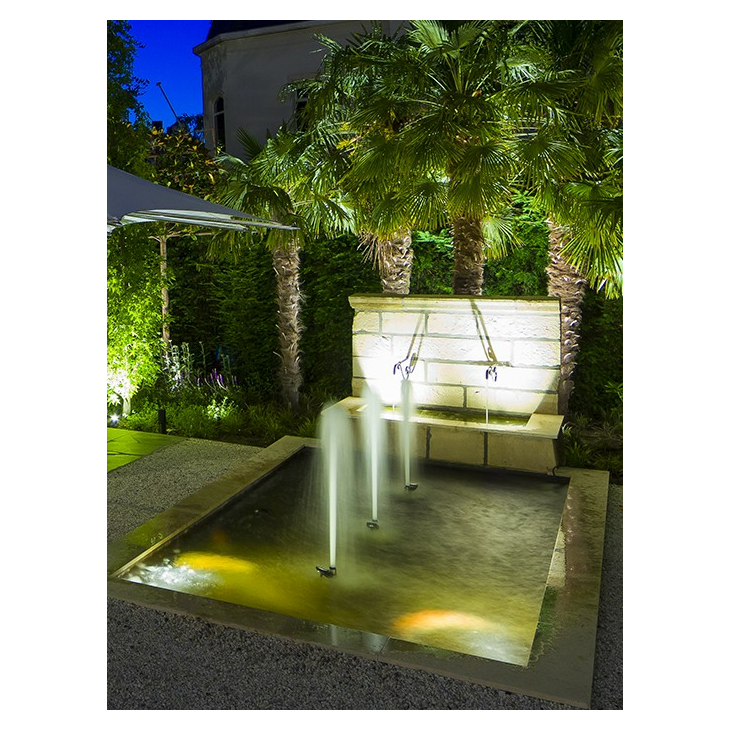

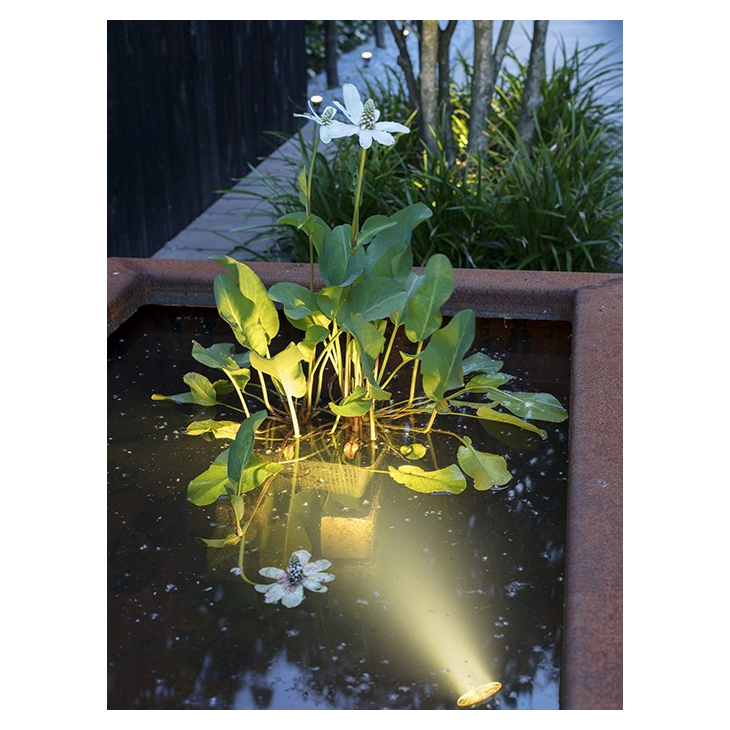

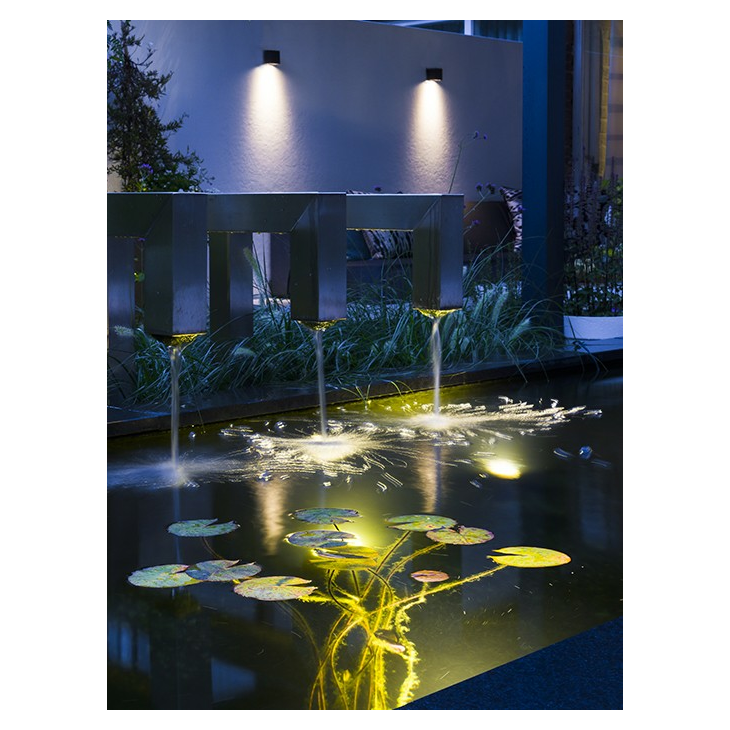

The new SUB 12V Black is fitted with a 3W (4.7 VA) light source. This yields an increase in the light output by 96 lm (currently 293 lm) and a wider light angle. The result is an even more impressive lighting effect, both under and above water.
PRODUCT SPECS

Art. nr.: 10401101

Application: Pond

CRI: 91

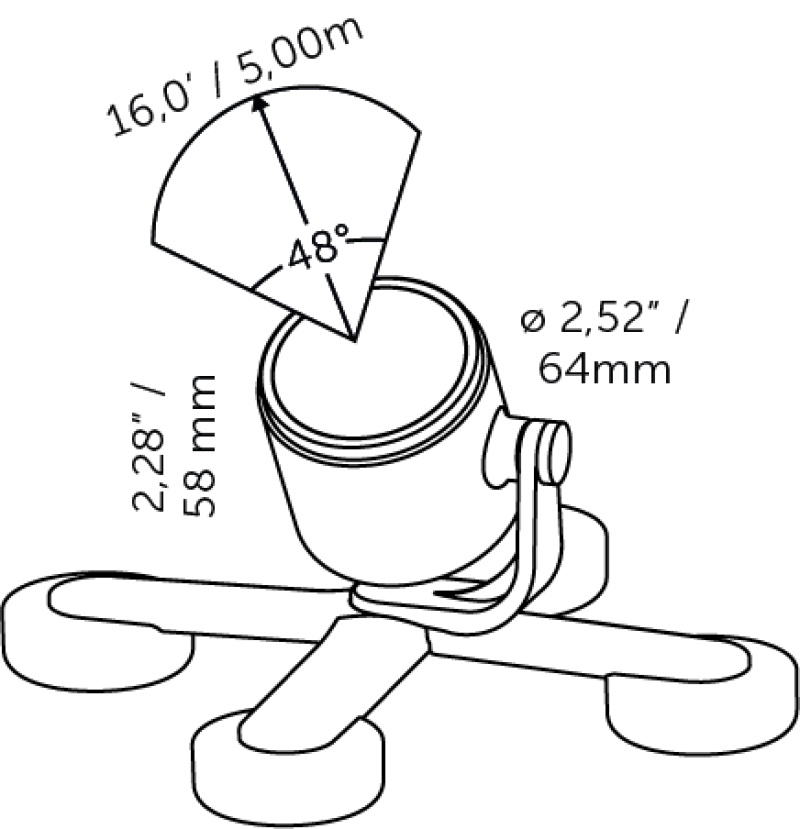

Diameter (inch): 2.5197

Diameter (mm): 64

Color: Black

EAN code: 8717051004865

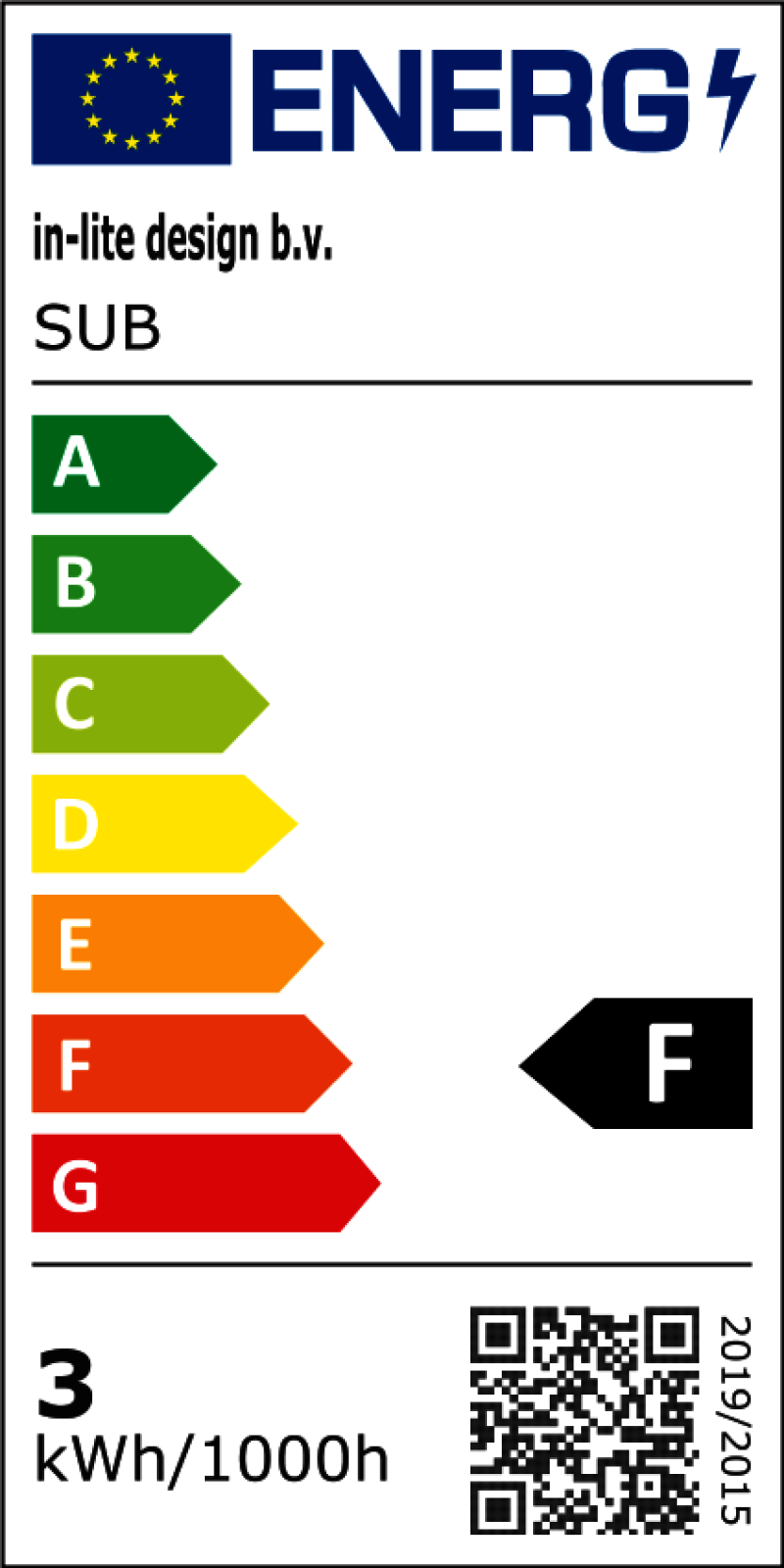

Energy label: F

Height (inch): 2.2835

Height (mm): 58

IP class: 68

Length (inch): 5.9055

Length (mm): 150

Light direction: Adjustable

Types of Light: Accent

Efficiency (Lumen/Watt): 97

Net luminous flux (Lumen): 293

Power [W]: 3

Article group: Spotlights

Voltage: 12 volt

VA value: 4.7

Width (inch): 5.9055

Width (mm): 150

Color temperature: 3000

Luminous intensity [Cd]: 375.1

Power factor: 0.64
INSTALLATION INSTRUCTIONS

The SUB is delivered fully assembled and includes a 10 meter cable. This length ensures that it is always possible to connect the SUB in the pond to the 12V ground cable in the yard outside the water using the EASY-LOCK. A SUB can be placed up to 3 meters deep.

Included in Package

  • 1x EASY LOCK
  • 10 m Fixture cable
