This perfectly even line lighting is flexible in use and in brightness. So you can illuminate various parts of your garden in the most creative way. Set the desired brightness with the in-lite app. You don't see the luminaire during the day, but in the evening it creates an extraordinarily special atmosphere that is both artistic and functional.

Don't quite match the available sizes? No problem! You simply cut EVO FLEX to the right length.

Use EVO FLEX-EXT CORD 1 to neatly conceal the cable.
  • Individual dimming with the in-lite app
  • A perfectly even light line; no visible light points
  • Can be placed straight and curved; bending radius of only 3 cm
SIZES
PRODUCT DETAILS

Create your ideal light image with the various EVO FLEX products. For example, the flexible line lighting is available in one, two and three metres. Don't quite match the available sizes? No problem! You simply cut EVO FLEX to the right length. This allows you to decide how to mount EVO FLEX down to the last centimetre.

The magic of this line light lies in the flexibility of the product, allowing it to be used in any shape. Whether you have a sleek garden with straight lines or lots of organic shapes, EVO FLEX fits! You won't see the luminaire during the day, but in the evening it creates an extraordinarily special atmosphere that is both artistic and functional.

So what makes this SMART EVO FLEX so clever? Simple: individually controllable with the in-lite app. With it, you adjust the right light intensity exactly as you wish.

EVO FLEX is an artistic addition to the EVO concept. A concept offers a solution for the entire garden. EVO consists of floor lamps, wall lamps, ground spots and surface-mounted lamps. Its distinctive sleek and architectural look makes it a real eye-catcher for the garden. If you like a premium look, choose the EVO concept.

PRODUCT SPECS

Art. nr. 99180010

Energy label G

Height (inch) 0.5

Height (mm) 12

Length (inch) 39.4

Length (mm) 1000

Efficiency (Lumen/Watt) 35

Net luminous flux (Lumen) 229

Power [W] 6.5

Voltage 12 volt, 21V

VA value 9.9

Width (inch) 0.3

Width (mm) 7

Color temperature 3000

Kilowatt hour 6

Luminous intensity [Cd] 67.1

Power factor 0.66

Art. nr. 99180010

Energy label G

Height (inch) 0.5

Height (mm) 12

Length (inch) 39.4

Length (mm) 1000

Efficiency (Lumen/Watt) 35

Net luminous flux (Lumen) 229

Power [W] 6.5

Voltage 12 volt, 21V

VA value 9.9

Width (inch) 0.3

Width (mm) 7

Color temperature 3000

Kilowatt hour 6

Luminous intensity [Cd] 67.1

Power factor 0.66


INSTALLATION INSTRUCTIONS

To install a SMART EVO FLEX (1, 2 & 3), you need a SMART HUB-150 and a CBL-40 10/2 ground cable. SMART EVO FLEX cannot be connected directly to an EASY-LOCK. SMART DRIVER 1 is supplied for this purpose.

Is the EVO FLEX a little too long? The fitting can easily be cut to size at the markings indicated. Do not cut next to the markings, as this will destroy the lighting. Seal the cut-off end with the MINI WATERLOCK supplied. This makes the SMART EVO FLEX waterproof again.

Use EVO FLEX accessories for proper and easy mounting. For example, use the PROFILE for perfect straight lines, the CLIPS for beautiful organic shapes and the CORNER IN- and OUTSIDE for corners of exactly 90 degrees. This is the best way to illuminate your stairs, overhang, pond edge or border. For more tips, see the manual on this page.

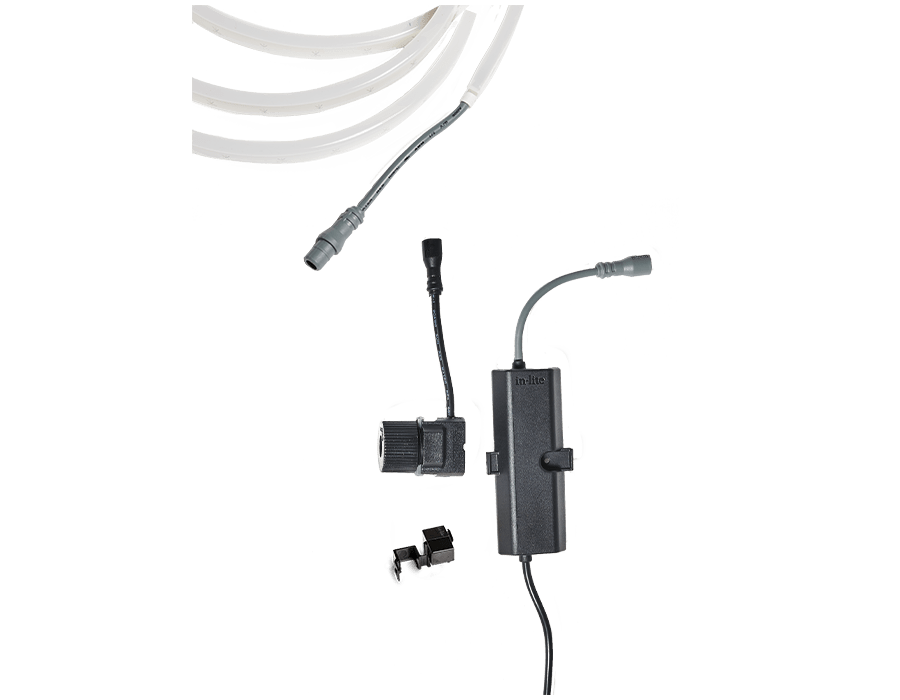

Included in Package

  • EVO FLEX 1, 2 or 3 meters
  • 110 mm cable to the fixture
  • SMART DRIVER 1
  • EASY-LOCK
  • MINI WATERLOCK
