PUCK luminaires shine all around and provide a subtle, non-glare light. The luminaire is available in two sizes (Ø 22mm & Ø 60mm) and two colours (Black & Pearl Grey). Ideal for use as indication lighting along paths, terraces and driveways.
  • Produces a subtle radiating light on all sides

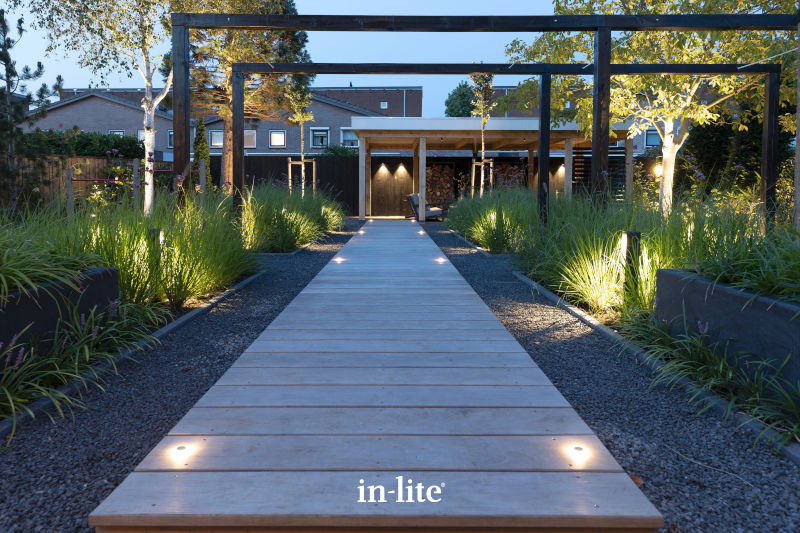

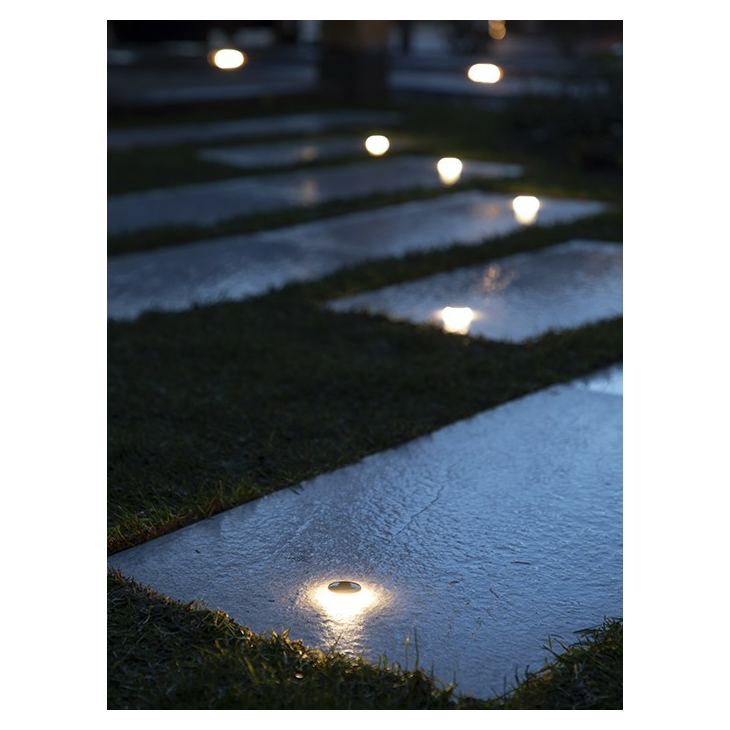

  • Designed for illuminating the edges of a driveway, walkway or deck
  • Drive-over
Installation advice:

A PUCK 22 every 1½ to 2 meters
PRODUCT DETAILS

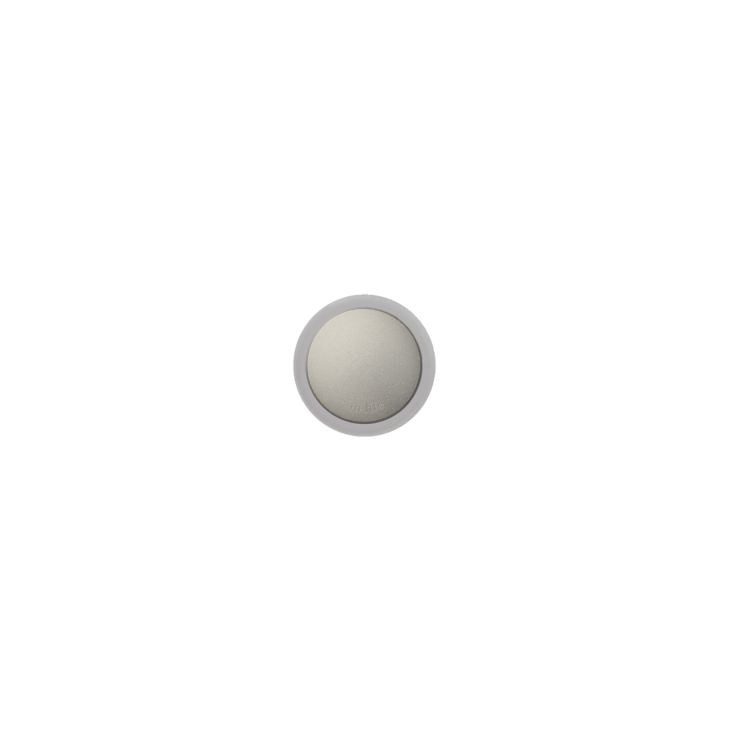

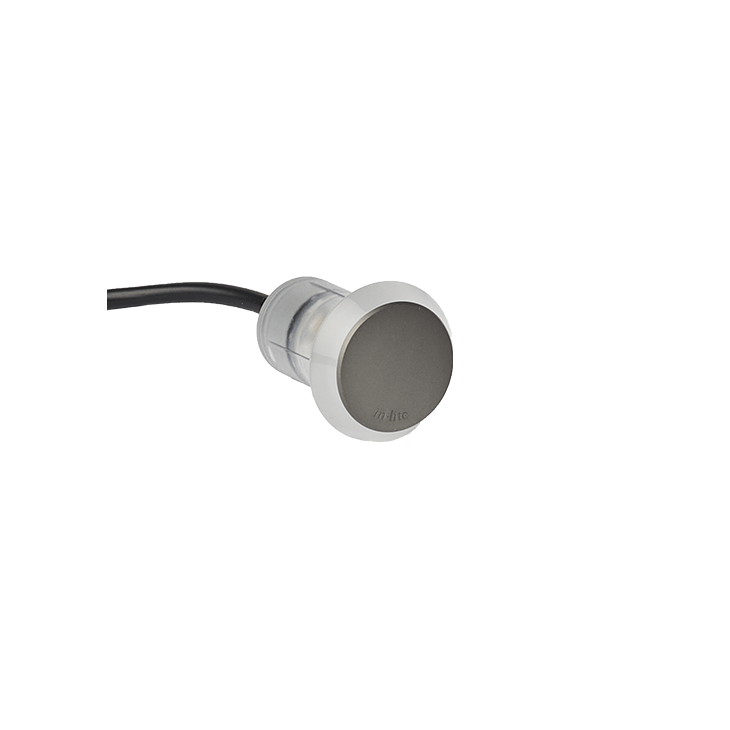

The small PUCK 22 ground spot is perfect as subtle indicator lighting for your driveway, path, deck or jetty. PUCK 22 has a diameter of 22 mm and is finished with an anodised aluminium cap. The ground spotlights' light can be seen from a great distance due to its side exit. Thanks to its non-glare light, PUCK 22 can also be used as an atmospheric light. The PUCK series comes in two different sizes and colours: PUCK has a diameter of 60 mm, PUCK 22 has a diameter of 22 mm.
PRODUCT SPECS

Art. nr.: 10104170

Application: Driveway, Fence/wall , Path, Stairs, Terrace

Mounting depth (inch): 2.1654

Recessed depth (mm): 55

CRI: 96

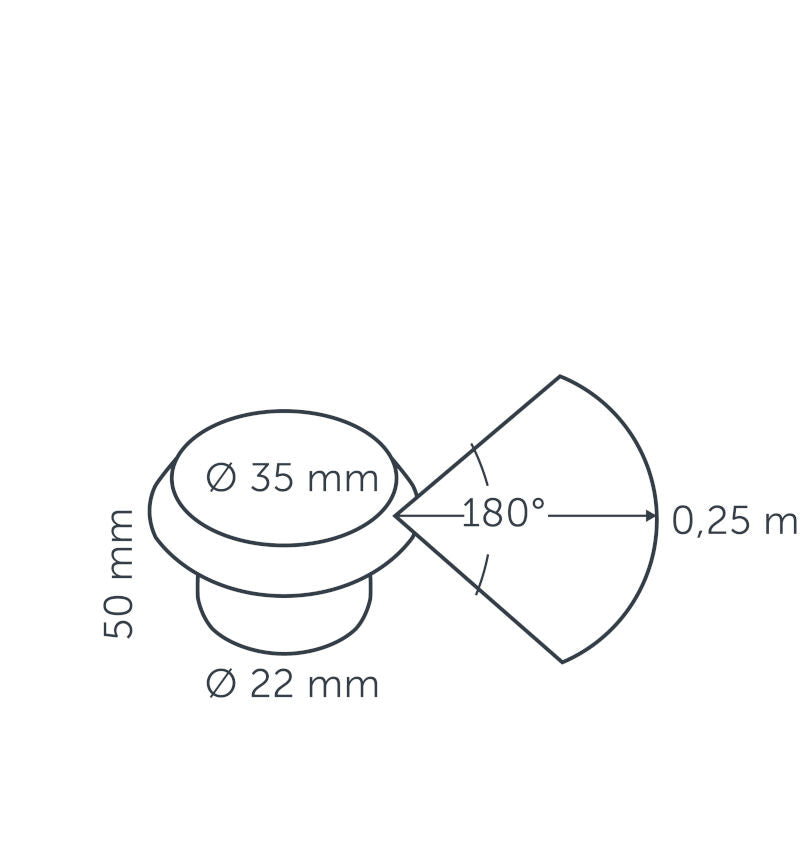

Diameter (inch): 1.378

Diameter (mm): 35

Color: Pearl Grey

EAN code: 8717051004285

Energy label: G

Height (inch): 1.4567

Height (mm): 37

IP class: 67

Light direction: All around

Types of Light: Diffuse

Efficiency (Lumen/Watt): 5

Net luminous flux (Lumen): 3

Power [W]: 0.6

Processing: Concrete, Grass, Gravel, Natural stone, Wood

Article group: Recessed lights

Voltage: 12 volt

VA value: 0.6

Color temperature: 2900

Luminous intensity [Cd]: 0.45

Power factor: 1
INSTALLATION INSTRUCTIONS

You process this soil pot in a hole in wood (wood drill) or stone (cooled diamond drill) with a diameter of 22 mm. A dealer or gardener can take care of this for you. Attention! Install the fixture only in a straight drilled hole in the right size to ensure that the spot is properly clamped without damaging the house. Handy tapping plate PUCK 22 (DARK) comes with a tapping plate (60x60x5 mm). You use it during assembly to prevent damage to the anodized cap.

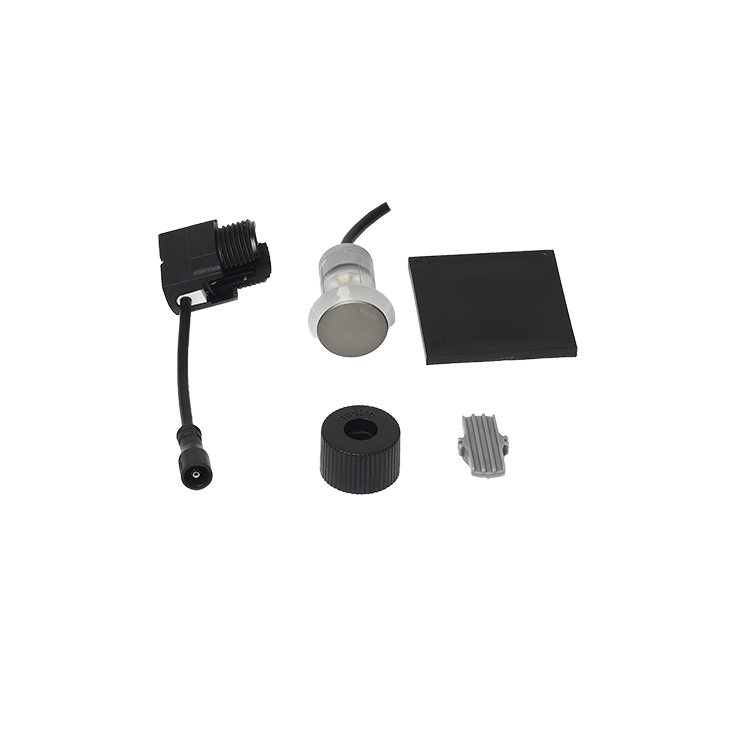

Included in Package

  • 1x EASY LOCK
  • 60 cm Fixture cable
  • Baffle plate
