MINI WEDGE DARK

MINI WEDGE DARK

Become a Partner to view prices
Shipping calculated at checkout.

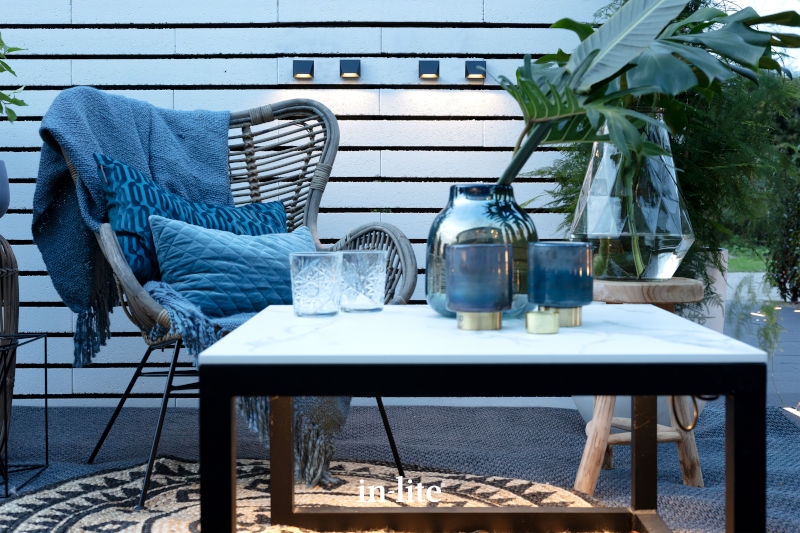

Small wall light with subtle diffuse lighting effect. It lets you easily create beautiful lighting effects on a low wall, high border or along steps. The EASY-LOCK is supplied as standard with this luminaire. The cable length on this luminaire is 60 cm.Tip: Think of an extension cable
  • Produces a subtle and attractive downward light
  • Designed for illuminating a low fence or wall
  • Available in three sizes
Installation advice:

A MINI WEDGE every 1½ to 2 meters at a height of ½ to 1½ meters

PRODUCT DETAILS

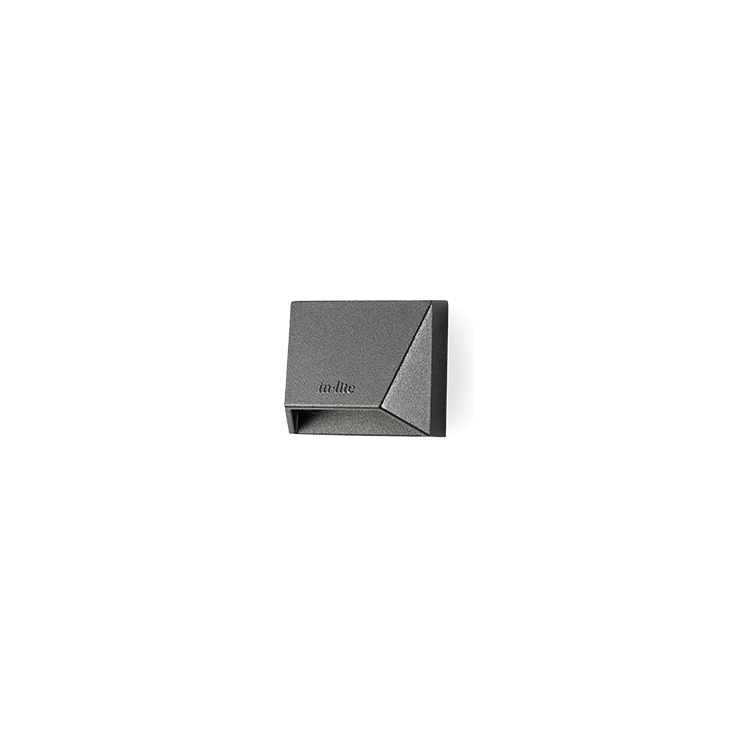

The MINI WEDGE DARK is the smaller version of the WEDGE. The fixture is small in size (6 cm wide), but with a wide light output. This small wall light lets you easily create beautiful lighting effects on a low wall, high border or along steps. When used along steps, it also provides added safety. With a consumption value of only 0.5 watts, this fixture is also highly energy-efficient.

PRODUCT SPECS

Art. nr.: 10301780

Application: Canopy, Facade, Fence/wall , House, Stairs

CRI: 95

Color: Dark Grey

EAN code: 8717051004322

Energy label: G

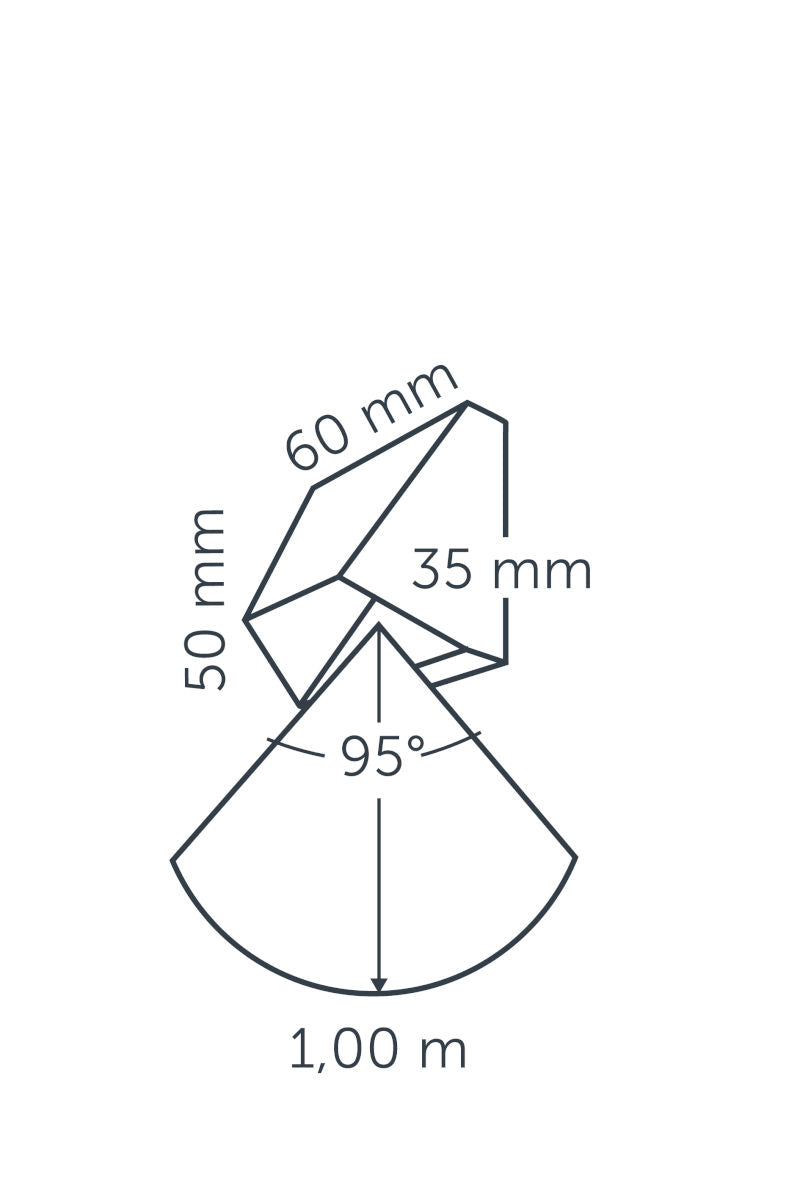

Height (inch): 1.9685

Height (mm): 50

IP class: 55

Length (inch): 1.378

Length (mm): 35

Light direction: Downward

Types of Light: Direct

Efficiency (Lumen/Watt): 40

Net luminous flux (Lumen): 24

Power [W]: 0.6

Article group: Wall lights

Voltage: 12 volt

VA value: 0.6

Width (inch): 2.3622

Width (mm): 60

Color temperature: 2900

Material finishing/coating: FCBV

Luminous intensity [Cd]: 13.7

Power factor: 1

INSTALLATION INSTRUCTIONS

The MINI WEDGE DARK can be attached using the supplied screws. The cap is easy to click on.

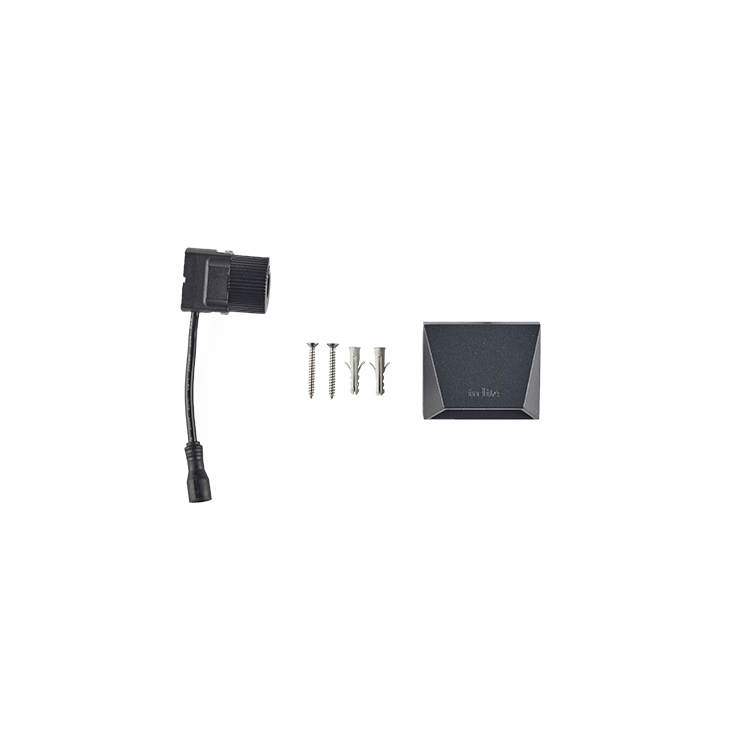

Included in Package

  • 1x EASY LOCK
  • 60 cm Fixture cable
  • 2x Nylon plug
  • 2x Screw
