HYVE 22 RVS

HYVE 22 RVS

Become a Partner to view prices
Skip to product information
HYVE 22 RVS
  • HYVE 22 RVS
  • HYVE 22 RVS
  • HYVE 22 RVS
  • HYVE 22 RVS
  • HYVE 22 RVS
  • HYVE 22 RVS
  • HYVE 22 RVS
HYVE 22 RVS

HYVE 22 RVS

Become a Partner to view prices
Shipping calculated at checkout.

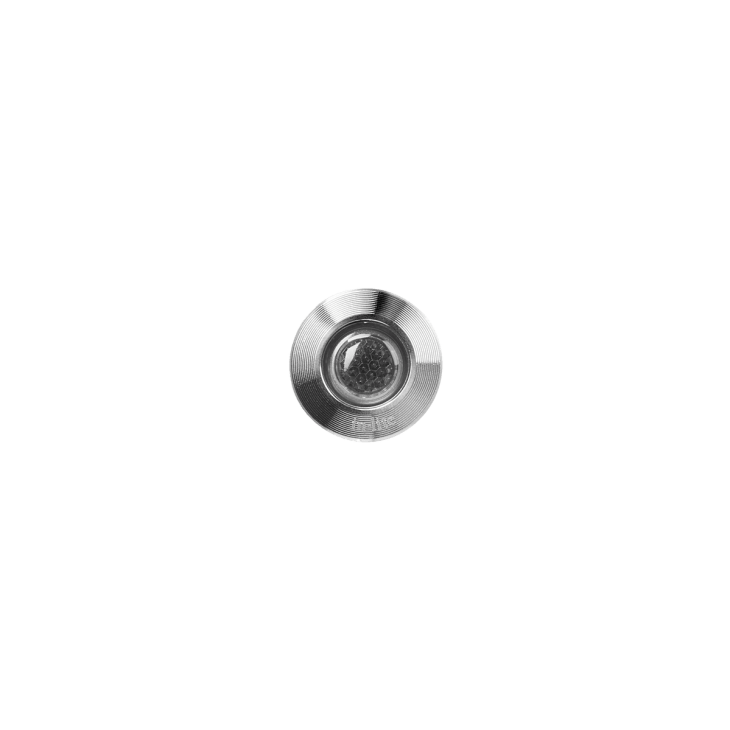

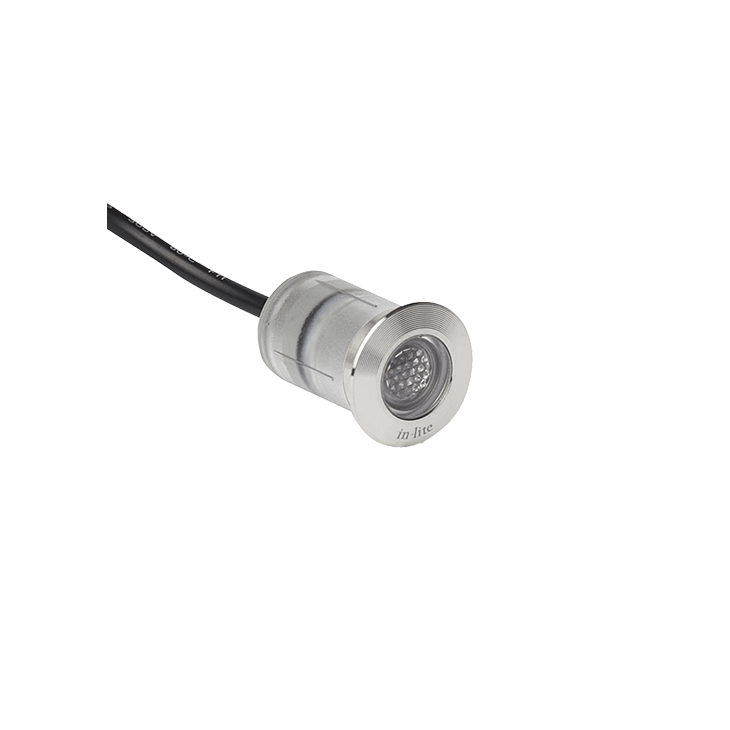

This subtle 22mm diameter fixture includes a stainless steel ring. The EASY-LOCK is supplies as standard with this luminaire. The cable length on this luminaire is 60cm. Tip: Think of an extension cable

Produces an eye-catching yet attractive lighting effect.

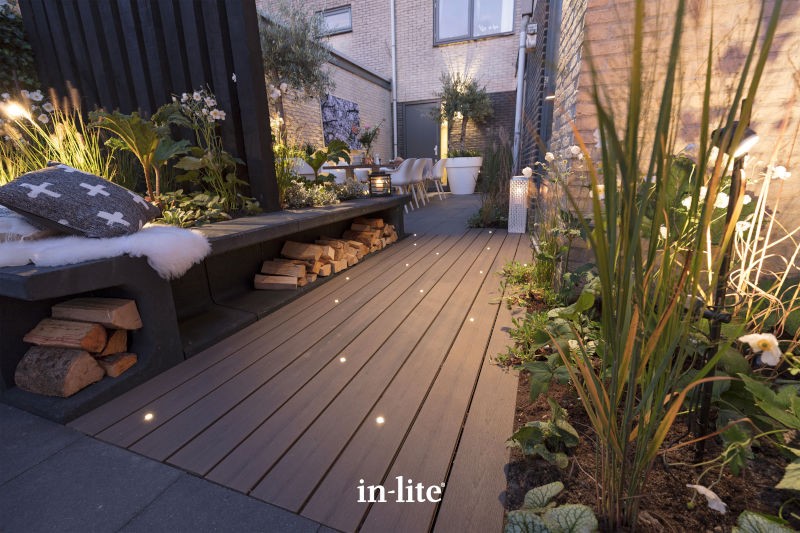

Designed for illuminating the edges of a driveway, walkway or deck.

Drive-over

Installation advice:

A HYVE 22 RVS ever 1,5 to 2 meters.
PRODUCT DETAILS

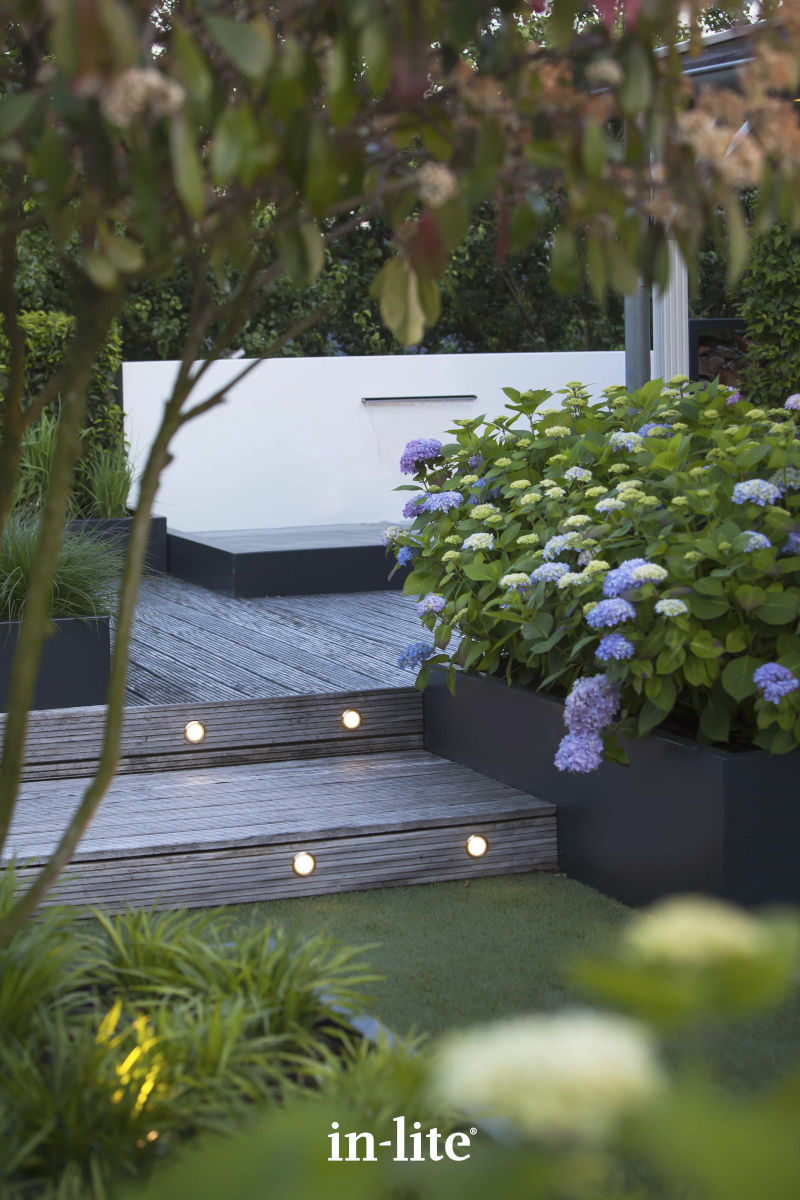

This subtle 22 mm diameter fixture includes a stainless steel ring. In the evening, the honeycomb structure of the lens produces an attractive, warm light that is not blinding. This makes the fixture perfect in, for example, stairs and decks. The HYVE 22 stainless steel beautifully combines with the other fixtures from the HYVE range.
PRODUCT SPECS

Art. nr.: 10104000

Application: Driveway, Path, Stairs, Terrace

Mounting depth (inch): 2.1654

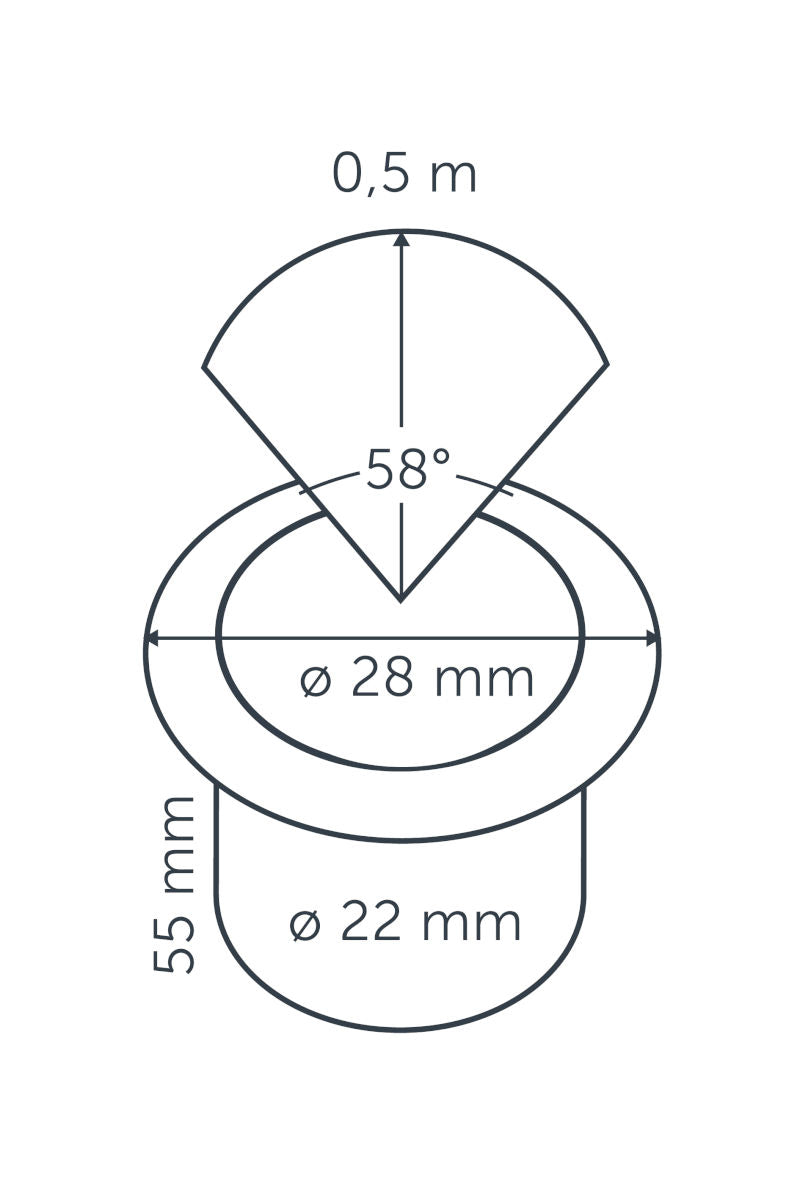

Recessed depth (mm): 55

CRI: 95

Diameter (inch): 1.1024

Diameter (mm): 28

Color: Stainless Steel

EAN code: 8717051003493

Energy label: G

Height (inch): 1.4567

Height (mm): 37

IP class: 67

Light direction: Upward adjustment

Types of Light: Diffuse

Efficiency (Lumen/Watt): 10

Net luminous flux (Lumen): 2

Power [W]: 0.2

Processing: Concrete, Grass, Gravel, Natural stone, Wood

Article group: Recessed lights

Voltage: 12 volt

VA value: 0.2

Color temperature: 3000

Luminous intensity [Cd]: 1.6

Power factor: 1
INSTALLATION INSTRUCTIONS

This subtle 22 mm diameter fixture includes a stainless steel ring. In the evening, the honeycomb structure of the lens produces an attractive, warm light that is not blinding. This makes the fixture perfect in, for example, stairs and decks. The HYVE 22 stainless steel beautifully combines with the other fixtures from the HYVE range.

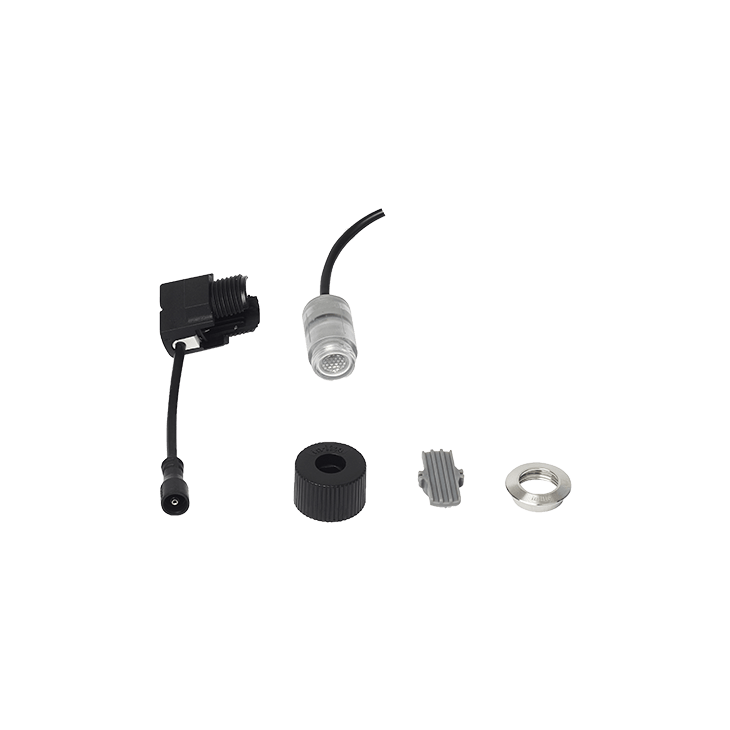

Included in Package

  • 1x EASY LOCK
  • 60 cm Fixture cable
