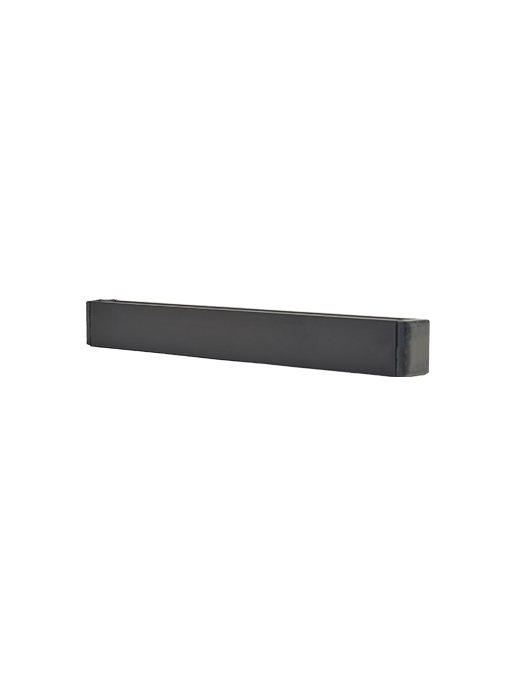

EVO HYDE 180 DARK

EVO HYDE 180 DARK

Become a Partner to view prices
Shipping calculated at checkout.

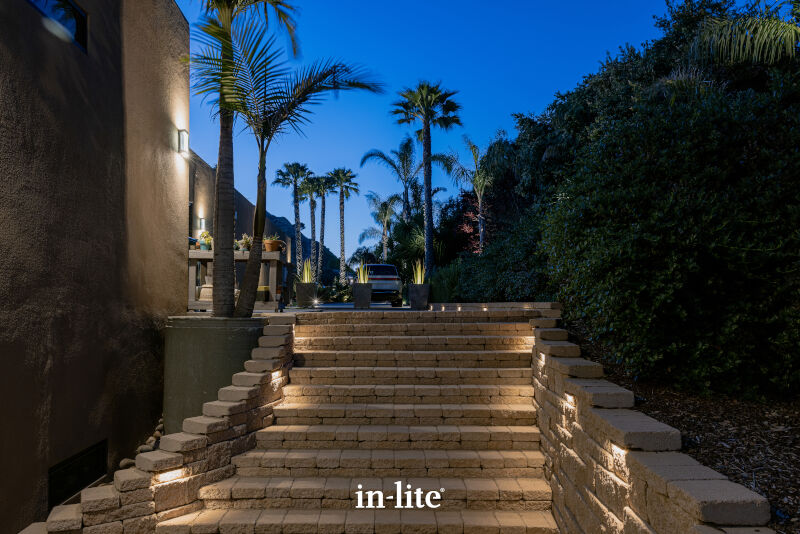

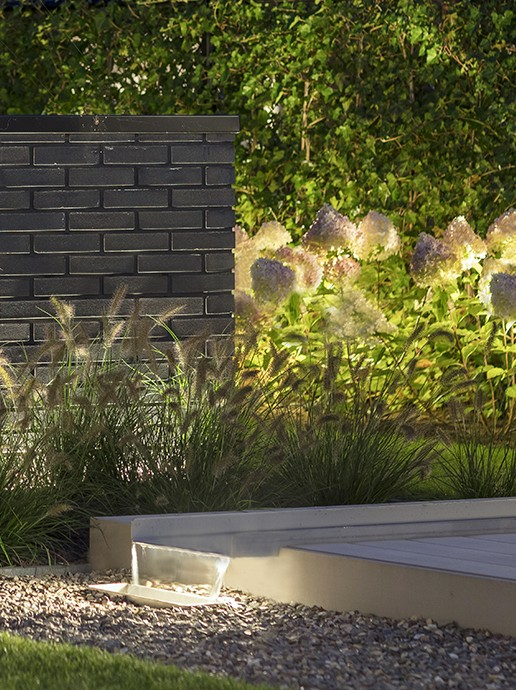

You place EVO HYDE's indirect line lighting under steps, decking, balustrades and (seating) walls. The lighting effect is special and functional.

The EASY-LOCK is included as standard with this luminaire. The cable length on this fitting is 60 cm.
  • Produces a wide, subtle light

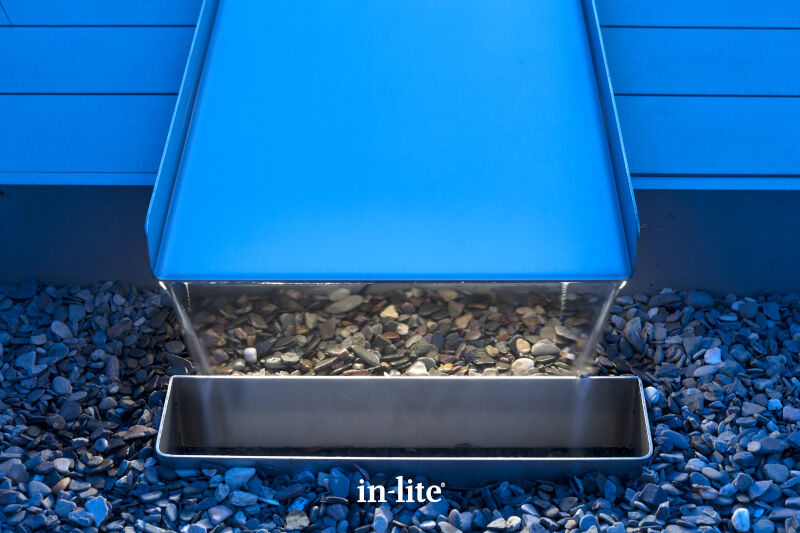

  • Suitable for installation under stairs and pond edges
  • Available in two sizes
Installation advice:

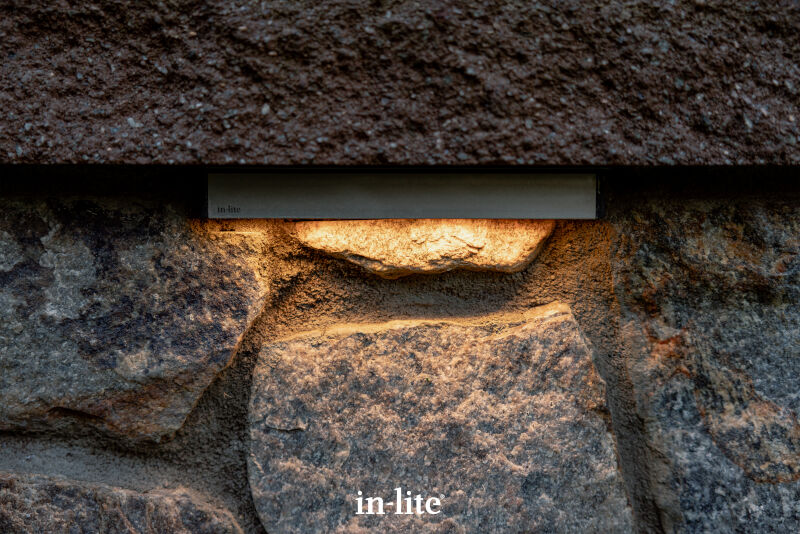

Install the EVO HYDE under an overhang of at least 5 to 6 centimeters

PRODUCT DETAILS

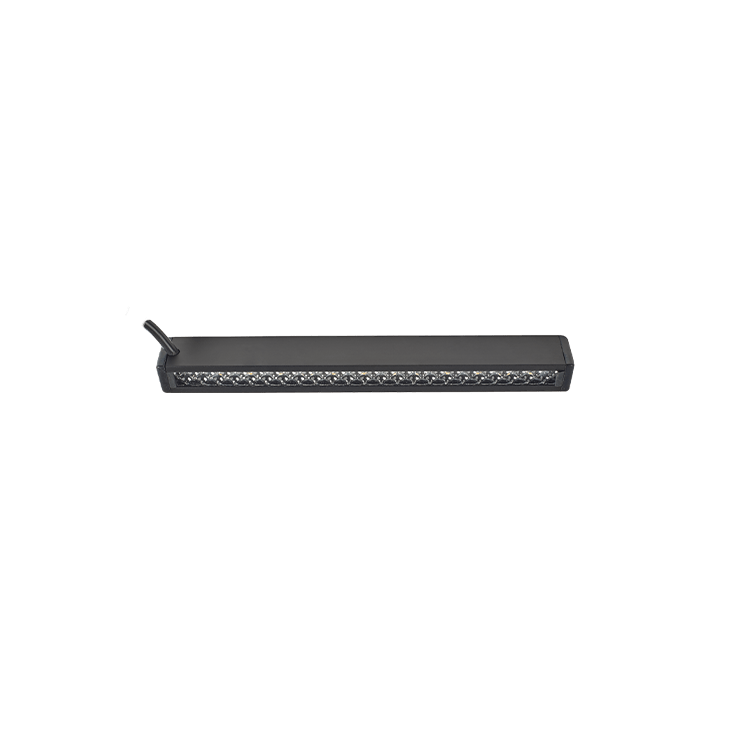

You place EVO HYDE's indirect line lighting under steps, decking, balustrades and (seating) walls. The lighting effect is special and functional. Depending on the distance you want to bridge, choose the short EVO HYDE 180 or long EVO HYDE 550. You can also place several EVO HYDE luminaires next to each other. Go for premium quality with our special EVO line. EVO products (EVO stands for evo-lution) have a modern, sleek design and are finished in dark grey anodised aluminium. Thanks to the high-quality LED light source and lens with diamond cut structure, EVO outdoor luminaires provide a beautifully diffuse light image with excellent colour rendering (CRI).

PRODUCT SPECS

Art. nr.: 10250200

Application: Stairs

CRI: 93

Color: Black

EAN code: 8717051003974

Energy label: G

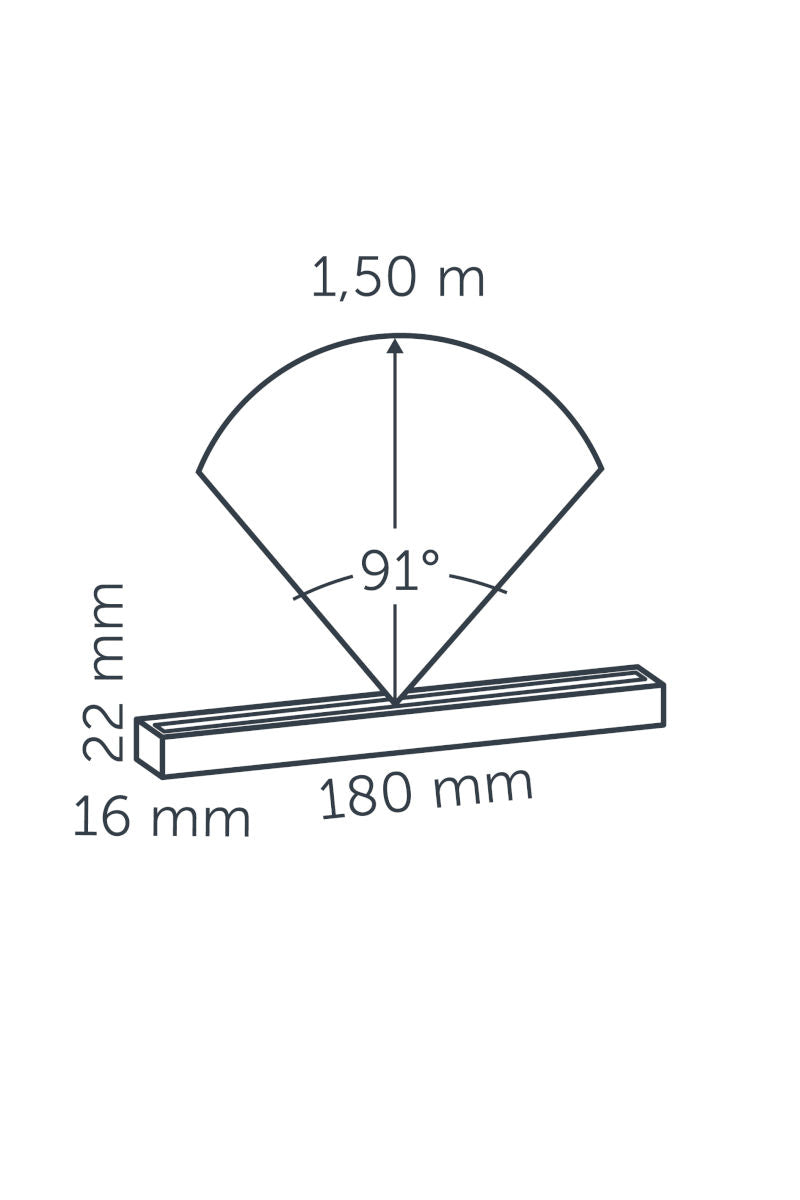

Height (inch): 0.8661

Height (mm): 22

IP class: 55

Length (inch): 7.0866

Length (mm): 180

Types of Light: Indirect

Efficiency (Lumen/Watt): 50

Net luminous flux (Lumen): 25

Power [W]: 0.5

Processing: Concrete, Natural stone, Wood

Article group: Undercap lighting

Voltage: 12 volt

VA value: 0.6

Width (inch): 0.6299

Width (mm): 16

Color temperature: 2950

Luminous intensity [Cd]: 16

Power factor: 0.83

INSTALLATION INSTRUCTIONS

Mounting with the screws and plugs included. To learn how to install the in-lite system, watch the instruction videos on the ‘Installation tips’ page.

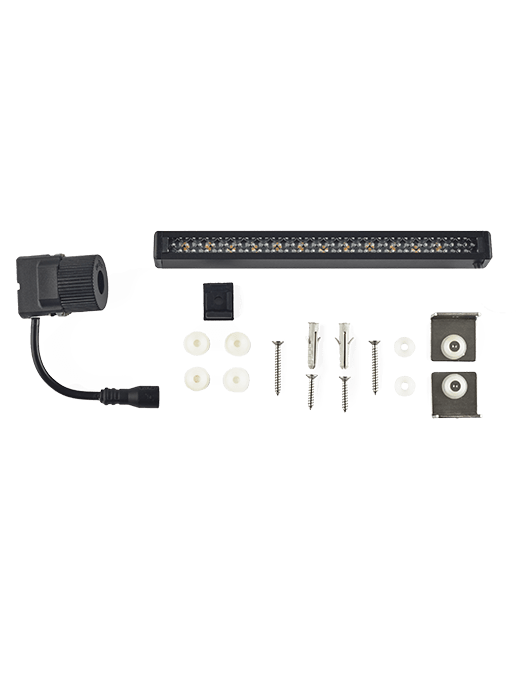

Included in Package

  • 1x EASY LOCK
  • 60 cm Fixture cable
  • 2x Nylon plug
  • 4X Screw
  • 2x Mounting plate for overhang
  • 2x Large cable cap
  • 2x Small cable cap
