EVO FLEX PROFILE is designed to fit EVO FLEX 1, 2, 3 and SMART EVO FLEX TONE 1, 2 and 5. Combine with other EVO FLEX accessories for the perfect assembly. A total of 4 profiles are available, each with its own application. See installation advice for more information on all profiles. Combine with other EVO FLEX accessories for the perfect installation.

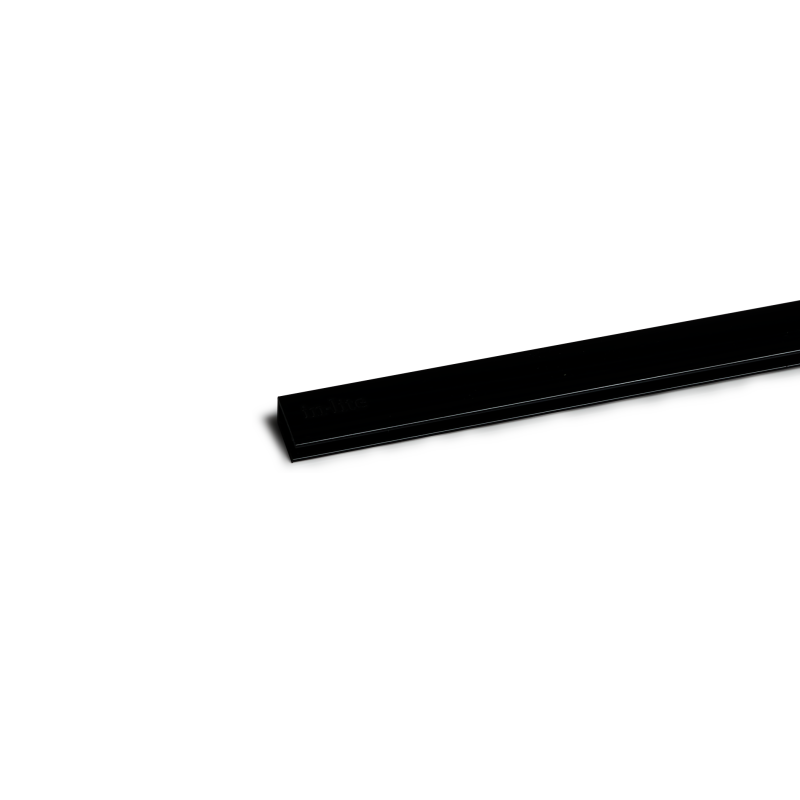

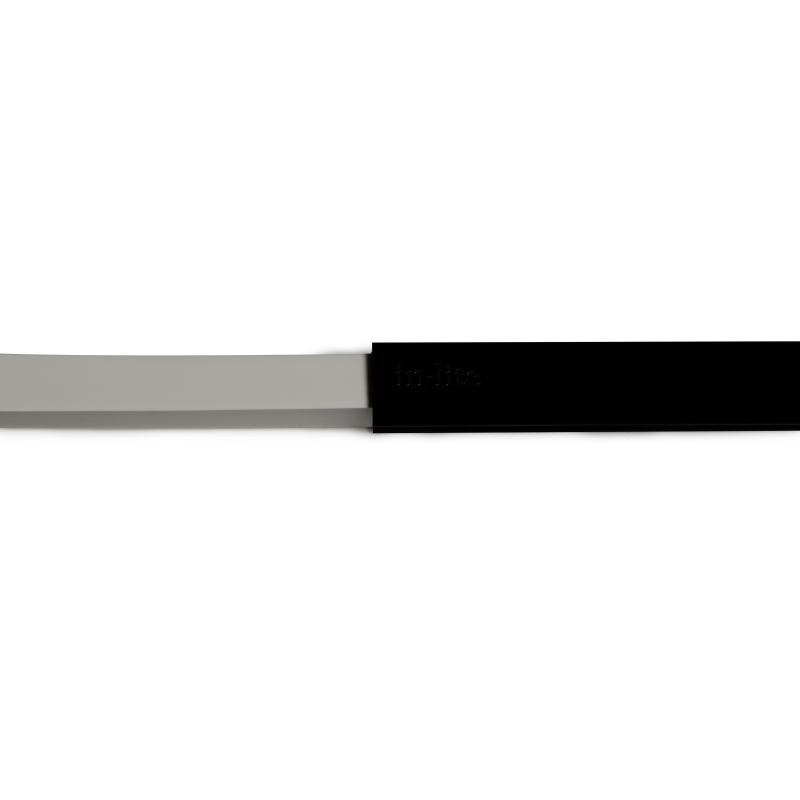

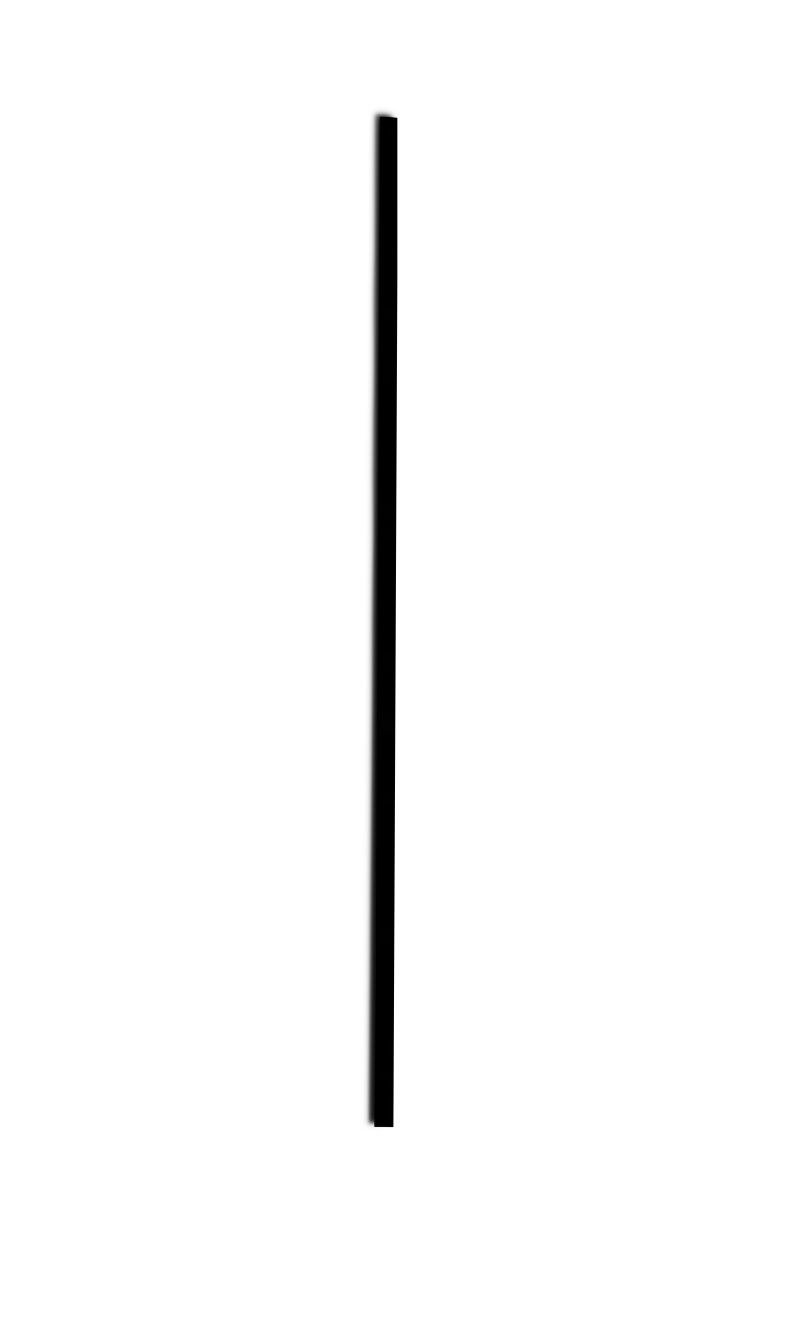

This is a straight profile, made of PC, with a length of 101 cm for mounting EVO FLEX. For easy installation under staircases, pond edges or roof overhangs.Combine with other EVO FLEX accessories for the perfect assembly.
  • Makes assembly of EVO FLEX easy
  • Applicable for all (SMART) EVO FLEX fixtures
  • Easy to combine with other EVO FLEX accessories
Installation advice:

Look carefully at which profile best suits the application
PRODUCT DETAILS

EVO FLEX PROFILE is designed to fit EVO FLEX 1, 2, 3 and SMART EVO FLEX TONE 1, 2 and 5. Combine with other EVO FLEX accessories for the perfect assembly. A total of 4 profiles are available, each with its own application. See installation advice for more information on all profiles. Combine with other EVO FLEX accessories for the perfect installation.
PRODUCT SPECS

Art. nr.: 10250352

Application: Stairs

EAN code: 8717051005787

Height (inch): 0.7087

Height (mm): 18

Length (inch): 39.7638

Length (mm): 1010

Light direction: Downward

Processing: Concrete, Natural stone, Wood

Article group: Related products

Width (inch): 0.4331

Width (mm): 11
INSTALLATION INSTRUCTIONS

EVO FLEX PROFILE 1 and 2
To mount EVO FLEX PROFILE 1, 2 and 3, we recommend using mounting sealant. The profile can then (if possible) be fixed with screws to allow the sealant to harden. Screw holes have been prepared for this purpose. If required, EVO FLEX PROFILE can be cut to size. The sealant must be suitable for outdoor applications and must be UV and weather-resistant. Required is that the sealant has a high initial adhesion and is permanently elastic after curing.

PROFILE 3
For mounting EVO FLEX PROFILE 1, 2 and 3, the recommendation is to use mounting sealant. If required, EVO FLEX PROFILE can be cut to size. The sealant must be suitable for outdoor applications and must be UV and weather-resistant. Required is that the sealant has a high initial adhesion and is permanently elastic after curing.

PROFILE 4
The profile can be mounted using screws (not supplied). Screw holes have been prepared for this purpose.
