EVO FLEX PROFILE is designed to fit EVO FLEX 1, 2, 3 and SMART EVO FLEX TONE 1, 2 and 5. Combine with other EVO FLEX accessories for the perfect assembly. A total of 4 profiles are available, each with its own application. See installation advice for more information on all profiles. Combine with other EVO FLEX accessories for the perfect installation.

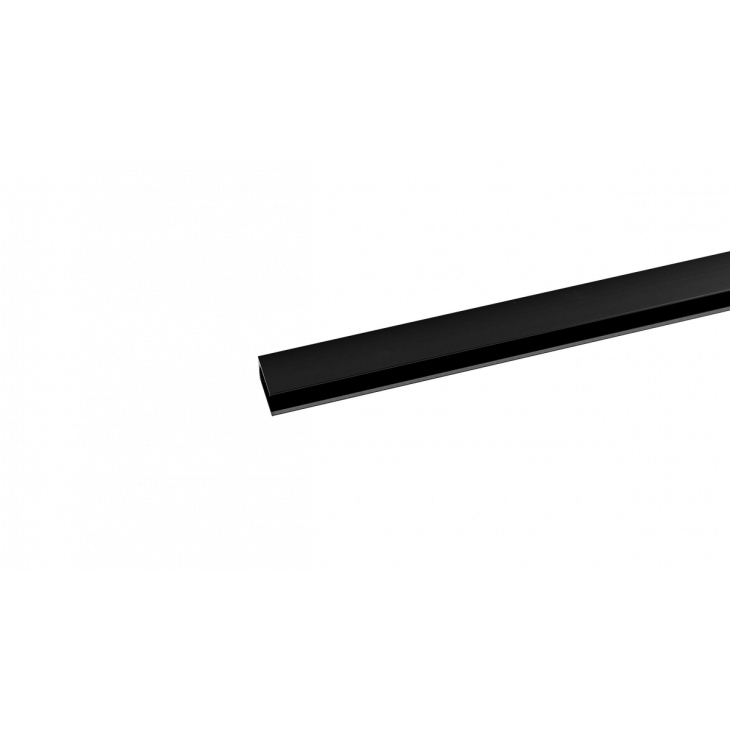

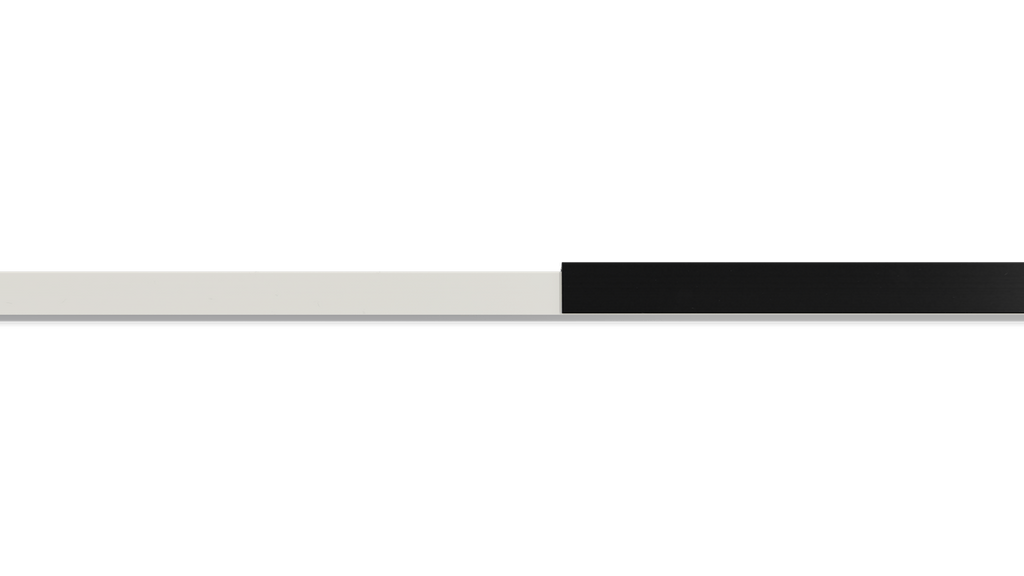

This is a straight aluminium profile with a length of 100 cm for mounting EVO FLEX. This profile has a nicer finish than the other profiles, allowing it to be processed in sight. Combine with other EVO FLEX accessories for the perfect mounting.
  • Makes assembly of EVO FLEX easy
  • Applicable for all (SMART) EVO FLEX fixtures
  • Easy to combine with other EVO FLEX accessories
Installation advice:

Look carefully at which profile best suits the application
PRODUCT DETAILS

EVO FLEX PROFILE is designed to fit EVO FLEX 1, 2, 3 and SMART EVO FLEX TONE 1, 2 and 5. Combine with other EVO FLEX accessories for the perfect assembly. A total of 4 profiles are available, each with its own application. See installation advice for more information on all profiles. Combine with other EVO FLEX accessories for the perfect installation.
PRODUCT SPECS

Application: Stairs

Color: Black

EAN code: 8717051006227

Height (inch): 0.5118

Height (mm): 13

Length (inch): 39.3701

Length (mm): 1000

Processing: Concrete, Natural stone, Wood

Article group: Related products

Width (inch): 0.3543

Width (mm): 9

Material finishing/coating: Anodized
INSTALLATION INSTRUCTIONS

Installation advice
EVO FLEX PROFILE 1 and 2
To mount EVO FLEX PROFILE 1, 2 and 3, we recommend using mounting sealant. The profile can then (if possible) be fixed with screws to allow the sealant to harden. Screw holes have been prepared for this purpose. If required, EVO FLEX PROFILE can be cut to size. The sealant must be suitable for outdoor applications and must be UV and weather-resistant. Required is that the sealant has a high initial adhesion and is permanently elastic after curing.

PROFILE 3
For mounting EVO FLEX PROFILE 1, 2 and 3, the recommendation is to use mounting sealant. If required, EVO FLEX PROFILE can be cut to size. The sealant must be suitable for outdoor applications and must be UV and weather-resistant. Required is that the sealant has a high initial adhesion and is permanently elastic after curing.

PROFILE 4
The profile can be mounted using screws (not supplied). Screw holes have been prepared for this purpose.
