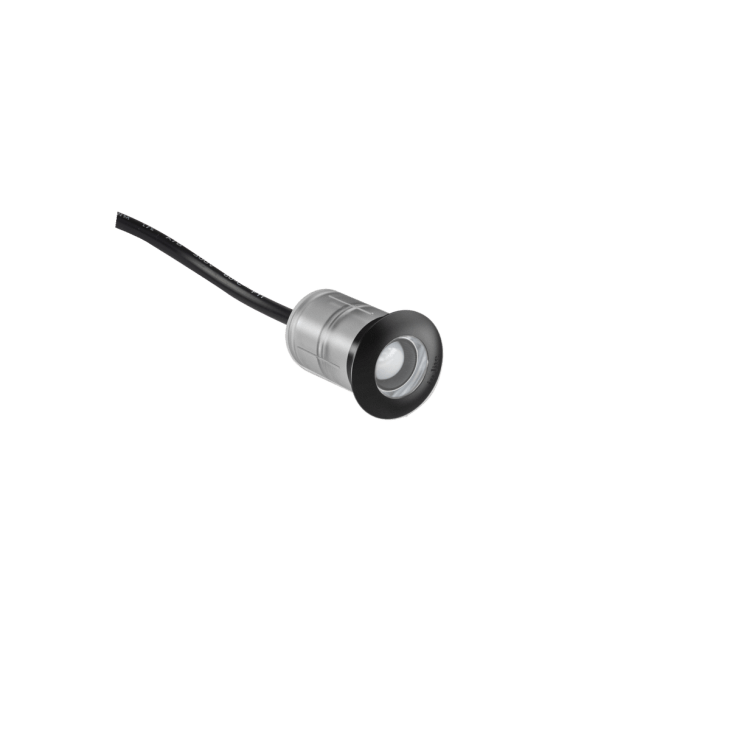

Illuminating your driveway or garden path with a small, versatile ground spot? DOT 22 is ideal for creating better visibility and an enchanting light image. Place DOT 22 every 1.5 metres for best results. Prefer to create a playful effect? DOT is available in 60 mm and 22 mm. With the three different coloured rings, you can complete this ground spotlight in style.

DOT is suitable for all HUBs, including SMART HUB-300.

RING 28 not included. EASY-LOCK is included as standard with this fixture. The cable length on this fixture is 60cm.
  • RING 28 available in three colours (order separately)
  • Also suitable for SMART HUB-300
  • Also available without ring
Installation advice:

Place a DOT 22 every 1.5 to 2 metres
PRODUCT DETAILS

Want to stylishly illuminate your driveway or garden path with a compact, versatile ground spotlight? DOT 22 is perfect for improving visibility and adding an enchanting look to your outdoor space. For optimum effect, place DOT 22 every 1.5 metres.

Want a more playful lighting effect? Then choose from 22 mm or 60 mm sizes. DOT ground spots can be customised with rings in three different colours, allowing you to tailor them completely to your own taste. Black, Pearl Grey and Stainless Steel.

Moreover, DOT is the only ground spotlight in our range that is compatible with the SMART HUB-300. For detailed installation instructions, see installation advice.
PRODUCT SPECS

Art. nr.: 10101715

Application: Driveway, Path

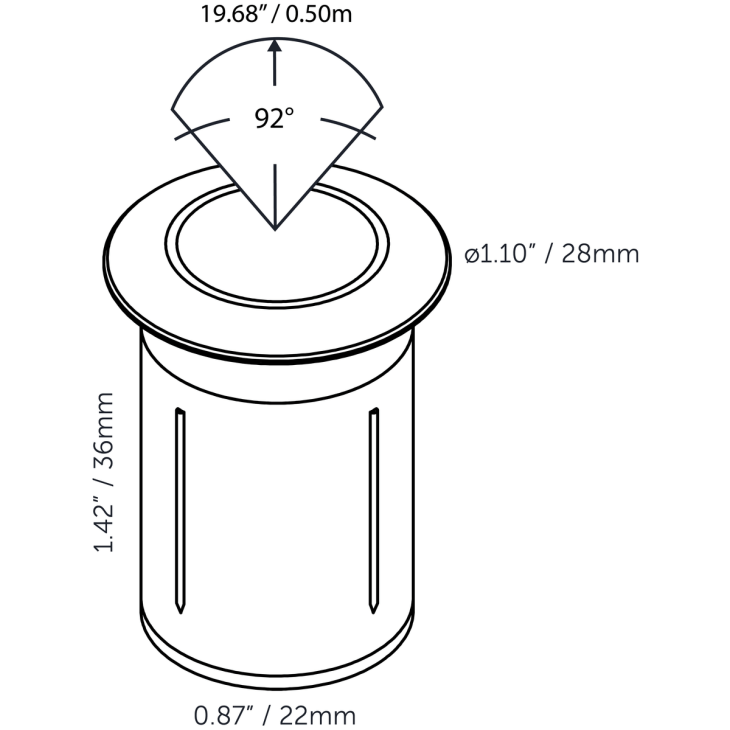

Mounting depth (inch): 1.9685

Recessed depth (mm): 50

CRI: 97

Diameter (inch): 0.8661

Diameter (mm): 22

EAN code: 8717051006685

Energy label: G

Height (inch): 1.4173

Height (mm): 36

IP class: 67

Light direction: Up

Types of Light: Direct

Efficiency (Lumen/Watt): 3

Net luminous flux (Lumen): 1

Power [W]: 0.36

Processing: Concrete, Wood

Article group: Recessed lights

Voltage: 12 volt

VA value: 0.5

Color temperature: 2850

Kilowatt hour: 1

Luminous intensity [Cd]: 0.5

Power factor: 0,6
INSTALLATION INSTRUCTIONS

DOT should be installed in a 22 mm diameter hole. This can be done in wood (with a wood drill) or in stone (with a cooled diamond drill). A dealer or landscaper can carry out this installation for you. Just make sure the hole is drilled straight and exactly the right diameter to avoid problems with the lighting's electronics.

Unlike FUSION 22, HYVE 22 and DB-LED, DOT 22 is compatible with SMART HUB-300. The rest of the ground spots connect to: HUB-50, HUB-100 and SMART HUB-150.

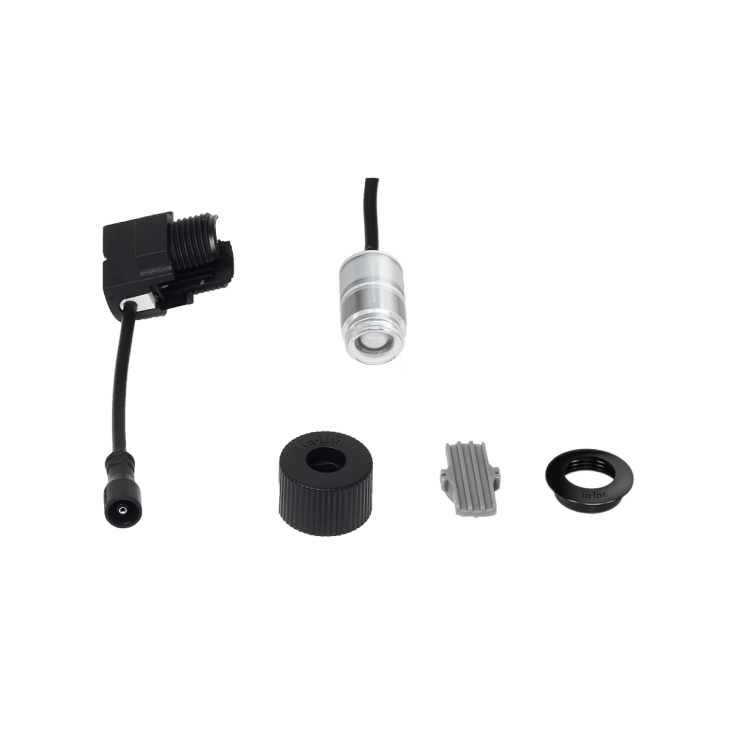

Included in Package

  • DOT 22
  • RING 28
  • EASY-LOCK
