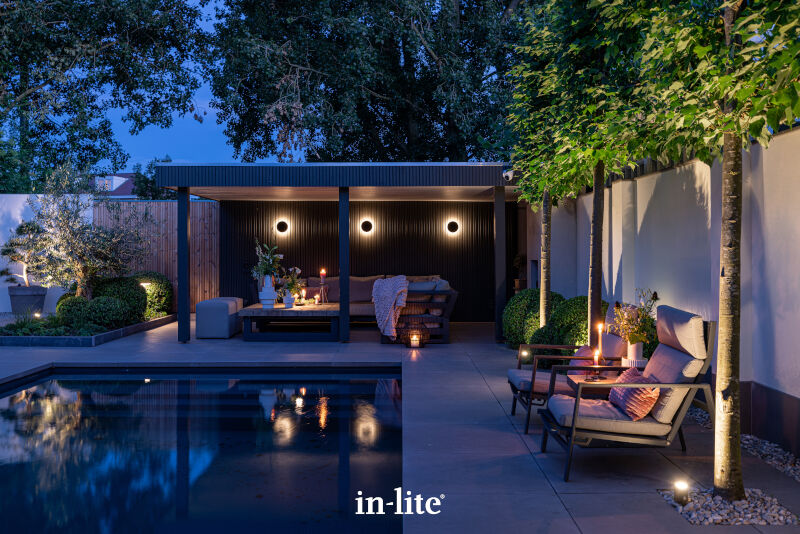

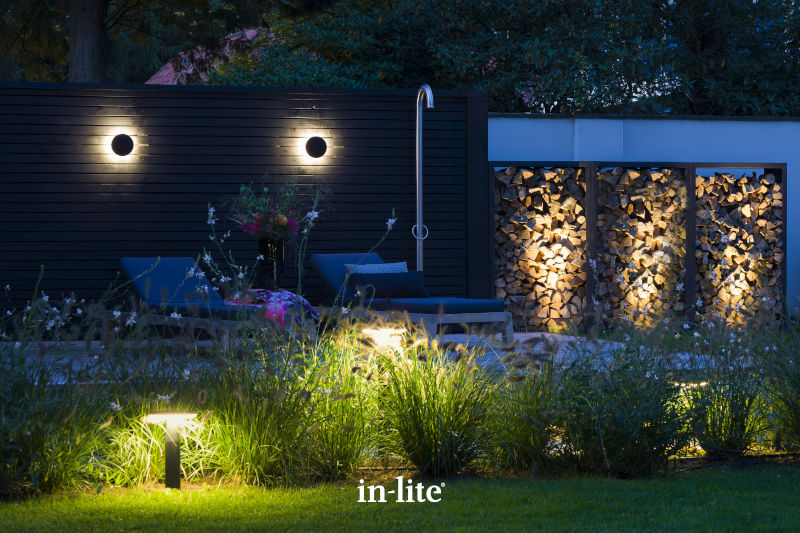

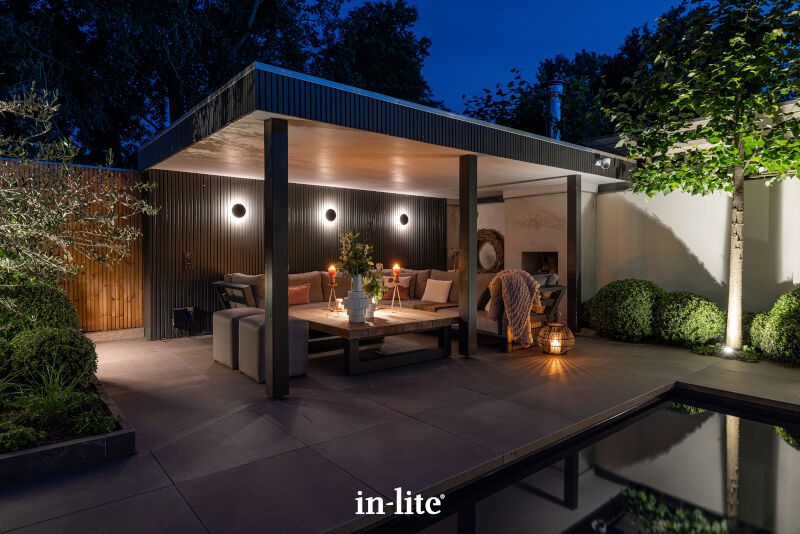

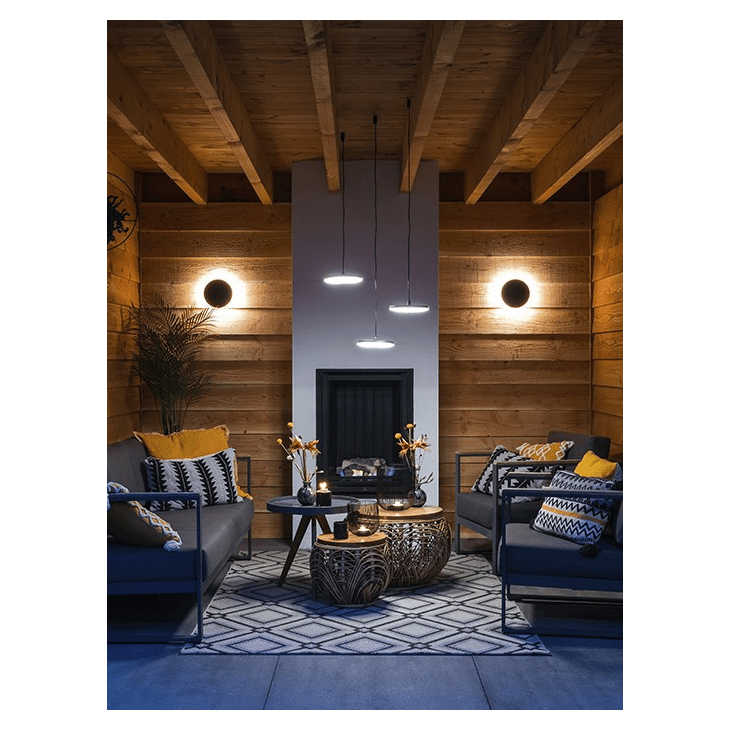

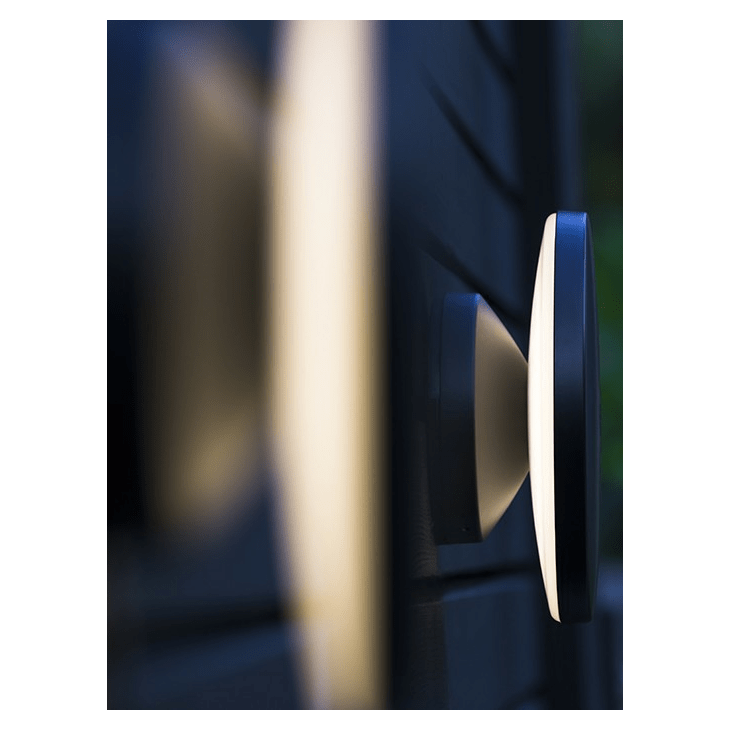

DISC WALL 100-230V is an atmospheric wall luminaire. Part of the DISC concept. The luminaire provides a diffuse light image all around and can be connected to a 230V power point.


  • Gives a diffuse, circumferential light pattern
  • Suitable for mounting on a wall using a 230V power point
  • Dimmable using an LED dimmer (not included, available at better DIY stores)
PRODUCT DETAILS

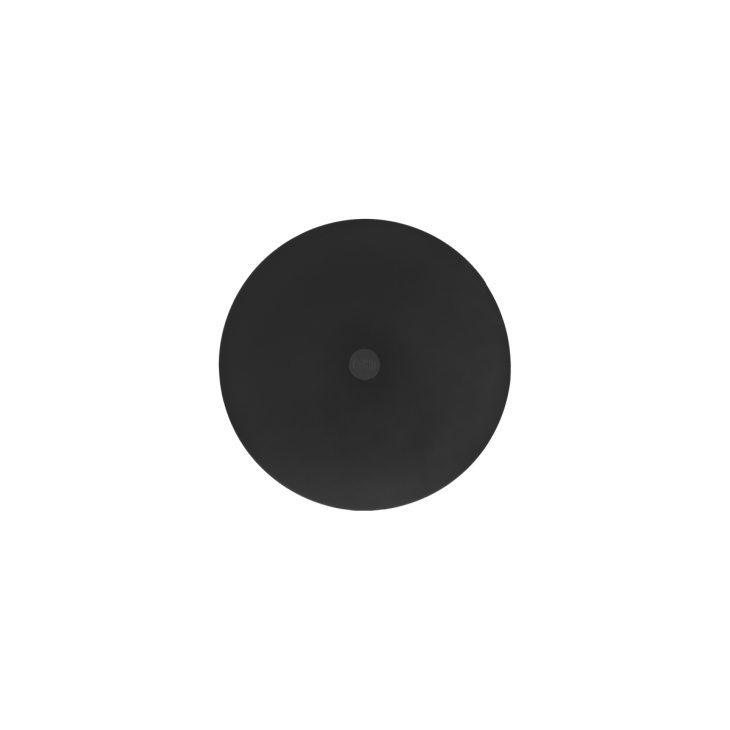

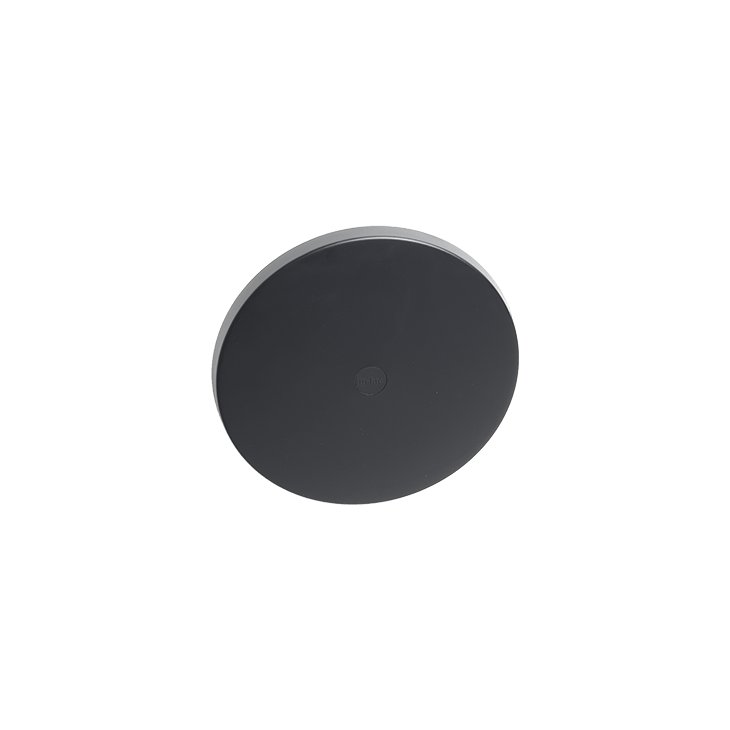

DISC WALL 100-230V is a stylish and contemporary designed wall luminaire of the DISC concept. DISC WALL 100-230V provides an all-round shining diffused light image on walls and partitions.

This luminaire can be connected directly to a 100-230V power point using the supplied 230V LED driver. This fixture can also be dimmed using an LED dimmer (not included).
PRODUCT SPECS

Art. nr. 99090010

Application Canopy, Facade, Fence/wall , House

Mounting depth (inch) 0

CRI 98

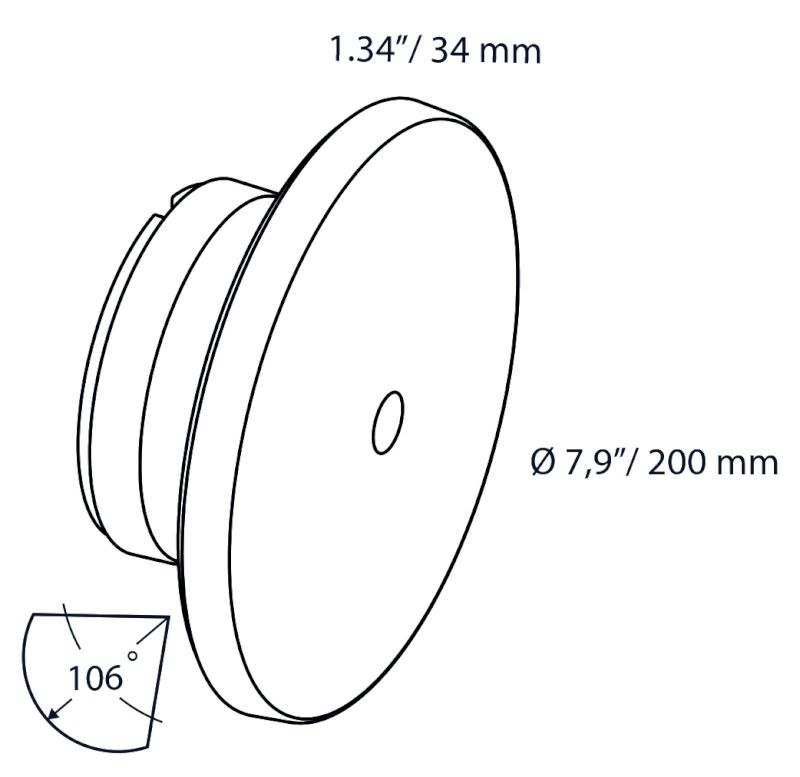

Diameter (inch) 7.9

Diameter (mm) 200

Color Black

Energy label G

Height (inch) 3.1

Height (mm) 80

IP class 55

Light direction All around

Types of Light Diffuse

Efficiency (Lumen/Watt) 55

Net luminous flux (Lumen) 246

Power [W] 4.5

Article group Wall lights

Voltage 230 volt

VA value 4.7

Color temperature 2900

Material finishing/coating FCBV

Kilowatt hour 4

Luminous intensity [Cd] 91.3

Power factor 0.95
INSTALLATION INSTRUCTIONS

DISC WALL 100-230V with DISC BASE is easy to mount on a wall with the included mounting screws and is equipped with a dimmable 100-230V LED driver. An LED dimmer will need to be installed for this (not included).

DISC WALL 100-230V can be perfectly combined with other fixtures from the DISC concept, as well as with PUCK, HALO and other in-lite fixtures in the colour Black or Dark Grey anodised aluminium.

Included in Package

  • PART NO. 5: 1x DISC WALL 100-230V
  • 200 mm Fixture cable
  • PART NO. 5: 1x Driver
  • 3x PART NO. 5: 1x Cable connector
  • PART NO. 5: 4x Screw
  • PART NO. 4: 1x DISC BASE
  • 2x PART NO. 4: 2x Screw
  • PART NO.4: 2x Nylon plug
  • PART NO. 4: Torx wrench
