DISC WALL 100-230V Black with dimmer driver

DISC WALL 100-230V Black with dimmer driver

Become a Partner to view prices
Shipping calculated at checkout.

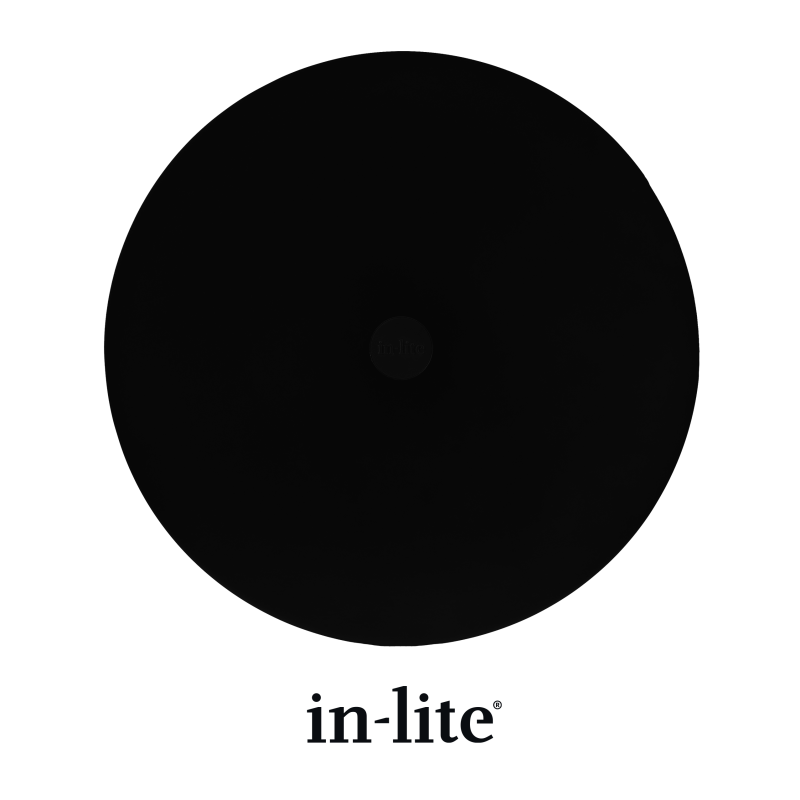

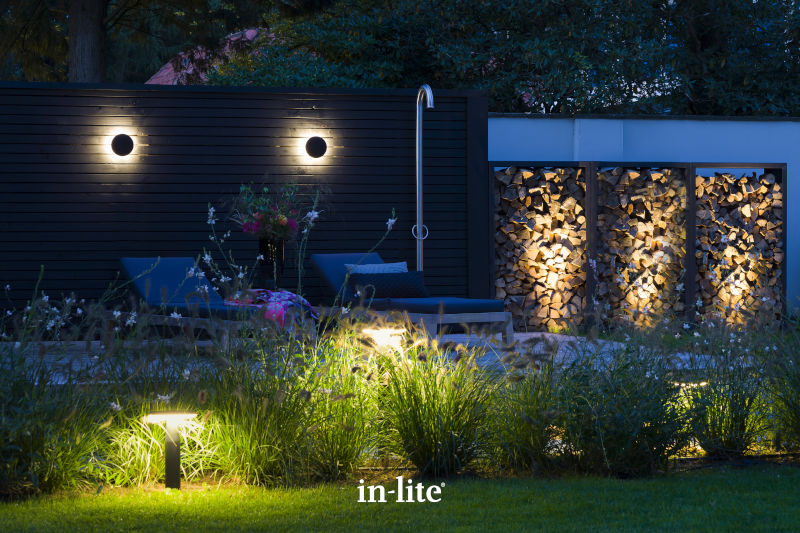

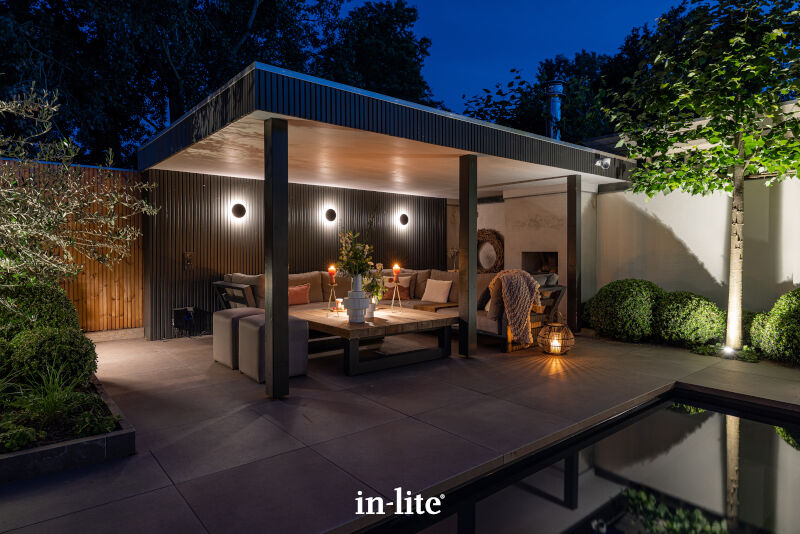

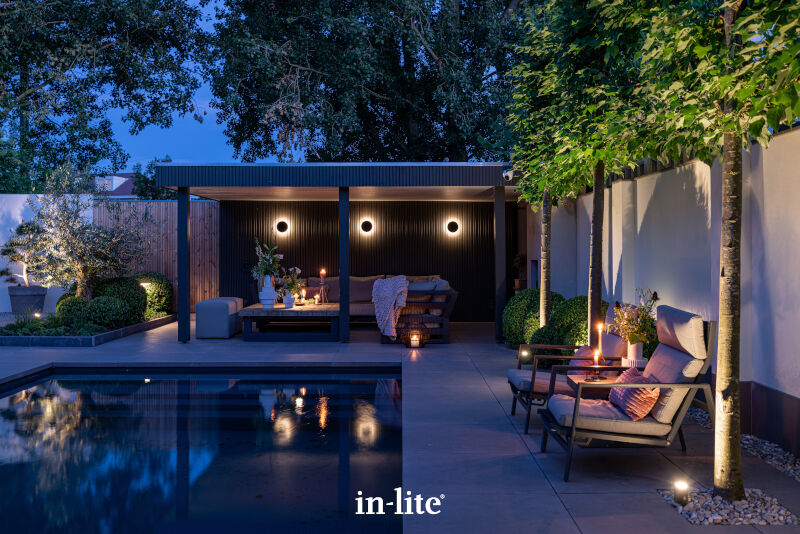

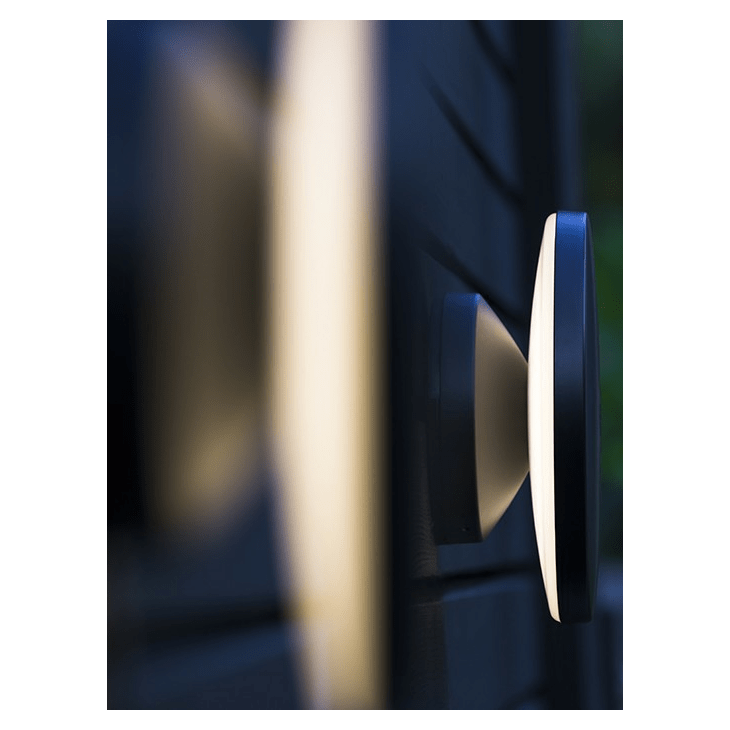

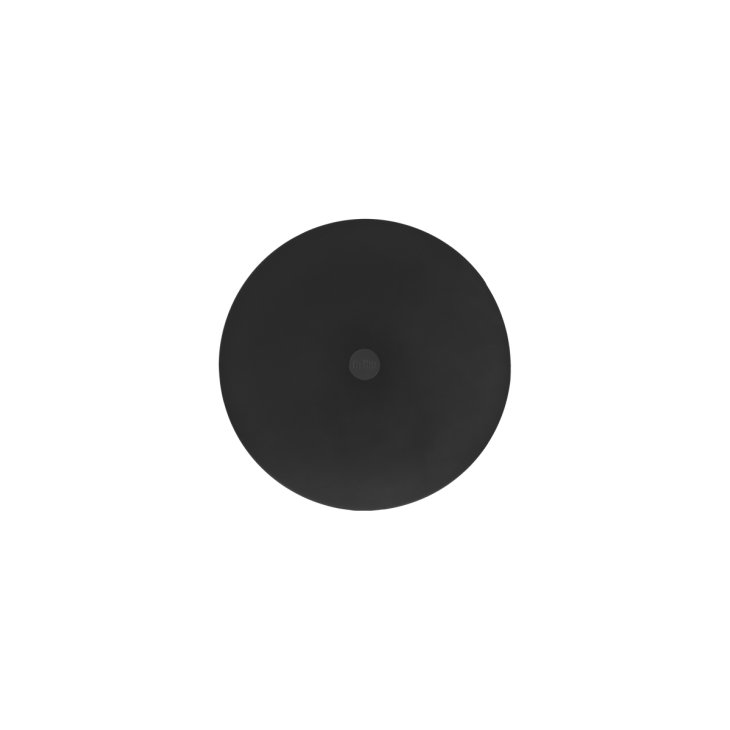

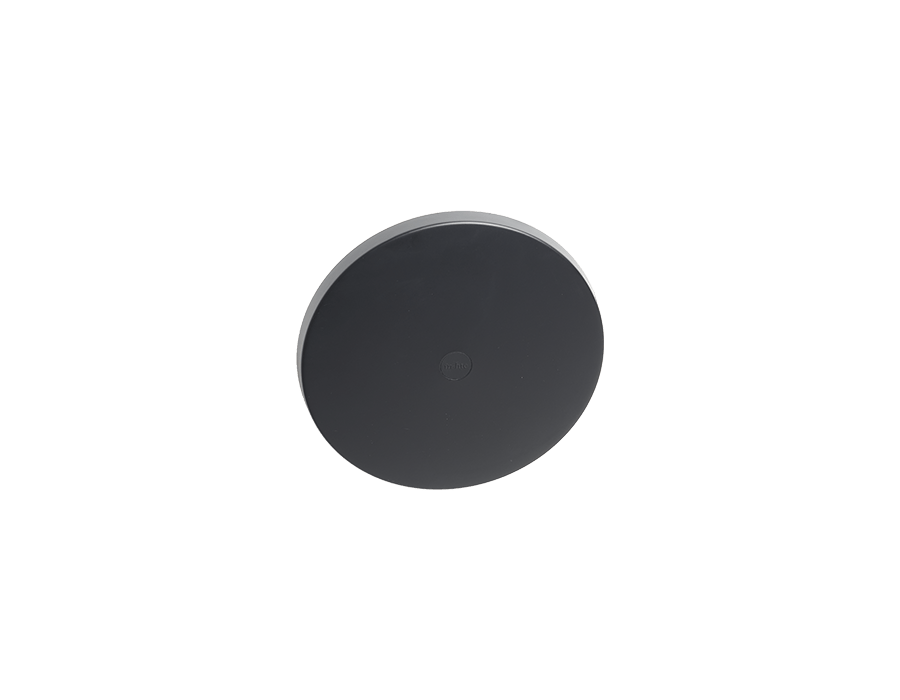

The DISC WALL 100-230V is an attractive wall fixture. The fixture produces a diffuse lighting effect on all sides and can be connected to a 230V power point.
  • The DISC WALL 100-230V produces a diffuse lighting effect on all sides
  • Suitable for installation on a wall using a 230V power outlet
  • Dimmable using an LED dimmer (not included, available at select home improvement centers)
PRODUCT DETAILS

The DISC WALL 100-230V is an attractive wall fixture and essential component for the DISC WALL 100-230V.The DISC WALL 100-230V is a combination of the DISC BASE (article number: 10302700) and DISC WALL 100-230V (article number: 10302710).Ordered items for multi-component products are packaged separately.
PRODUCT SPECS

Art. nr. 99090010

Application Canopy, Facade, Fence/wall , House

Mounting depth (inch) 0

CRI 98

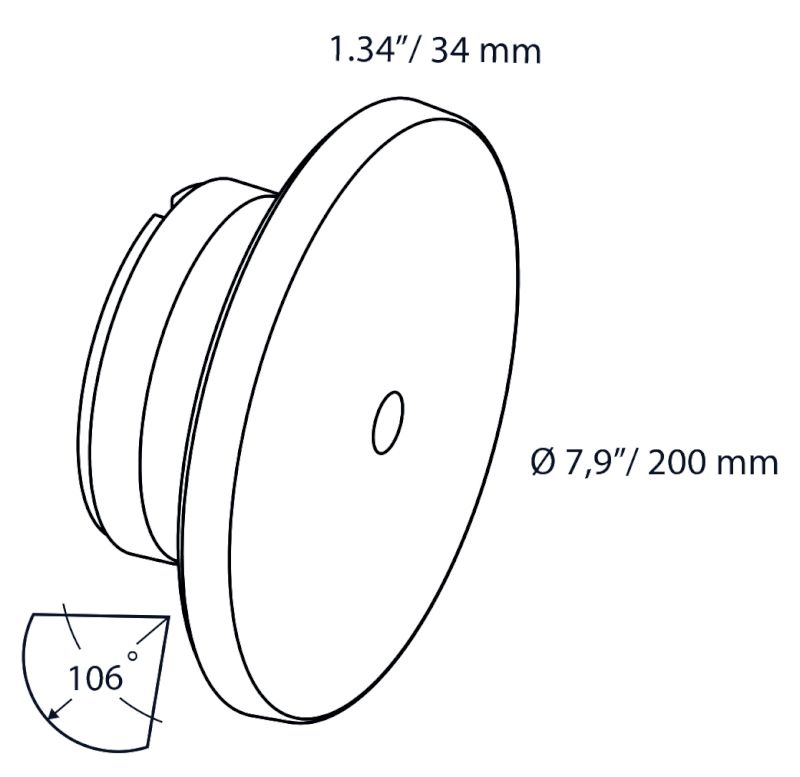

Diameter (inch) 7.9

Diameter (mm) 200

Color Black

Energy label G

Height (inch) 3.1

Height (mm) 80

IP class 55

Light direction All around

Types of Light Diffuse

Efficiency (Lumen/Watt) 55

Net luminous flux (Lumen) 246

Power [W] 4.5

Article group Wall lights

Voltage 230 volt

VA value 4.7

Color temperature 2900

Material finishing/coating FCBV

Kilowatt hour 4

Luminous intensity [Cd] 91.3

Power factor 0.95
INSTALLATION INSTRUCTIONS

The DISC WALL 100-230V can be easily installed on a wall using the DISC BASE and the installation screws provided and is equipped with a dimmable 100-230V LED driver. An LED dimmer (not included) must be installed to use the dimming function. The DISC WALL 100-230V can be easily combined with other fixtures in the DISC concept, as well as the PUCK, HALO and other in-lite fixtures in Black or Dark Grey anodized aluminum.

Included in Package

  • PART NO. 5: 1x DISC WALL 100-230V
  • 200 mm Fixture cable
  • PART NO. 5: 1x Driver
  • 3x PART NO. 5: 1x Cable connector
  • PART NO. 5: 4x Screw
  • PART NO. 4: 1x DISC BASE
  • 2x PART NO. 4: 2x Screw
  • PART NO.4: 2x Nylon plug
  • PART NO. 4: Torx wrench
