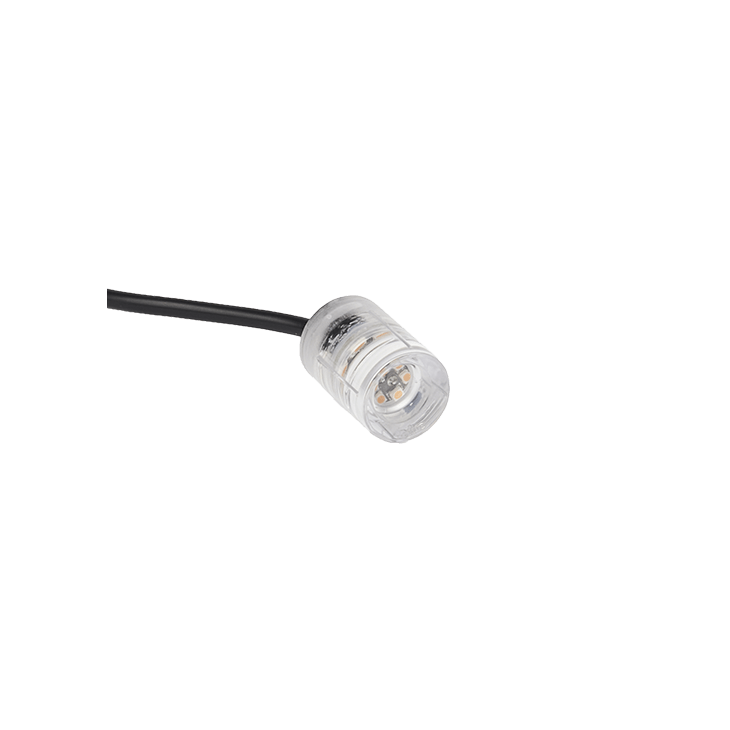

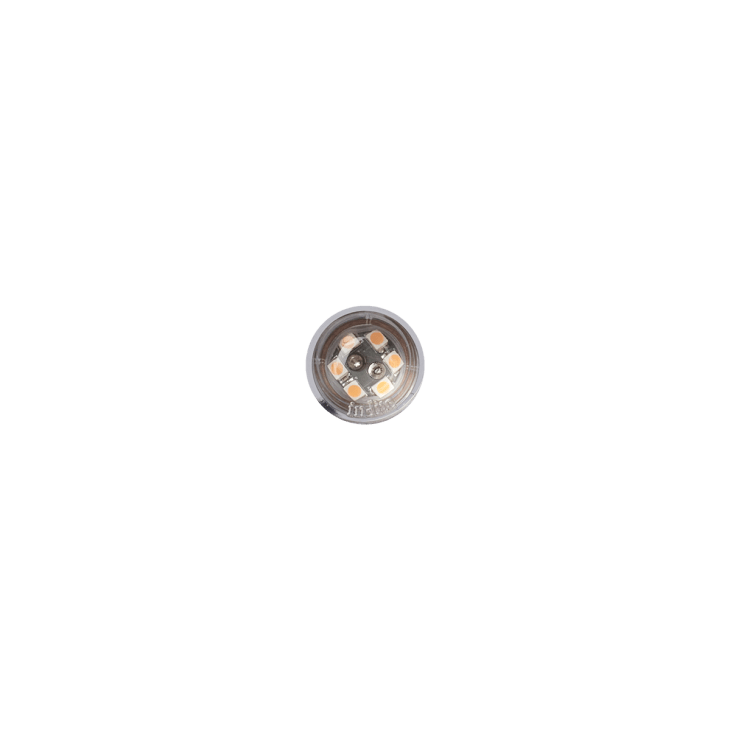

The DB-LED fixture is small, but refined. The subtle point of light is also visible during the day and therefore suitable for use in, for example, stairs and decks.

The EASY-LOCK is supplied as standard with this luminaire. The cable length on this luminaire is 60 cm.

Tip: Think of an extension cable
  • Produces a warm white sparkling, bright light
  • Designed for illuminating the edges of a driveway or deck
  • Drive-over
Installation advice:

A DB-LED every 1½ to 2 meters
PRODUCT DETAILS

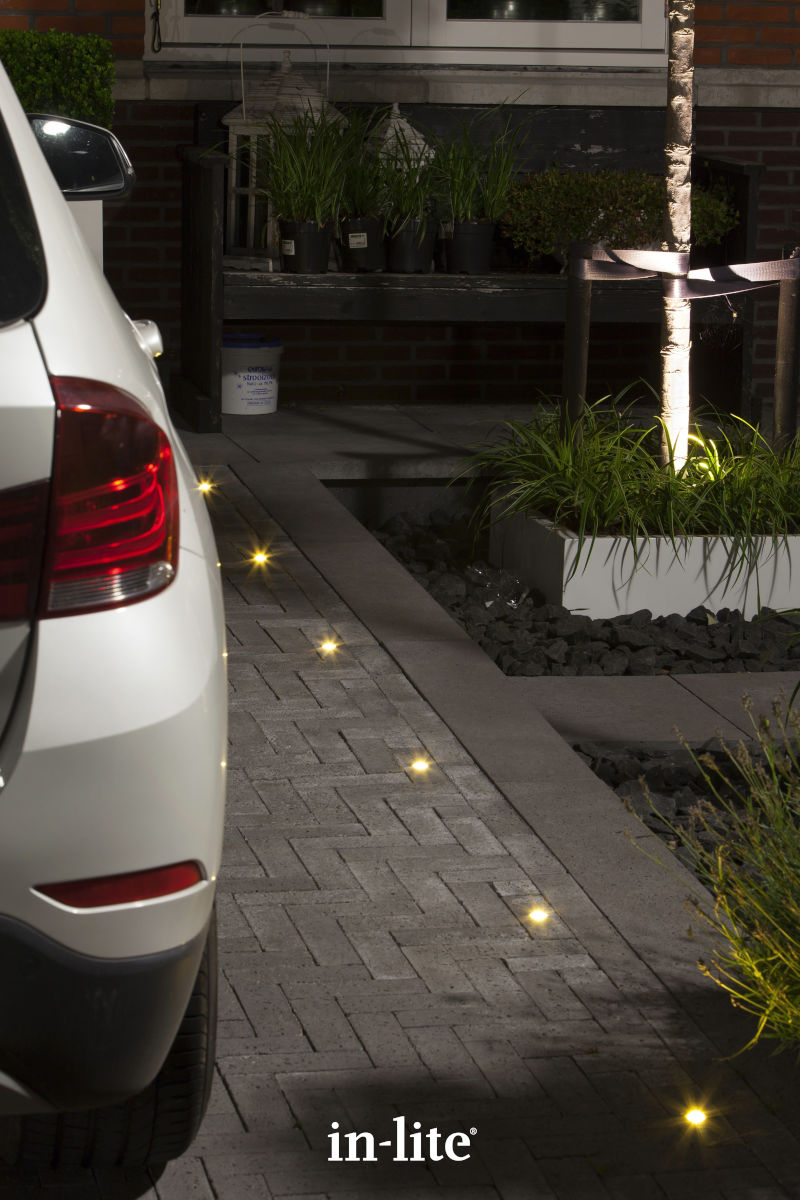

The DB-LED fixture is small, but refined. The subtle point of light is also visible during the day and therefore suitable for use in, for example, stairs and decks. For a special effect, install several spotlights randomly in the path through your yard.
PRODUCT SPECS

Art. nr.: 10102402

Application: Driveway, Path, Stairs

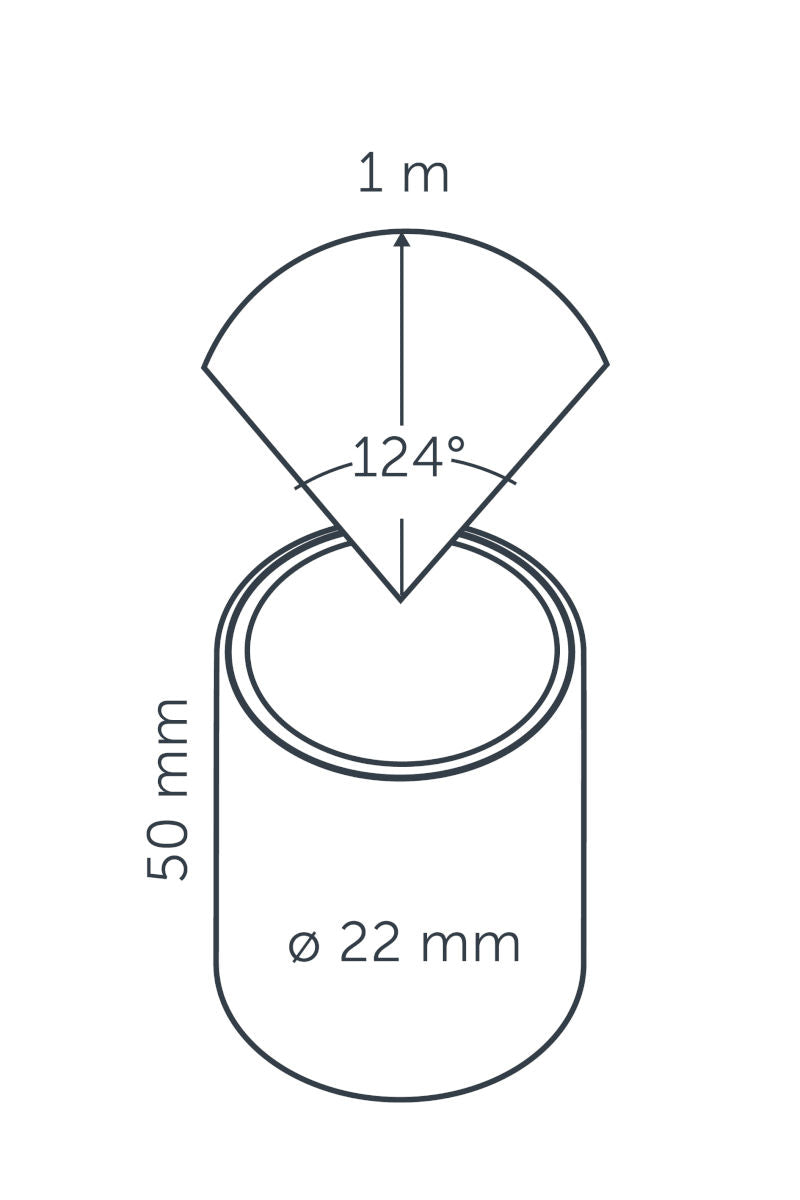

Mounting depth (inch): 1.4961

Recessed depth (mm): 38

CRI: 94

Diameter (inch): 0.8661

Diameter (mm): 22

EAN code: 8717051002366

Energy label: G

Height (inch): 1.2598

Height (mm): 32

IP class: 67

Light direction: Up

Types of Light: Accent

Efficiency (Lumen/Watt): 50

Net luminous flux (Lumen): 25

Power [W]: 0.5

Processing: Concrete, Natural stone, Wood

Article group: Recessed lights

Voltage: 12 volt

VA value: 0.5

Color temperature: 2850

Luminous intensity [Cd]: 6.4

Power factor: 1
INSTALLATION INSTRUCTIONS

This ground light is installed in a 22.4 mm diameter hole in wood (wood drill) or stone (cooled diamond-tipped drill). A dealer or gardener can do this for you. Note: to avoid problems with the electronics, only install the fixture in a hole that has been drilled straight and in the correct size. Watch the instructional videos on the installation tips page for information on installing the in-lite system.

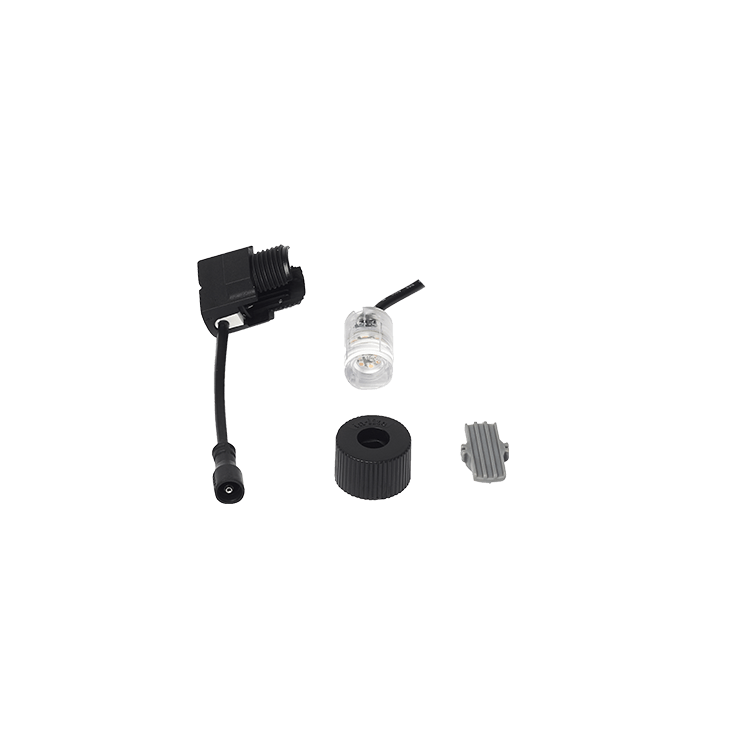

Included in Package

  • 1x EASY LOCK
  • 60 cm Fixture cable
