BIG SCOPE

BIG SCOPE

Become a Partner to view prices
Skip to product information
BIG SCOPE

BIG SCOPE

Become a Partner to view prices
Shipping calculated at checkout.

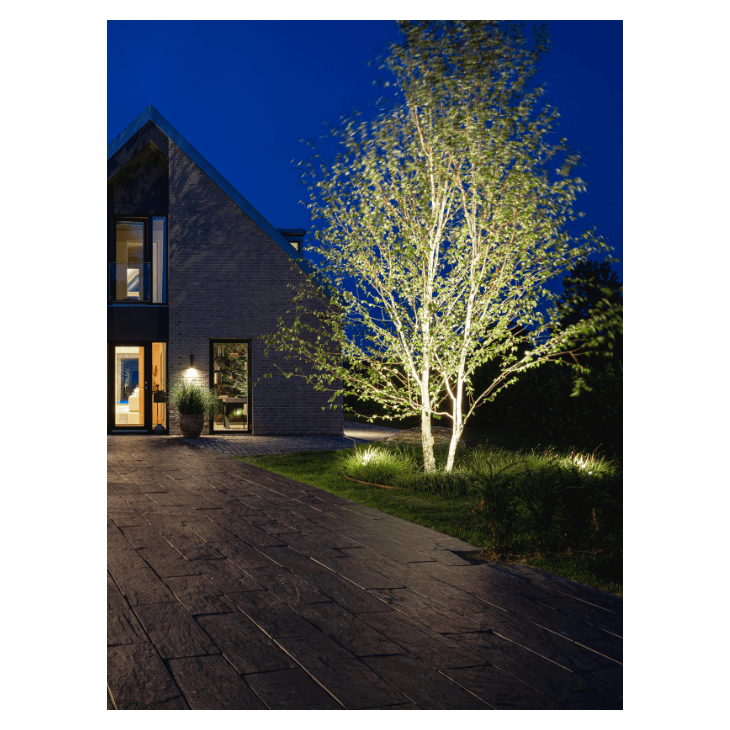

BIG SCOPE is used for lighting trees up to about 6 metres high with a wide crown. BIG SCOPE is distinguished by a wide beam.

Use accessory RISER or BRACE to raise the light source above the planting. Use the KILLFLASH or SHIELD accessory to prevent viewing of the light source.

The EASY-LOCK is supplied as standard with this luminaire. The cable length on this fixture is 60cm.
  • Provides a wide beam of light
  • Designed for illuminating trees up to 6 meters
  • Height adjustable with accessories
Installation advice:

2 BIG SCOPE several meters away from the trunk, aimed at the top

PRODUCT DETAILS

BIG SCOPE is used for lighting trees up to about 6 metre tall with a wide crown. BIG SCOPE is distinguished by a wide beam. Do you have plants under the tree? Then use the RISER or BRACE accessory to raise the light source above the plants.

PRODUCT SPECS

Art. nr.: 10401002

Application: Facade, Hedge, House, Tree

Mounting depth (inch): 0

Recessed depth (mm): 0

CRI: 91

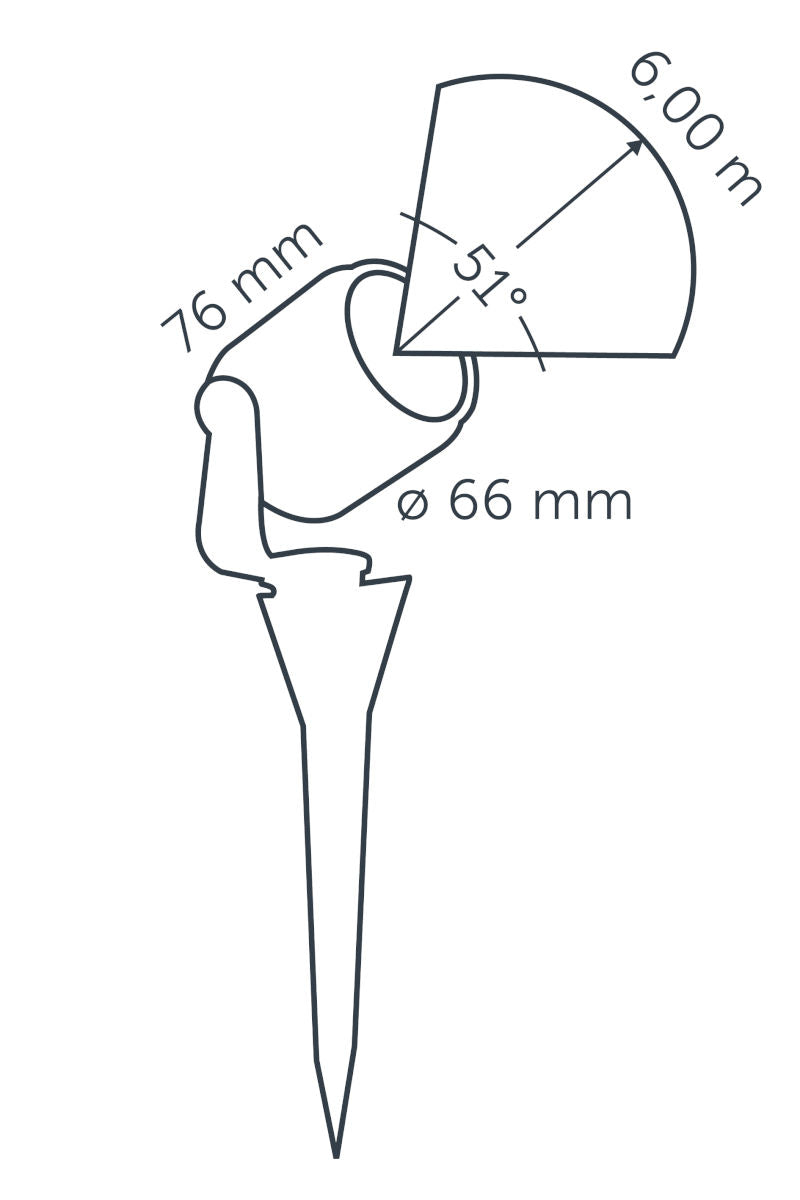

Diameter (inch): 2.5984

Diameter (mm): 66

EAN code: 8717051004520

Energy label: F

Height (inch): 2.9921

Height (mm): 76

IP class: 67

Light direction: Adjustable

Types of Light: Accent

Efficiency (Lumen/Watt): 84

Net luminous flux (Lumen): 422

Power [W]: 5

Processing: Grass, Gravel, Soil, Wood

Article group: Spotlights

Voltage: 12 volt

VA value: 8

Color temperature: 3100

Luminous intensity [Cd]: 490

Power factor: .63

INSTALLATION INSTRUCTIONS

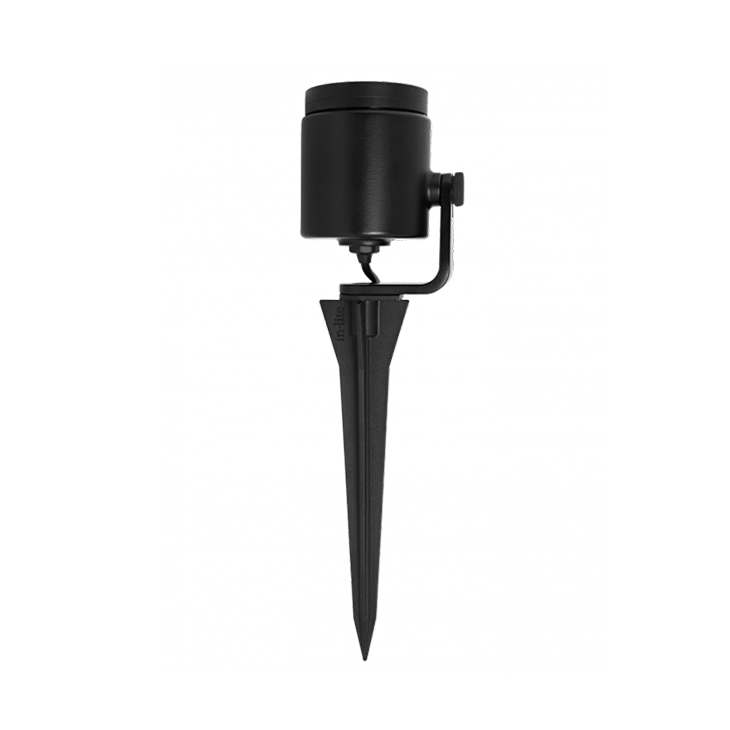

Place BIG SCOPE in soft ground using the supplied ground stake. Still want a hard surface? You can! Secure the luminaire with the bracket.

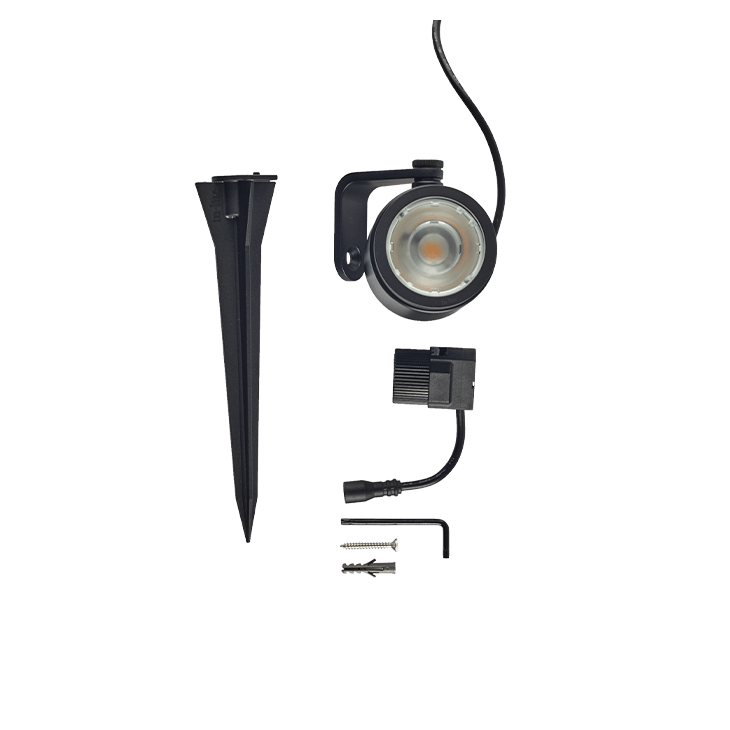

Included in Package

  • 1x EASY LOCK
  • 60 cm Fixture cable
  • Ground pin
  • 1x Nylon plug
  • 1x Screw
  • 1x Torx wrench
  • 1x Cable plug
