BIG FLUX

BIG FLUX

Become a Partner to view prices
Shipping calculated at checkout.

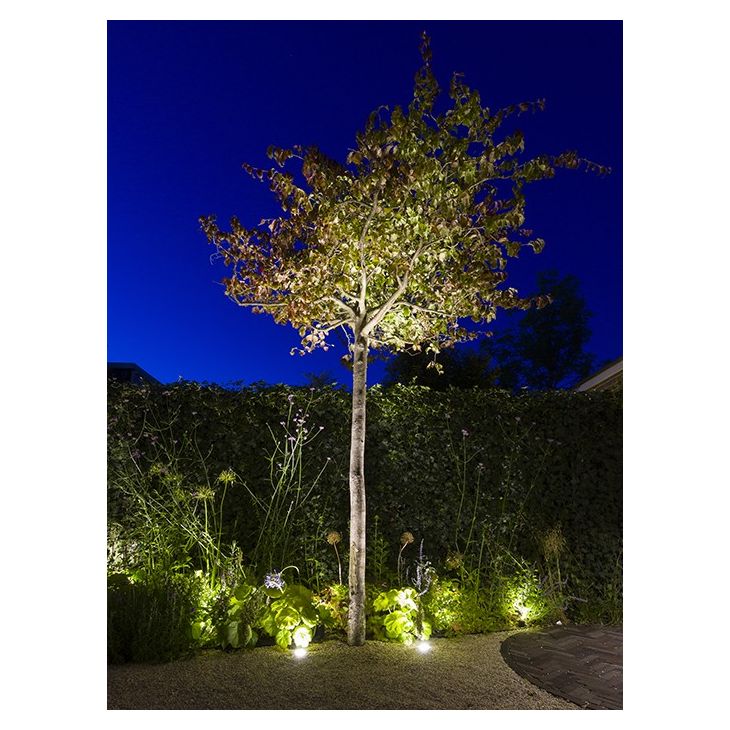

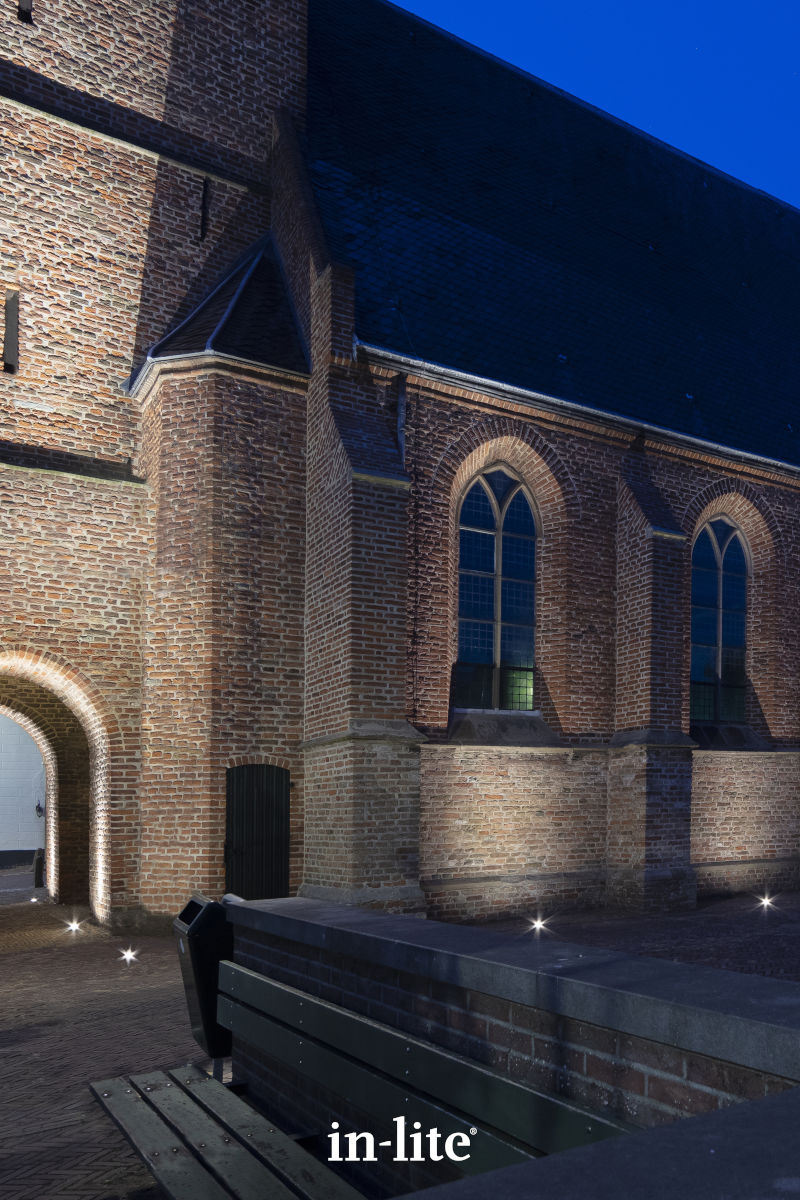

BIG FLUX Black is the best choice for lighting tall multi-trunked trees incorporated into decks, for example, or for lighting wide facades from the pavement.

The EASY-LOCK comes standard with this fixture. The cable length to this fixture is 60cm.

TIP: Consider an extension cable

ADD RING 68
  • Provides powerful, bundled light
  • Suitable for illuminating tall elements up to 7.5 metres
  • Surmountable
Installation advice:

A BIG FLUX every 2 to 2.5 metres
PRODUCT DETAILS

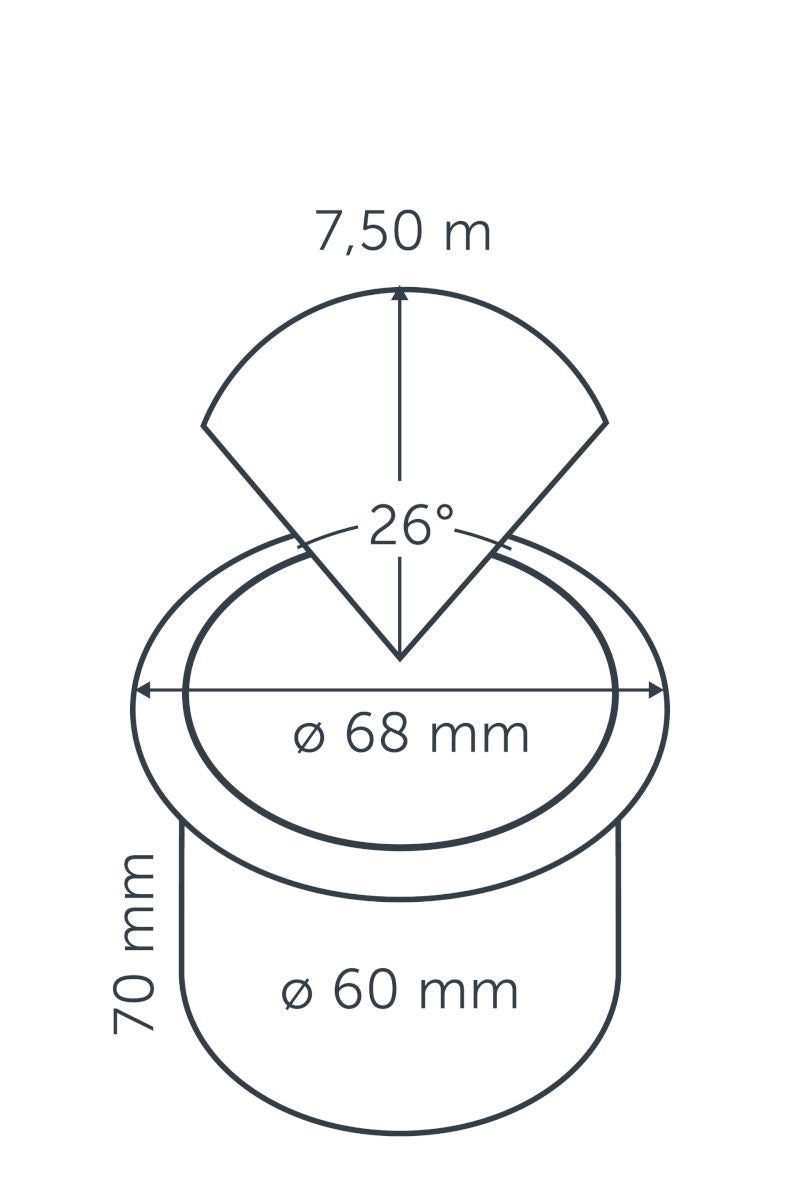

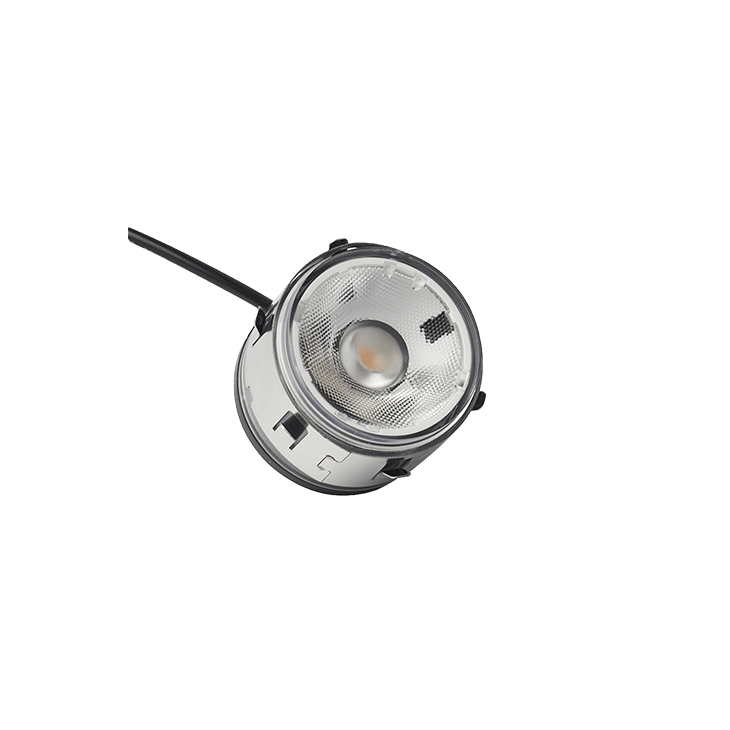

BIG FLUX produces a lighting angle of 26 degrees and a lighting range of 7.5 metres high. This makes the BIG FLUX the best choice for illuminating tall multi-trunked trees incorporated in decking, for example, or for lighting wide facades from the pavement.

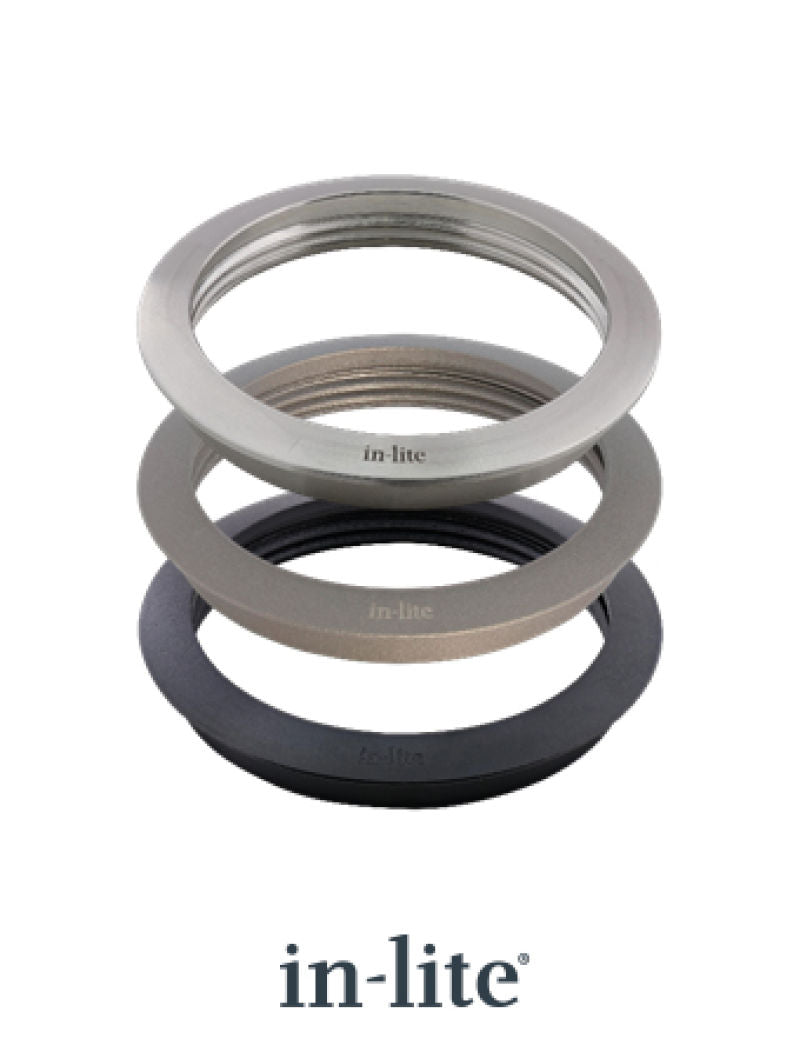

This luminaire consists of BIG FLUX and RING 68 Stainless Steel. The ring is made of high-quality anodised aluminium.

The BIG FLUX can be perfectly combined with accessory SPIKE. With this ground stake, you easily place the BIG FLUX in a loose substrate such as earth, gravel or grass. BIG FLUX is also suitable for use in accessory BOX-1.
PRODUCT SPECS

Art. nr. 10103210

Application Facade, Hedge, House, Tree

Mounting depth (inch) 2.7559

Recessed depth (mm) 70

CRI 93

Diameter (inch) 2.6772

Diameter (mm) 68

EAN code 8717051004568

Energy label F

Height (inch) 2.5197

Height (mm) 64

IP class 67

Light direction Upward adjustment

Types of Light Accent

Efficiency (Lumen/Watt) 91

Net luminous flux (Lumen) 272

Power [W] 3

Processing Concrete, Grass, Gravel, Natural stone, Wood

Article group Recessed lights

Voltage 12 volt

VA value 4.2

Color temperature 3100

Luminous intensity [Cd] 852

Power factor 0.71
INSTALLATION INSTRUCTIONS

You install this ground spotlight in a hole in wood (using a wood drill) or stone (using a cooled diamond drill) with a diameter of 60,8 mm. An in-lite dealer or gardener can take care of this. Please note, only install the fixture in a straight drilled hole of the correct size to ensure the spotlight is clamped properly without damaging the housing of the ground spotlight.

BIG FLUX is fitted with a stainless steel cup. The cup is a stainless steel ring with spring-loaded tabs, allowing easy and tension-free mounting. The cup is pushed into the hole; a hammer is not required. Thanks to the springy tabs, the spot is always properly clamped. Also, the spot is now easy to remove without damage. The cup comes standard with the BIG FLUX and is not available separately.

If you want to work BIG FLUX into a loose substrate such as earth, gravel or grass, this is possible in combination with accessory SPIKE. Place the BIG FLUX in SPIKE and prick it into the ground.

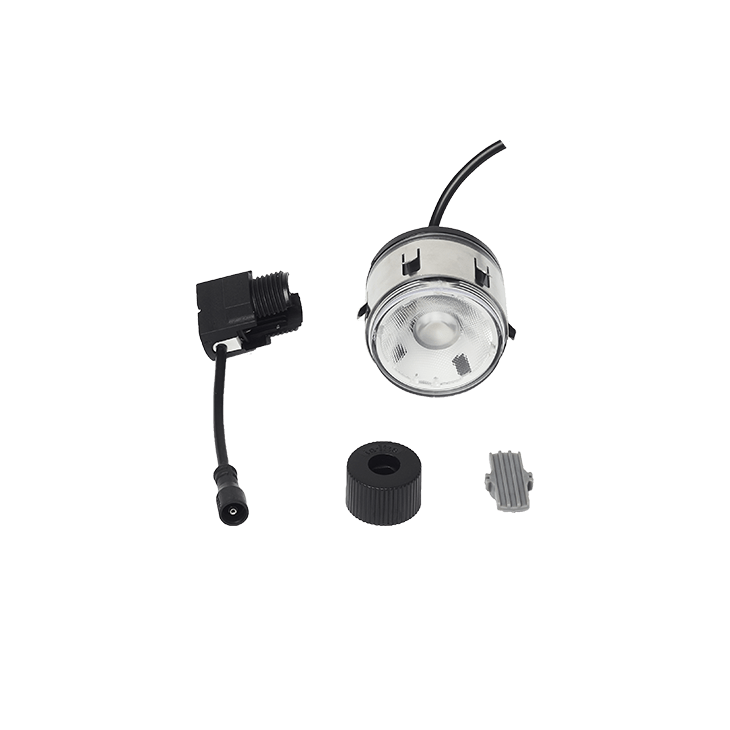

Included in Package

  • 1x EASY LOCK
  • 60 cm Fixture cable
