The BIG FLUX NARROW ground spot is the best choice for lighting narrow tall elements.

The EASY-LOCK is included as standard with this luminaire. The cable length on this fixture is 60cm.

TIP: Consider an extension cable
  • Provides a powerful and narrow focused light
  • Suitable for illuminating tall elements up to 11 meters
  • Crossable
Installation advice:

Every 2 to 2.5 meters a BIG FLUX NARROW
PRODUCT DETAILS

BIG FLUX NARROW, with its 13-degree angle of illumination and 11-metre light range, is ideally suited for illuminating narrow tall elements.

BIG FLUX NARROW can be perfectly combined with the SPIKE accessory. With this ground stake, you easily place the ground spotlight in a loose substrate such as earth, gravel or grass.

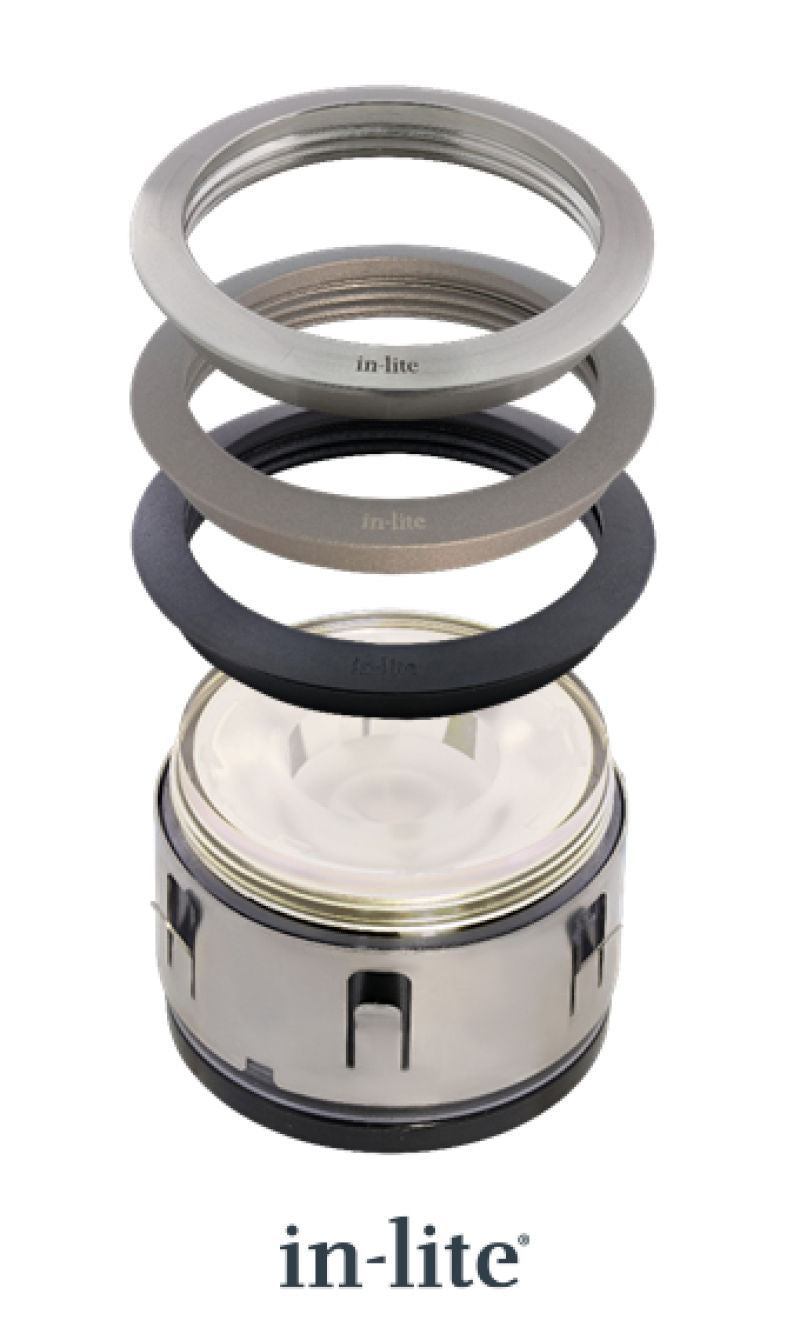

This luminaire consists of BIG FLUX NARROW and RING 68 Stainless Steel. The ring is made of high-quality anodised aluminium. BIG FLUX NARROW is also suitable for incorporation into accessory BOX-1.
PRODUCT SPECS

Art. nr. 99040000

Mounting depth (inch) 2.8

Recessed depth (mm) 70

Diameter (inch) 2.7

Diameter (mm) 68

Color Black

Energy label F

Height (inch) 2.5

Height (mm) 64

Efficiency (Lumen/Watt) 89

Net luminous flux (Lumen) 266

Power [W] 3

Article group Recessed lights

Voltage 12 volt, 21V

VA value 4.2

Color temperature 3100

Material finishing/coating Anodized

Kilowatt hour 3

Luminous intensity [Cd] 1848.6

Power factor 0.71
INSTALLATION INSTRUCTIONS

You install this ground spotlight in a hole in wood (using a wood drill) or stone (using a cooled diamond drill) with a diameter of 60,8 mm. An in-lite dealer or gardener can take care of this. Please note, only install the fixture in a straight drilled hole of the correct size to ensure the spotlight is clamped properly without damaging the housing of the ground spotlight.

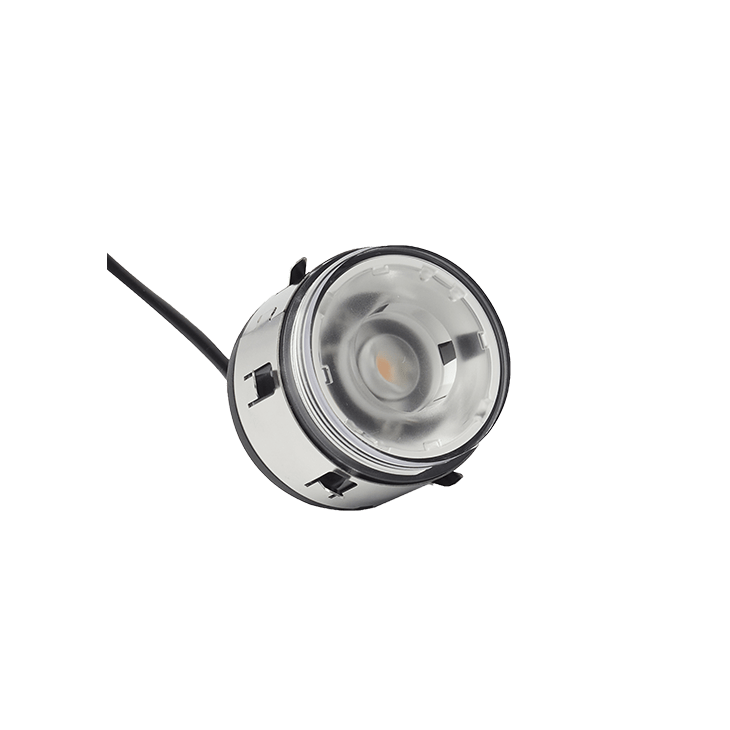

BIG FLUX NARROW is fitted with a stainless steel cup. The cup is a stainless steel ring with spring-loaded tabs, allowing easy and tension-free mounting. The cup is pushed into the hole, no hammer is needed. Thanks to the springy tabs, the spot is always properly clamped. Also, the spot is now easy to remove without damage. The cup comes standard with the BIG FLUX NARROW and is not available separately. If you want to incorporate BIG FLUX NARROW into a loose substrate such as earth, gravel or grass, this is possible in combination with accessory SPIKE. Place BIG FLUX NARROW in a SPIKE and prick it into the ground.

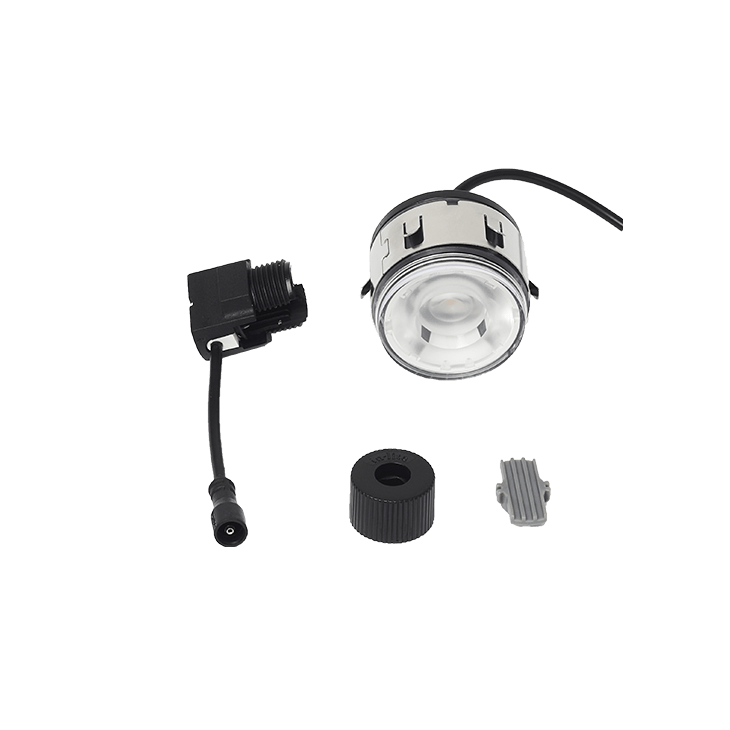

Included in Package

  • 1x EASY LOCK
  • 60 cm Fixture cable
  • Ring 68 Stainless Steel
