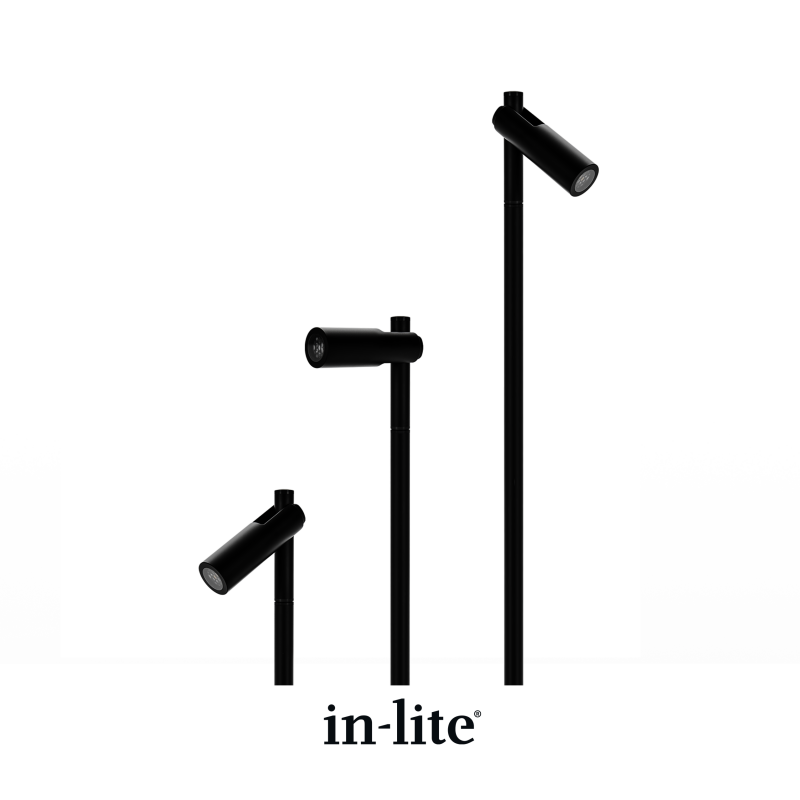

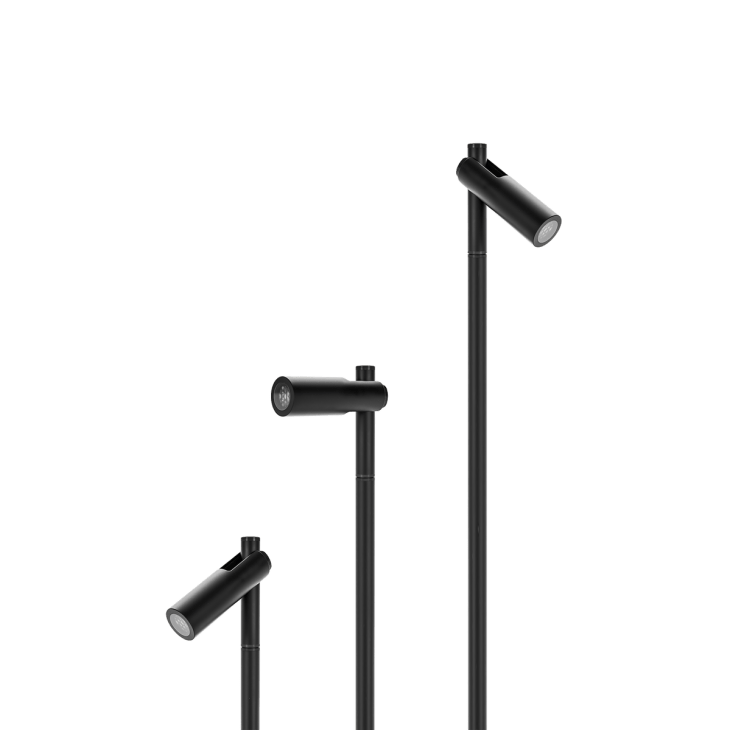

AIM is available in three different heights: 80 cm, 40 cm and 16 cm. Perfect for illuminating plantings in borders and paths. This luminaire contains 1 light sources with a light range of 3.5m.

Thanks to the patented modular connection, AIM is easy to expand from one to three light sources. This unique connection also makes it possible to rotate the light sources infinitely 360°. Thus, the light can be set in any direction. The light sources have a built-in KILLFLASH that prevents glare from the light.

Also available with 2 (AIM DUO) or 3 (AIM TRIPLE) light sources.
  • Built-in KILLFLASH
  • Patented waterproof connection
  • Modular construction up to three light sources
COLOUR
Height
PRODUCT DETAILS

The AIM concept consists of two unique lighting fixtures, AIM and AIM CEILING. You have a choice of ceiling-mounted or spotlight in various heights. Both are available with 1, 2 or 3 light sources. The spotlight is available in 80 cm, 40 cm and 16 cm.

Each light source from AIM features a built-in KILLFLASH, so the light does not glare. Please note that the killflash is not removable.
PRODUCT SPECS

Art. nr. 10401360

Application Border, Driveway, Path

CRI 90

Diameter (inch) 1.1024

Diameter (mm) 28

EAN code 8717051006609

Energy label G

Height (inch) 31.4961

Height (mm) 800

IP class 55

Light direction Adjustable

Types of Light Direct

Efficiency (Lumen/Watt) 70

Net luminous flux (Lumen) 84

Power [W] 1.2

Processing Grass, Gravel, Soil

Article group Spotlights

Voltage 12 volt

VA value 2.1

Color temperature 3000

Material finishing/coating Anodized

Kilowatt hour 1

Luminous intensity [Cd] 157.7

Power factor 0,56
INSTALLATION INSTRUCTIONS

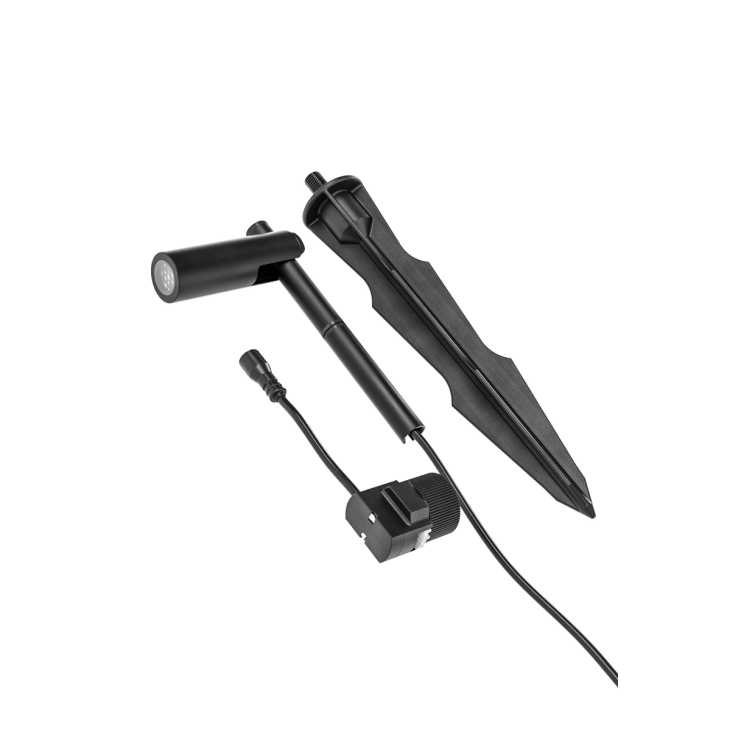

Twist the supplied soil pin under the AIM. This is then easily pricked into loose soil. Connect the luminaire with the EASY-LOCK and ready! To add additional light sources, see the manual.

- AIM EXTRA LOW is suitable for illuminating plants in a pot about 1.5 cm high. Place several AIM EXTRA LOW throughout for best results.

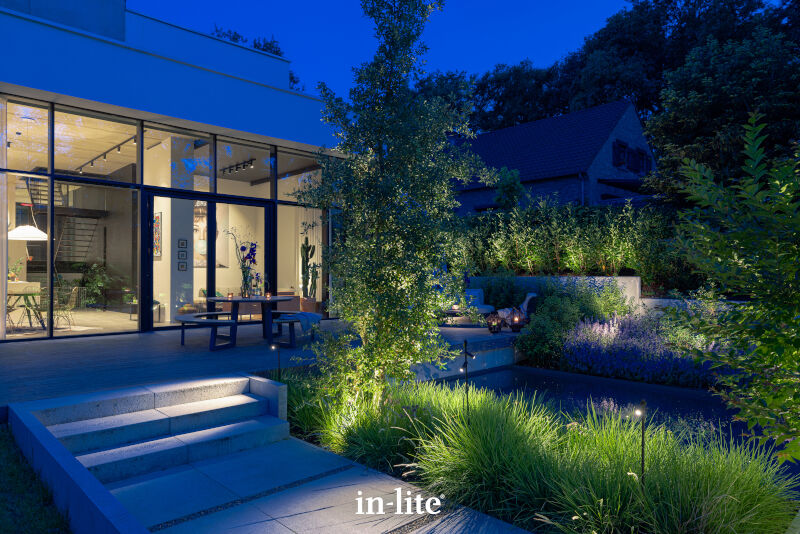

- AIM and AIM LOW suitable for illuminating paths and borders. Place an AIM every 2m to 4m, depending on the total length of the path/boundary.
- AIM CEILING suitable for illuminating sitting and dining areas and outdoor kitchens from walls and ceilings.

Included in Package
