Easily dim your 12V wall, ceiling and pendant lights? You can with the TOUCH DIMMER. The connected outdoor lighting is dimmable in five settings. The fittings you connect to the TOUCH DIMMER can be operated separately from the rest of the garden. You do not need a SMART system for this dimmer. It is also possible to extend up to 4 metres. Read more in the installation advice.
  • All 12 V wall, ceiling and pendant lamps can be dimmed
  • Dimming up to three outdoor lights simultaneously
  • No Smart system required
Installation advice:

Use SPLITTER or TRIPLE SPLITTER to connect multiple fixtures.
PRODUCT DETAILS

Want to effortlessly adjust the intensity of your wall, ceiling and pendant lights? Then discover TOUCH DIMMER. This handy accessory lets you dim each outdoor lamp individually and choose from five different settings. Best of all? You don't need a SMART system for the TOUCH DIMMER, putting ease of operation at your fingertips.

Up to three outdoor lights can be connected to the dimmer. This by using the TRIPLE SPLITTER.

TOUCH DIMMER can only be used when there is power on the line.
PRODUCT SPECS

Art. nr.: 10500750

Application: Canopy, Facade, Fence/wall , House

Diameter (inch): 3.8976

Diameter (mm): 99

EAN code: 8717051006500

Height (inch): 1.2598

Height (mm): 32

Article group: Related products
INSTALLATION INSTRUCTIONS

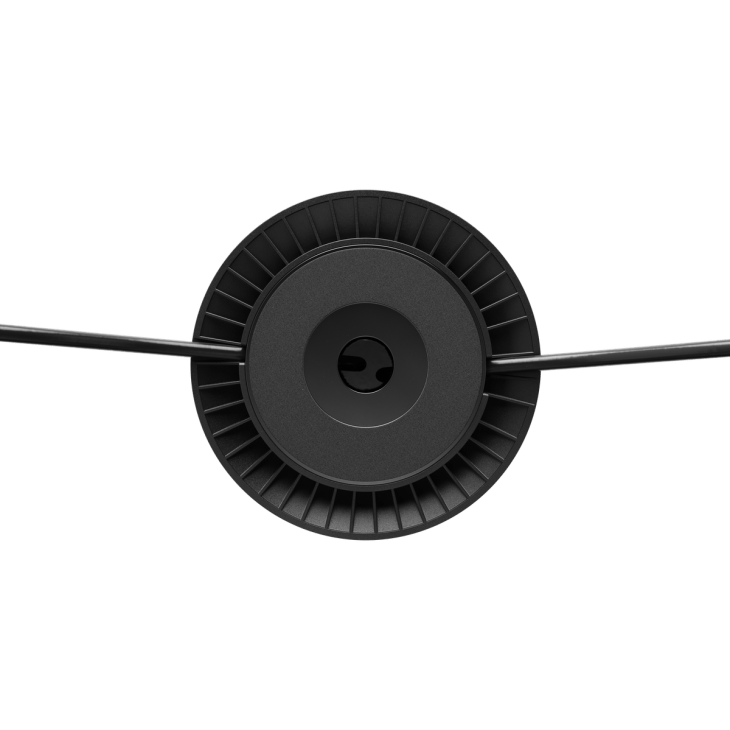

To properly use TOUCH DIMMER, place the accessory between the EASY-LOCK and the outdoor light to be dimmed. The TOUCH DIMMER is easily fixed to the wall with the back plate and a screw. You then click the TOUCH DIMMER onto the back plate. When the blue light is on, the accessory has been installed correctly.

Use SPLITTER or TRIPLE SPLITTER to connect multiple luminaires. With a max of 3 fixtures.

It is possible to extend 4 metres between EASY-LOCK and TOUCH DIMMER and between TOUCH DIMMER and the luminaires.

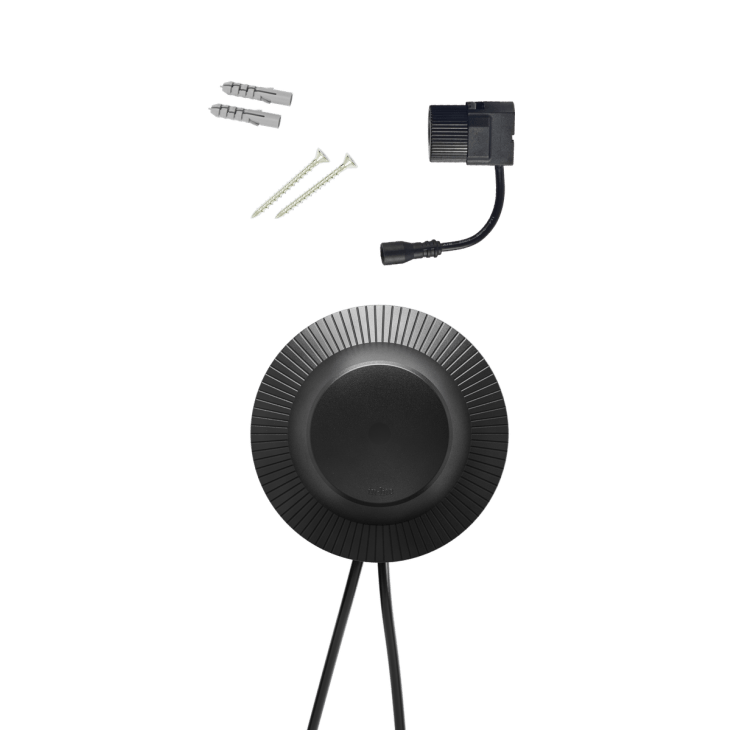

Included in Package

  • TOUCH DIMMER
  • 2x plugs
  • 2x screws
