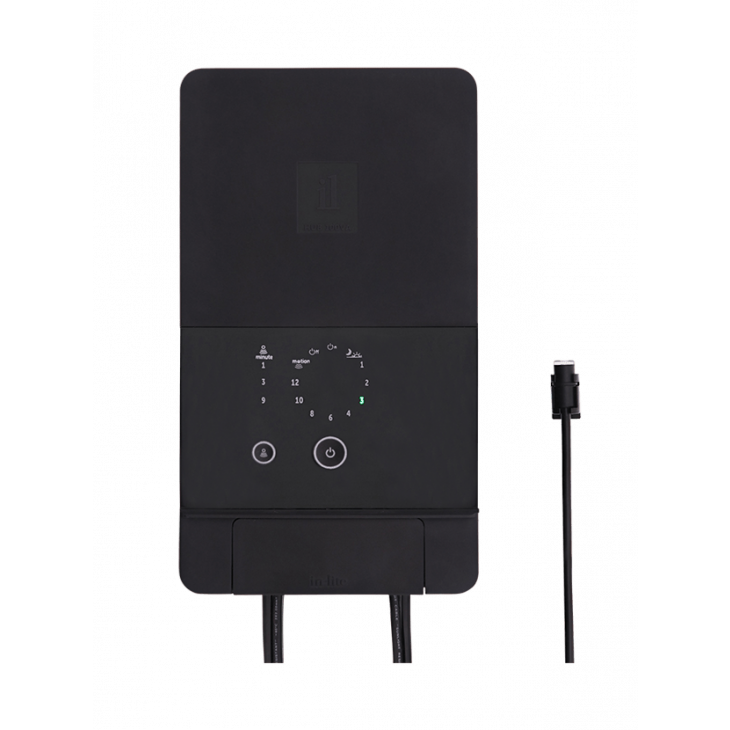

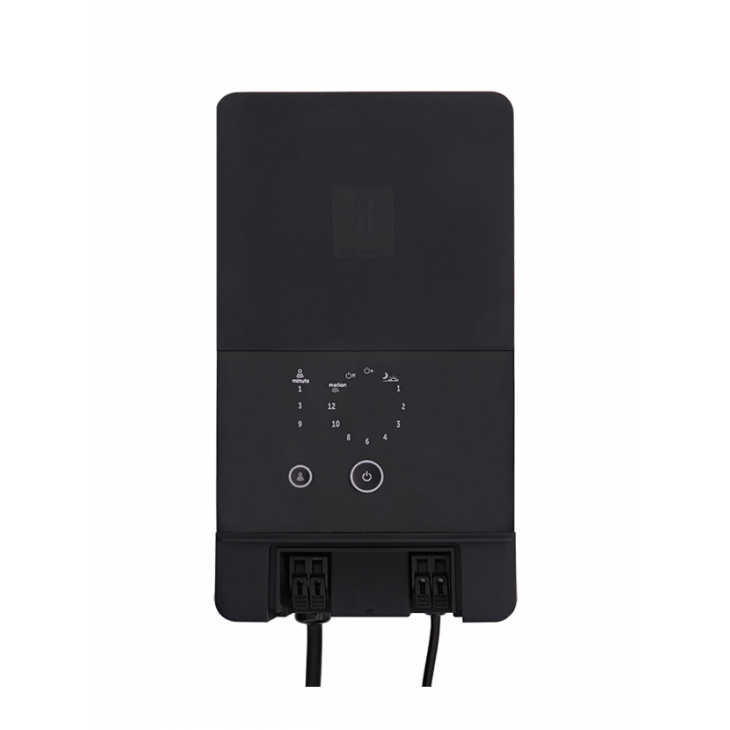

A high-quality transformer with touchscreen operation, equipped with two jointly controllable lines.
  • Fitted with a touchscreen
  • 2 cable outlets and a light sensor
  • Expandable with motion detector
Installation advice:

Install where it is not exposed to rain or snowfall
PRODUCT DETAILS

A high-quality transformer with touchscreen operation equipped with two jointly controllable lines.
Equipped with the following features:

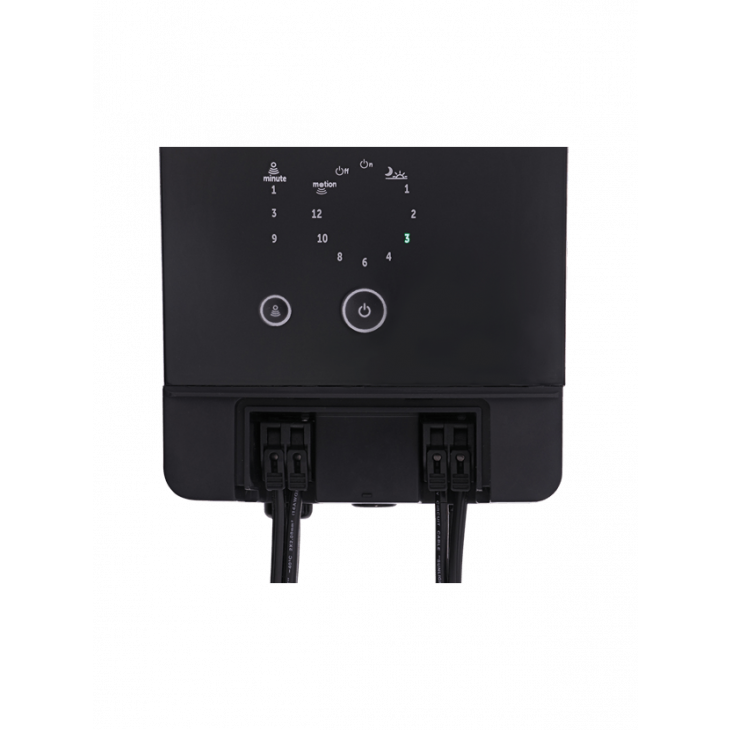

Simple touchscreen operation
Two jointly controllable line inputs
Manual on/off
Switching by means of supplied light sensor combined with a timer
Equipped with light signal to detect and prevent overloading or faulty installation, for example

The motion detector MOVE can be connected as a separately available accessory. The lighting automatically switches on either 1, 3 or 9 minutes upon motion detection.

With the HUB series you choose an innovative and innovative product, made of high-quality materials with optimal safety. The HUB PROTECTOR extends the life of the HUB. We emphasize that all HUBs should always be mounted covered in a place free of precipitation. Install free of precipitation. If it is not possible to install the HUB indoors or under a roof, we recommend installing the HUB PROTECTOR.
PRODUCT SPECS

Art. nr.: 10500402

EAN code: 8717051004353

Height (inch): 2.6378

Height (mm): 67

IP class: 23

Length (inch): 8.8583

Length (mm): 225

Power [W]: 50

Article group: Transformers

Voltage: 230 volt

VA value: 50

Width (inch): 4.9213

Width (mm): 125
INSTALLATION INSTRUCTIONS

Install vertically using the screws provided. The transformer can be mounted on a wall both inside and outside. When installed outside, the transformer must be at least 50 cm from the ground. See the manual for detailed instructions. For instructions on installing our system and fixtures, watch the instruction videos on the Installation Tips page. Follow the installation instructions: We devote considerable attention to the quality of our products and it is important to us that you can enjoy your lighting without any worries. That is why we offer a five-year warranty on all of our fixtures and transformers, provided that the installation instructions have been followed correctly.
